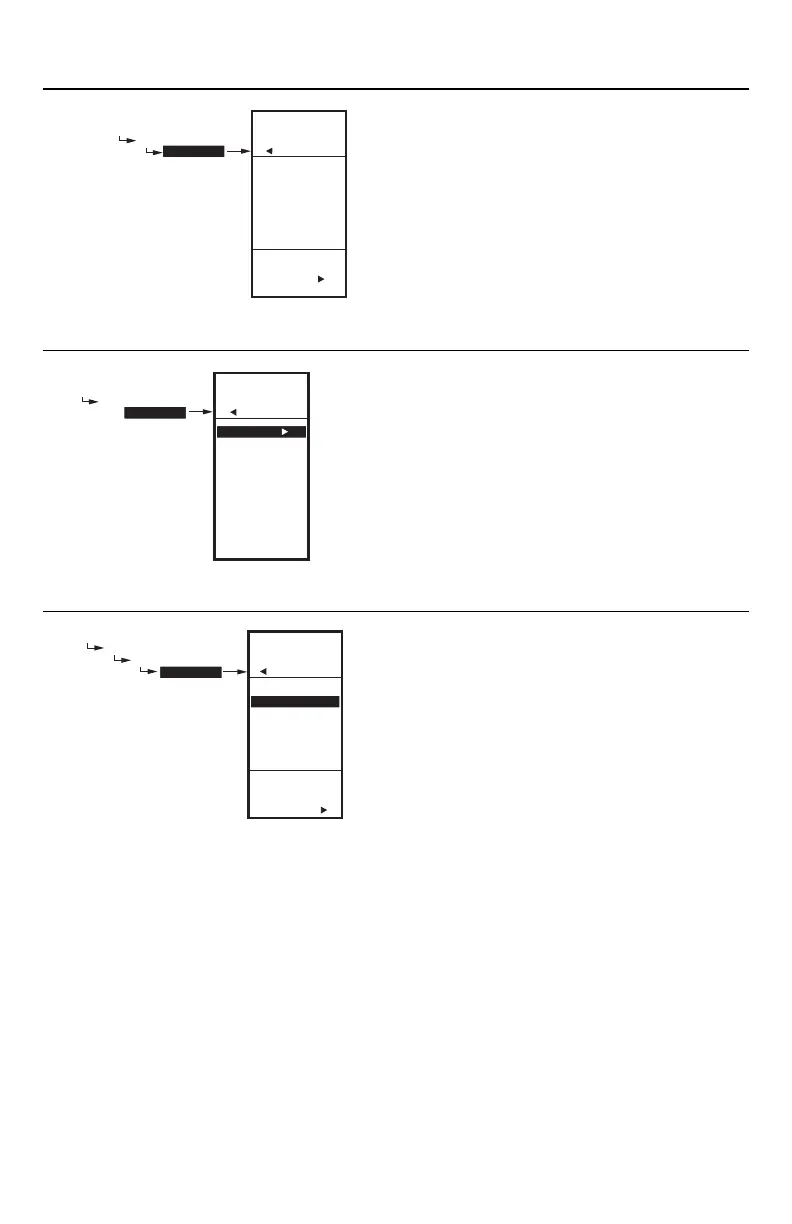

Fig. 29. Setup - Sensors - Number of Sensors.
1.3.2. Number of LOOPS
The value entered here determines the number of loops
displayed on the home screen.
1. From the Outputs menu, highlight # LOOPS then
press the  button to display the number of loops.
2. Use the  and  buttons to enter the number of
loops (1 or 2).
Default: 1
3. Press the  button to accept the value and display
the Outputs menu.
Fig. 30. Setup - Outputs - Options Menu.
1.3.3. OPTIONS
1. From the Outputs menu, use the and  buttons
to highlight OPTIONS.
2. Press the  button to display the Options menu.
Fig. 31. Setup - Outputs - Options - Schedule.
1.3.3.1. USE SCHED
1. Press the  button to display the schedule selec-
tions.
2. Use the and  buttons to highlight YES or NO.
Default: NO
3. Press the  button to accept the value and display
the MIN OFF option.
Selecting NO disables scheduling for all outputs.
Selecting YES enables scheduling for the setpoint.
However, each individual output can be removed from
scheduling as desired.
With Scheduling enabled, when you return to Program
mode, the new option for Scheduling displays. You can
press the HOME button and then the MENU button to
view the Schedule options in the menu.
SETUP
OUTPUTS
# LOOPS
ENTER
NUMBER OF
LOOPS
SETUP
OUTPUTS
# LOOPS
2
M24438
SETUP
OUTPUTS
OPTIONS
SETUP
OUTPUTS
OPTIONS
USE SCHED
MIN OFF
MIN ON
DI OPTS
SHOW RT
SYNC
EXIT
M24520A
SETUP
OUTPUTS
OPTIONS
USE SCHED
SETUP
OUTPUTS
OPTIONS
USE SCHED
USE
SCHEDULE
FOR
OUTPUTS
YES
NO
M24440
