T775P SERIES 2000 ELECTRONIC STAND-ALONE CONTROLLER
62-0256—11 22

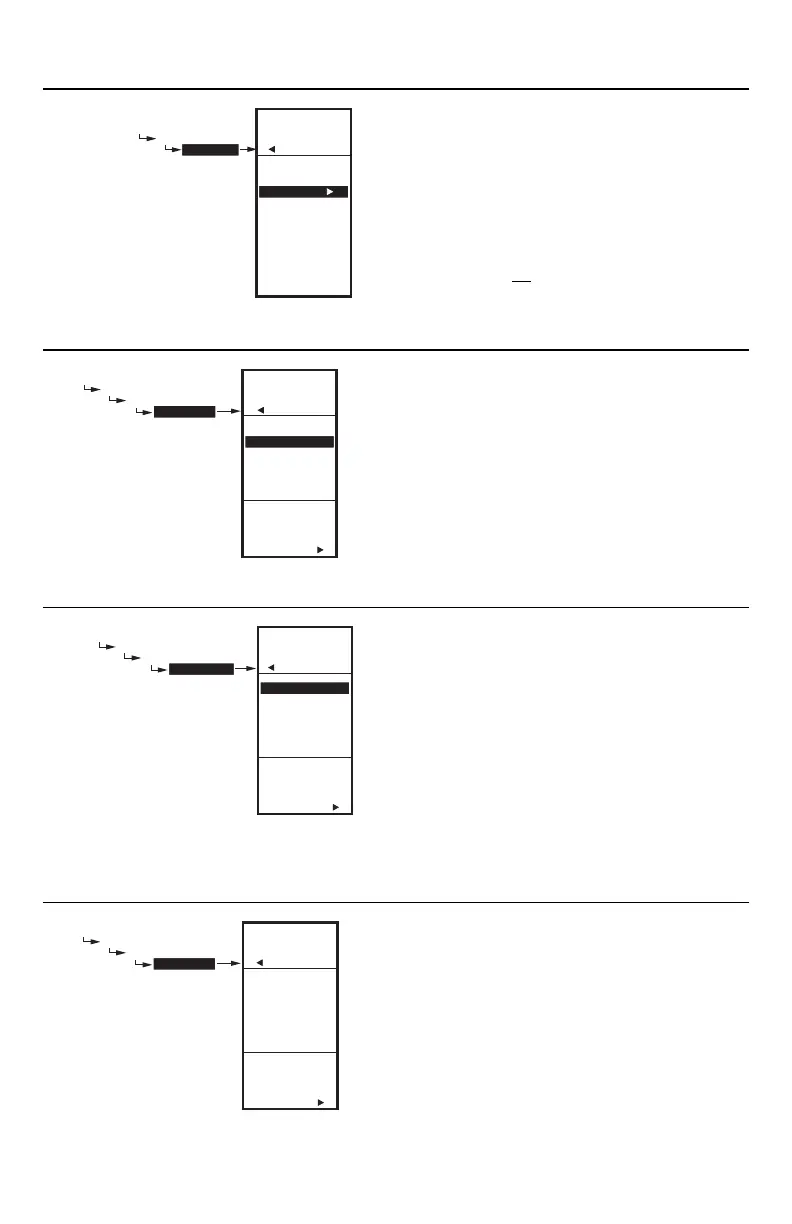

Fig. 49. Setup Pump Output Options.
1.3.7. Pump Output Options
The Pump Output options display on the Stage/Pump
menu once you enable the pump output.
RESET RT displays only if “SHOW RT = YES” is selected
during Output Options setup (see Fig. 41).
If PUMP OUT=YES, then EXERCISE and CONTNUOUS
display.
If CONTNUOUS=YES (default), then PREPURGE and
POSTPURGE do not
display.
Fig. 50. Setup Pump - Exercise.
1.3.7.1. EXERCISE
1. From the Stage/Pump menu, use the  and 
buttons to select EXERCISE.
2. Press the  button to display the Exercise option.
3. Use the  and  buttons to select YES or NO.
Default: NO
4. Press the  button to accept the value and display
the Stage/Pump menu.
If Exercise is selected and there is no pump activity, the
controller energizes the pump output for 15 seconds every
48 hours.
Fig. 51. Setup Pump - Continuous.
1.3.7.2. CONTNUOUS
1. From the Stage/Pump menu, use the  and 
buttons to select CONTNUOUS.
2. Press the  button to display the Continuous
option.
3. Use the  and  buttons to select YES or NO.
Default: YES
4. Press the  button to accept the value.
When CONTNUOUS=YES, the pump runs continuously
regardless of whether any stages are energized or not.
The pump shuts down only if the outside temperature
exceeds the WWSD temperature setting.
If CONTNUOUS=NO is selected, then PREPURGE and
POSTPURGE display on the Pump Out Options sub-
menu (seeFig. 49).
Fig. 52. Setup Pump - Prepurge.
1.3.7.3. PREPURGE
1. From the Stage/Pump menu, use the  and 
buttons to select PREPURGE.
2. Press the  button to display the prepurge time.
3. Use the  and  buttons to increase/decrease the
prepurge time.
Default: 0 (zero) seconds
Range: -300 to 300 seconds
4. Press the  button to accept the value and display
the Stage/Pump menu.
NOTE: A positive Prepurge time causes the pump to
energize before the first stage energizes. A
negative time causes the pump to energize
after the first stage energizes.
SETUP
OUTPUTS
STG4/PUMP
PUMP OUT
EXERCISE
CONTNUOUS
PREPURGE
POSTPURGE
RESET RT
EXIT
M24676A
SETUP
OUTPUTS
STG4/PUMP
SETUP
OUTPUTS
STG4/PUMP
EXERCISE
M24677
YES
NO
EXERCISE
PUMP FOR
STG4/PUMP
SETUP
OUTPUTS
STG4/PUMP
EXERCISE
SETUP
OUTPUTS
STG4/PUMP
CONTNUOUS
M28659
YES
NO
CONTNUOUS
RUN FOR
STG4/PUMP
SETUP
OUTPUTS
STG4/PUMP
CONTNUOUS
ENTER
PUMP PRE-
PURGE TIME
FOR
STG4/PUMP
SETUP
OUTPUTS
STG4/PUMP
PREPURGE
M24678
0
SEC
SETUP
OUTPUTS
STG4/PUMP
PREPURGE
