Honeywell T775P2003 Installation Instructions

T775P SERIES 2000 ELECTRONIC STAND-ALONE CONTROLLER
29 62-0256—11

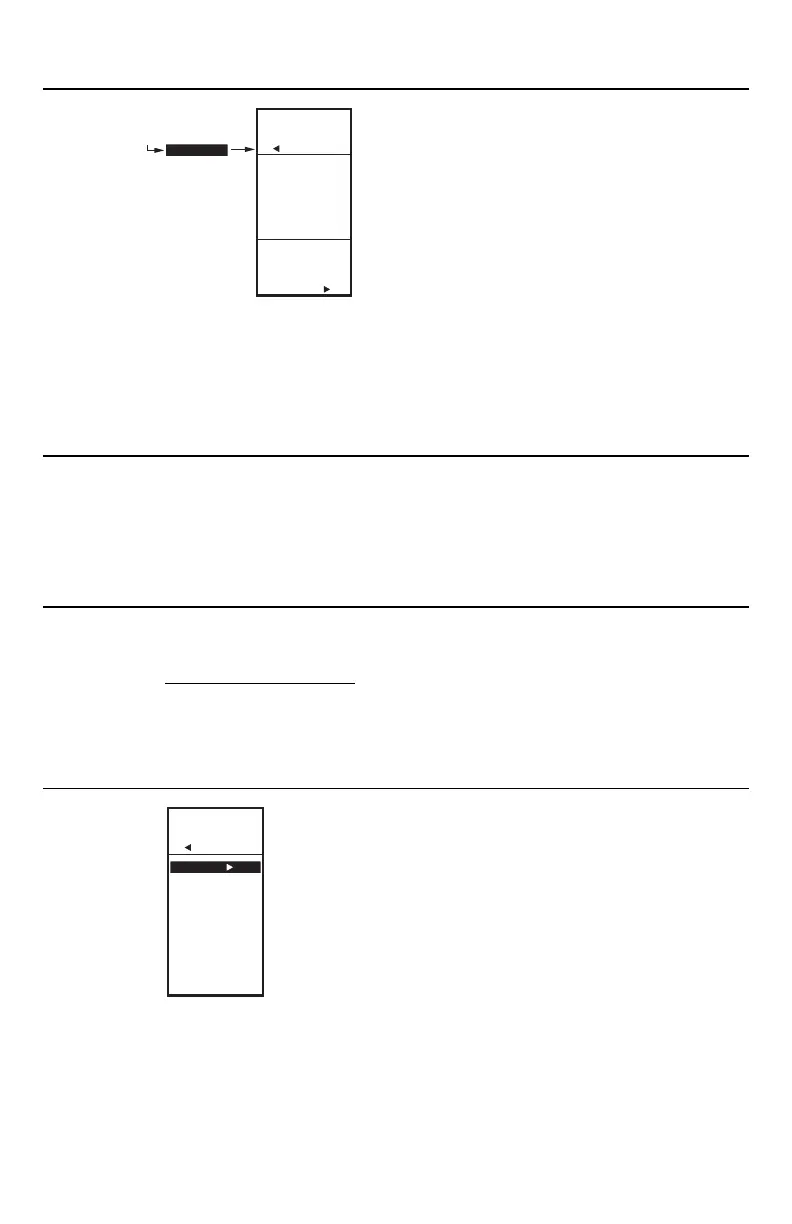

Fig. 73. Program - Setback Offset.
2.2.8. SETBACK OFFSET (if configured)
The Setback temperature option displays only if
scheduling is enabled (see Fig. 30 on page 16) or the DI
Option is set to Setback. (see Fig. 40 on page 19).
This value is the number of degrees plus (+) or minus (-)
that you want the temperature to be offset from the
setpoint.
For example, If you want the temperature to be 10°F less
than the setpoint during setback mode, enter -10°F. In
normal operations for heating, the offset will be negative.
For cooling, the offset will be a positive value.
1. From the menu, use the  and  buttons to high-
light SETBACK.
2. Use the  and  buttons to increase/decrease the
desired setpoint temperature.
Default: 0°F
Range: -150°F to 150°F (-101°C to 66°C)
3. Press the  button to accept the value and display
the Program menu.
2.3. Exit Programming with Reset
Press the HOME button to leave programming mode and
return to the home screen.
This completes the programming procedure for a T775P
controller that uses Reset.
3. PROGRAMMING OUTPUT
STAGE(S) WITH NO RESET
The T775P can be programmed for Reset or No Reset.
From the factory, the T775P is programmed for No Reset.
This section describes the steps necessary to program
the controller for No Reset.
Fig. 74. Program Menu - No Reset.
3.1. Entering Program Mode
Press the MENU button, then select PROGRAM and
press the  button to view the Program menu.
NOTE: The Setback parameter displays only if
scheduling is enabled (see Fig. 30 on
page 16) or the DI Option is set to Setback
(see Fig. 40 on page 19).
PROGRAM
SETBACK
MENU
PROGRAM
SETBACK
-10
F
o
ENTER
SETBACK
OFFSET
FOR
STAGES
M24641
MENU
PROGRAM
SETPOINT
THROT RNG
SENSOR
HEAT/COOL
SETBACK
EXIT
M24642

Honeywell T775P2003 Specifications

General

Brand	Honeywell
Model	T775P2003
Category	Controller
Language	English
