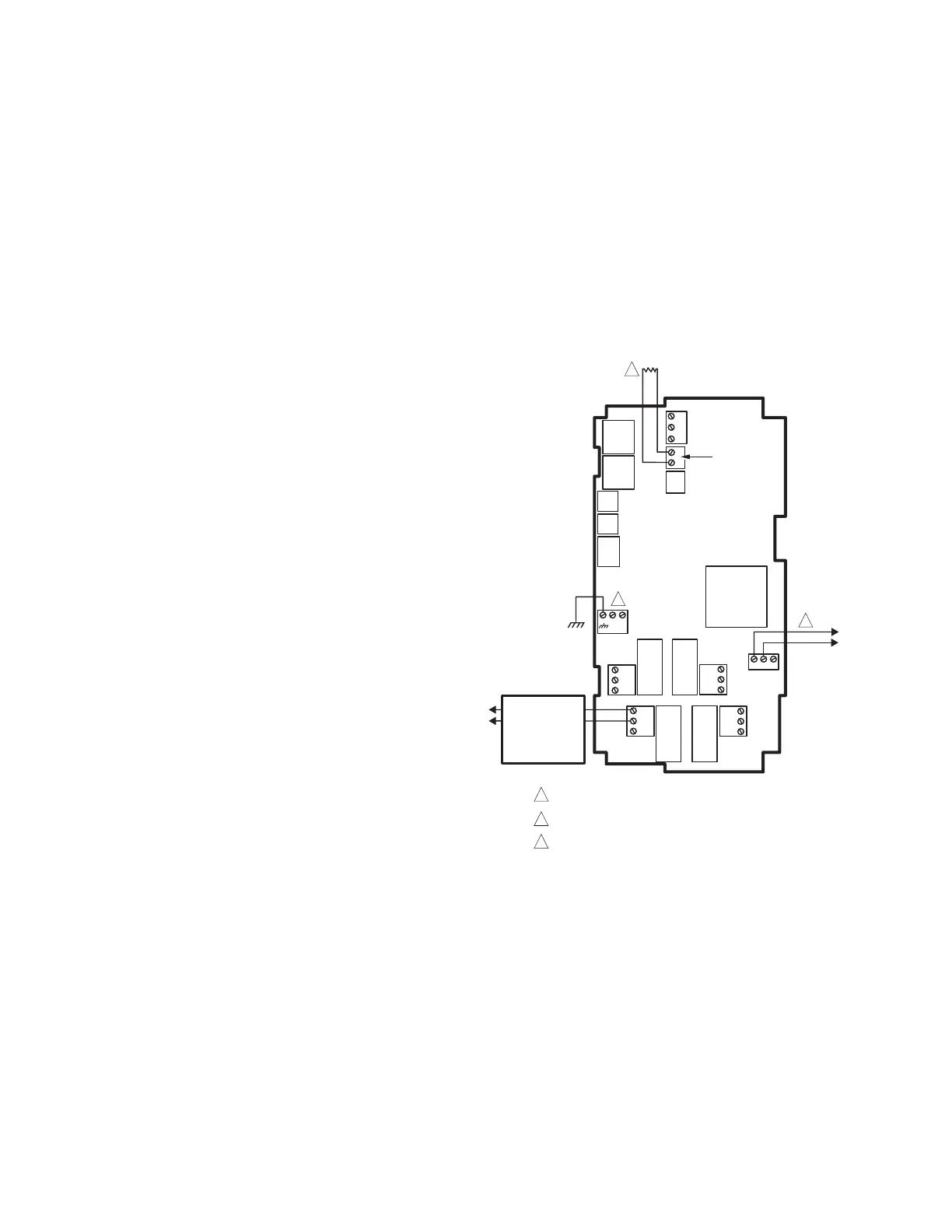

T775P SERIES 2000 ELECTRONIC STAND-ALONE CONTROLLER
62-0256—11 12
outside temperature), and is used only to reset the
controlled setpoint. In Non-reset applications, Sensor B
can be used to monitor some third temperature.
Programming the T775P
Controller
To program the controller, perform the setup configuration
(see “1. Setup”) and then select one of the following
procedures depending on whether the Reset function is to
be used:
• Program the Outputs for Reset —
see “2. Programming Output Stage(s) with Reset”.
• Program the Outputs for No Reset —
see “3. Programming Output Stage(s) with No Reset”
on page 29.
When programming is complete, you may continue with
“4. Scheduling” on page 31.
1. SETUP
Setup provides the ability to change the factory default
settings for the temperature sensors and outputs, to
enable/disable reset control, and to enable/disable
scheduling.
IMPORTANT
If the stage configuration is changed (e.g., the
number of stages [relays] changes) then you
must re-select the pump stage in Setup.
NOTE: The T775P controller interface is intuitive.
You may want to use this procedure simply
as a reference to locate the particular option
or parameter of interest.
NOTES:
1. If you press the HOME button or there is no
keypad activity for four minutes, you exit
Setup mode and return to the home screen.
2. If you press the MENU button, you exit Setup
mode and go to the Program menu.
Once in Setup mode, you use the —
• Left arrow button () to scroll backward through the
Setup menus
• Right arrow button () to select the highlighted menu
item and display its content
• Up and Down arrow buttons ( and ) to scroll up
and down through a list of items or to increase or
decrease the value of a displayed setup parameter
Setup Procedure
The Setup process uses a hierarchical menu structure
that is easy to use. You press the and arrow buttons
to move forward and backward through the menus.
NOTE: The menus can display only those relays that
are defined in Setup (see “1.3.1. Number of
STAGES” on page 15). For example, if you
configure only two relays, then only two
relays (stages) display on the appropriate
menus.
To change the controller’s sensors and output setup
parameters, perform the following procedures in the order
listed:
1. Enter Setup mode —
see “1.1. Entering Setup Mode”.
2. Setup Sensors —
see “1.2. Setting up the Sensors”.
3. Setup Outputs —
see “1.3. Setting up the Outputs” on page 15.
4. Setup Alarms —
see “1.4. Setup Alarms” on page 23.
5. Exit Setup Mode —
see “1.5. Exiting Setup” on page 25.
1.1. Entering Setup Mode
To enter Setup mode, press and hold the MENU button for
five seconds to display the Setup menu. See Fig. 17 on
page 10.
Fig. 19. Setup - Sensors Menu.
1.2. Setting up the Sensors
1. From the Setup menu, use the and buttons to
highlight SENSORS.
2. Press the button to display the Sensors menu.
SETUP
SENSORS
SETUP
SENSORS
# SENSORS
SENSOR A
SENSOR B
SENSOR C
EXIT
M24646
