TK_S014 – Installation Manual
17
Connecting the door
Door Connection (Using +14V Internal Power Supply)
LONWORKS
POWER
ELECTROLOCK
White
Yellow
ELECTROLOCK
White
Yellow
switch
switch
OUT1
+12LOCK
OUT2
IN1
IN2
GND GND
LON-A LON-B
GND SUPPLY IN
+12V SUPPLY IN
GND GND WIE0-IN1 WIE1-IN1 LED-RED1 LED-GREEN1 BUZZER1 +12VRDR
+12LOCK
GND WIE0-IN2 WIE1-IN2 LED-RED2 LED-GREEN2 BUZZER2 +12VRDR
GND
GND
GND
JP1 JP2
1
2
3

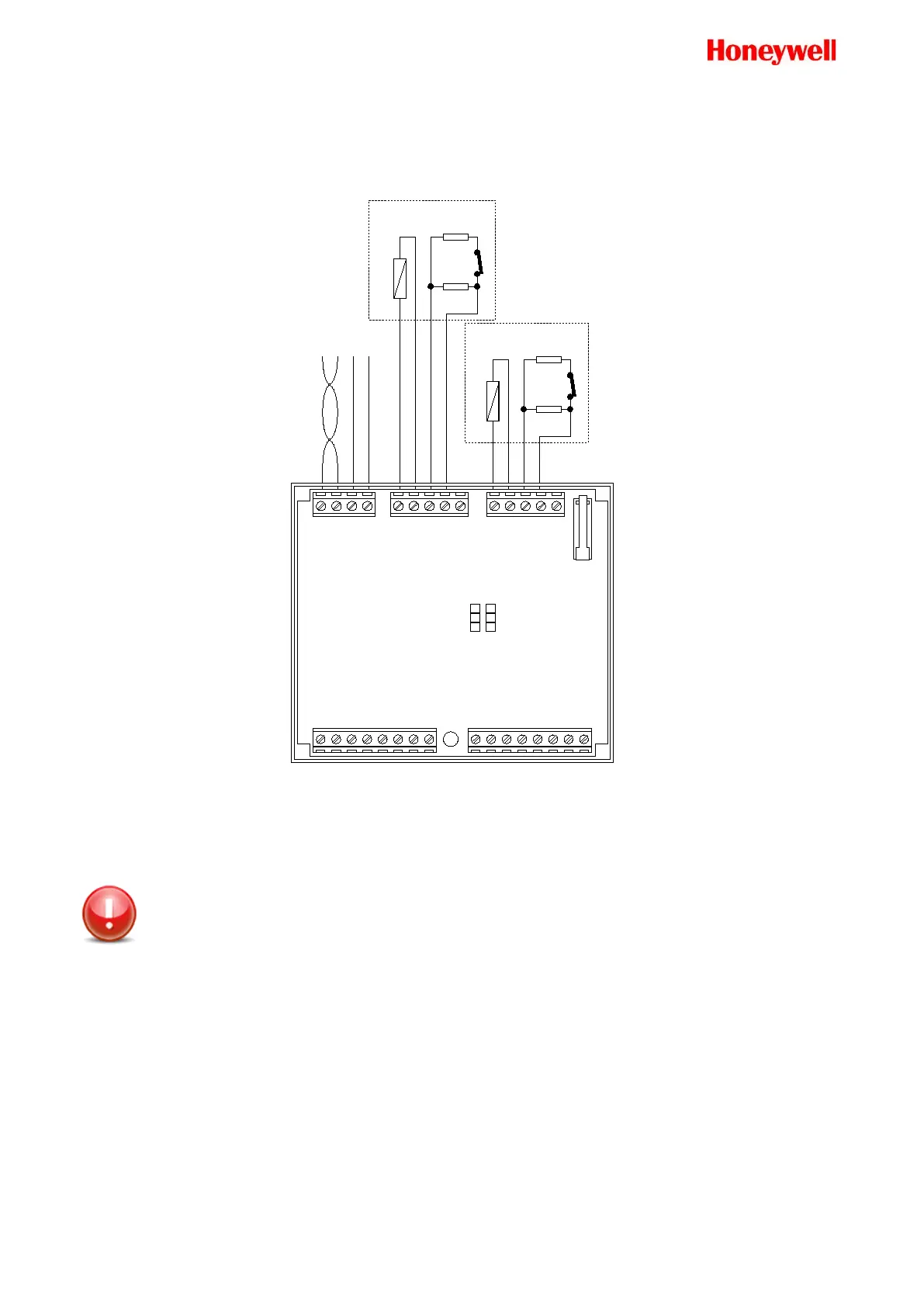

Figure 11. Door Connection Using +14V Internal Power Supply
Be aware that, even if the diode is already embedded in the unit, in some cases (long cable installed
near the inputs cables) may be useful to add an external diode provided with the unit close
to the relay device
