Honeywell TH114-AF-GA User Manual

Owner’s Guide
6
ENGLISH
n Turn the heating system off at the main electrical panel.
o Loosen the bottom screw and remove the thermostat faceplate from
its wallplate. (The screw cannot be completely removed.)
p Connect the thermostat to the load and to the power supply (see
page 7).
q If the thermostat will be used in F or AF mode (see page 9), connect
the floor sensor (see page 8).
r If you wish to connect a remote control device, see page 8.
s Install the wallplate to the electrical box using the provided screws.
t Set the configuration switches on the back of the faceplate (see page
9).
u Install the faceplate back on the wall plate and tighten the screw. If
there is a sticker on the screen, peel it off.
v Apply power to the heating system at the main electrical panel.
w Test the ground fault protection (see page 12).

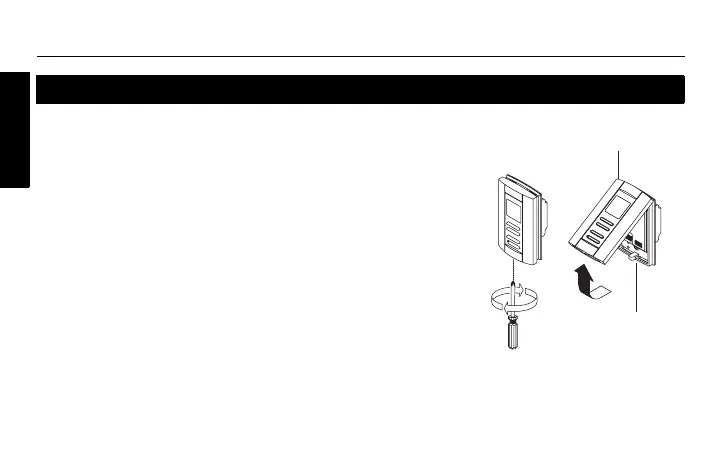

Installing the thermostat
Wallplate
Faceplate
