14

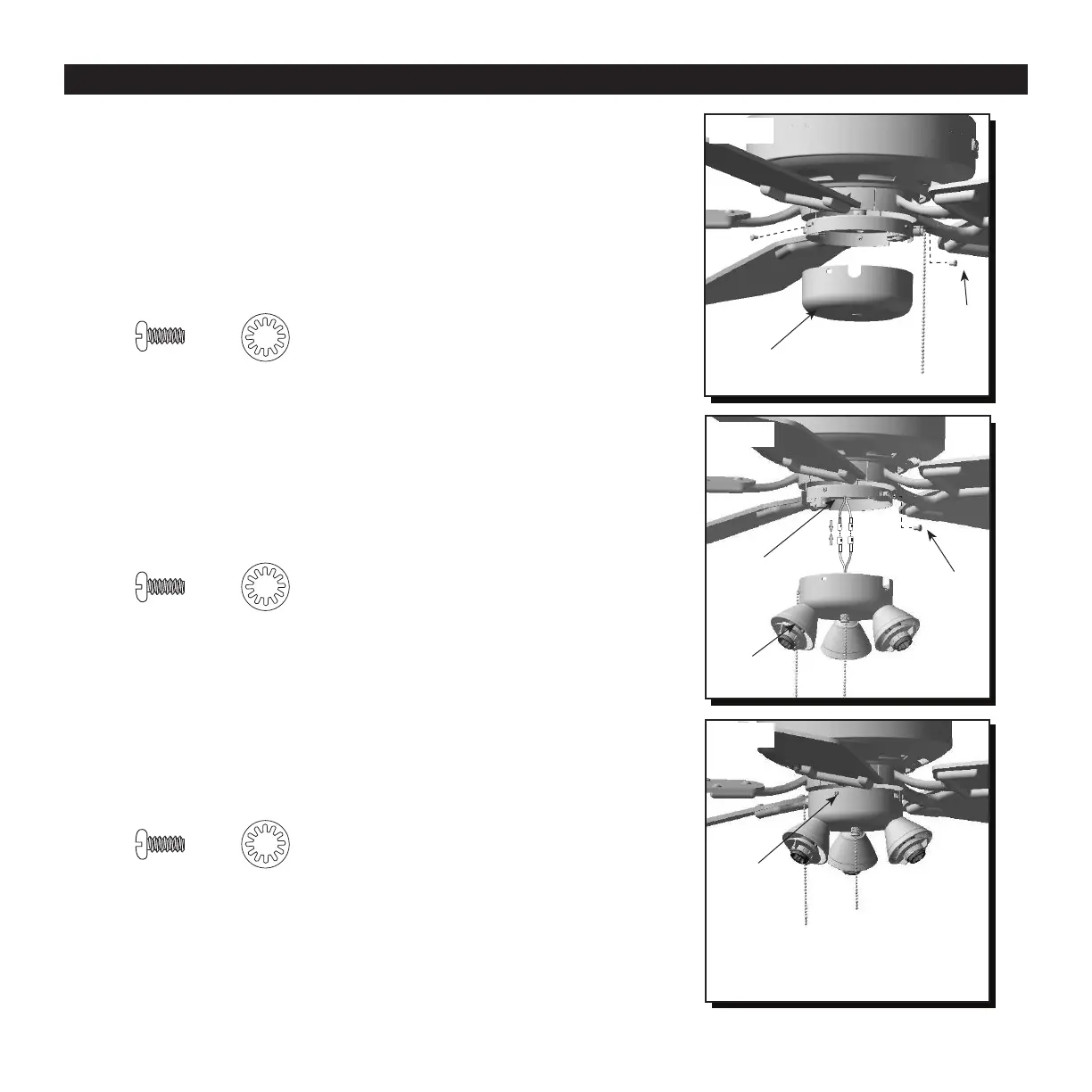

LIGHT KIT INSTALLATION
23. To install the fan with a light kit: Remove the
three screws and washers from upper switch
housing. Connect the single pin connectors from
the light kit to the single pin connectors from the
upper switch housing -- black to blue and white to
white. Make sure plugs connect tightly (Fig. 23).
24. Align holes in the light kit with holes in upper switch
housing. Re-insert screws and washers that were
previously removed. Use a Phillips screwdriver (not
included) to secure all screws (Fig. 24).
Fig. 23
Fig. 24
Screw and
Washer
Screw Washer
Screw
Screw
Washer
Washer
22. (Optional) To install the fan without a light kit:
Remove the three screws and washers from the
upper switch housing. Align holes in optional cap
with holes in upper switch housing. Re-insert
screws and washers that were previously removed.
Use a Phillips screwdriver (not included) to secure
all screws (Fig. 22).
Proceed to step 28.
Fig. 22
Optional
Cap
Screw
and
Washer
Screw
and
Washer
Upper
Switch
Housing
Light
Kit
