Setting the Clock
Lift thermostat flip-up cover and you’ll find
the 24-hour program dial, slotted in 10-minute
increments. Adjust the clock to the current time
by moving the minute hand carefully in a clock-
wise direction. DO NOT reverse the
minute hand.
When time is correctly set, the time indicator
arrow (see Fig. 3) will point to the correct time
and corresponding daytime (light) or nighttime
(dark) band of the program dial.
EXAMPLE: For 11 PM, the time indicator arrow
will point directly to the dark band. For 11 AM,
the arrow will point to them light band on the
dial.
TIME
INDICATOR
ARROW
MINUTE
HAND
M8561

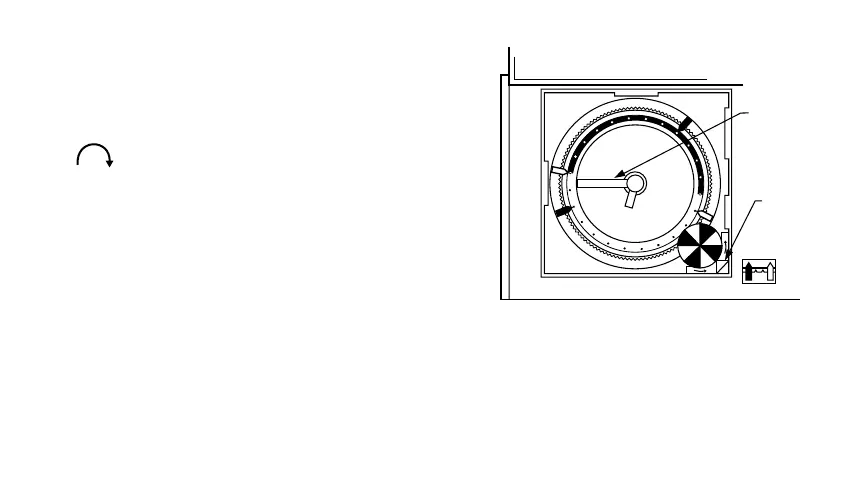

Fig. 3—Setting the clock.
