Note: In case of mains power disconnection for a
period of more than two months, the battery
Note: In case of battery or light source replacement,
these must be replaced with parts of the same
type. The replacement must be performed by
the manufacturer or a competent person.
Important notice when installing luminaires within the
same area!!!
To avoid that luminaires perform their battery test at the
same day, connect the battery packs with more than 1,5
Note: If the supply cable of the luminaire is
damaged, it shall exclusively be replaced by
a competent person in order to avoid hazard.
The UniLED is a self-contained emergency light with selftest
function. It can be configured as maintained or non-maintained.
Selftest functions
Every 15 days the luminaire will perform an emergency operation test, this will light the white LEDs for
approx. 3 seconds. The red LED will flash during this test sequence.
Every 6. month the luminaire will perform a battery condition test. The test will last for 60 minutes. The
white LEDs will be lit and the yellow LED will flash during this test sequence.
Note: When using DALI or Wireless communication, the frequencies and schedules for tests will
instead be determined by the connected PC software.
Manual test functions
Manual tests can only be performed if both mains and battery are connected.
By pressing the test button briefly (less than 5 seconds) an emergency operation test is performed.
The white LEDs will be lit for approx. 3 seconds, the red LED will flash during this test sequence.
By pressing the test button for between 5 and 10 seconds a battery condition test is performed.
This test will last for 60 minutes and can only be performed when the battery is fully charged (steady
green LED). The white LEDs will be lit and the yellow LED will flash during this test sequence.
Resetting errors
Push the test button for >10 seconds to delete all indicated errors. Then the luminaire enters regular
operation mode.
In case that the luminaire no longer meets its rated
duration of operation, the battery must be replaced
(see chapter “Service/maintenance” on previous page).
290047 (double sided)
Lumen output, normal: 280 lm
Lumen output, emergency: 350 lm
Operation voltage: 220-240VAC 50/60Hz
Emergency mode duration: Minimum 1 hour
Battery: 4,8V / 1,2Ah NiMH
Battery protection: Overcharge and full discharge
Maximum power consumption: 5,6W / 5,9VA
Charging time: 16 hours
Ambient temperature range: 5 to 40°C
Relative humidity: Up to 95%
Weight: 960g
Classification: EN 60598-2-22
Technical lifetime (light source): > 100000 hours
IP20
Expected battery lifetime 4 years

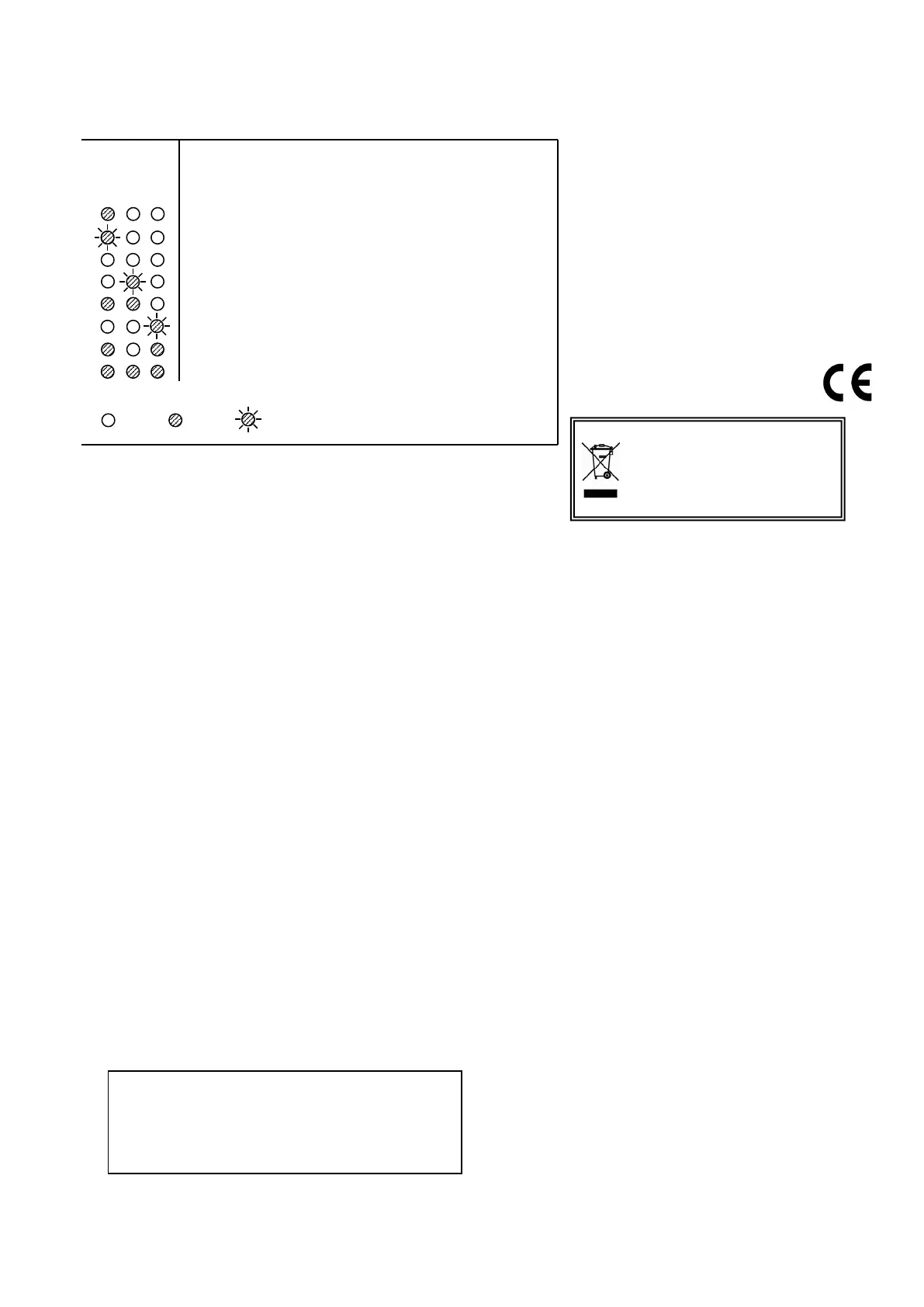

YELLOW
RED
Normal
Charging (battery test not possible while charging)
Mains off, battery not connected or charger fault
Battery test
Battery fault
Light source test
Light source fault
Battery fault and light source fault
At the end of their useful life the
packaging, product and batteries
should be disposed of via a
suitable recycling centre. Do not
dispose of with your normal
household waste. Do not burn.
