V4062A,B,D HI-LO-OFF FLUID POWER GAS VALVE ACTUATOR
Home and Building Control Home and Building Control Honeywell Asia Pacific Inc. Honeywell Europe S.A. Honeywell Latin American
Honeywell Honeywell Limited-Honeywell Limitée Room 3213-3225 3 Avenue du Bourget
Region
1985 Douglas Drive North 35 Dynamic Drive Sun Hung Kai Centre 1140 Brussels 480 Sawgrass Corporate Parkway
Golden Valley, MN 55422 Scarborough, Ontario No. 30 Harbour Road Belgium Suite 200
M1V 4Z9 Wanchai Sunrise FL 33325
Hong Kong
OPERATION
To function as intended, the V4062 must be connected to a
properly sized valve. Too large a valve will not properly control
the gas flow.
When the actuator is energized, it drives to the adjustable
low-fire position. Depending on the demand of the controller,
the valve remains at low-fire or moves to the high-fire position.
When the firing rate controller calls for no heat, the actuator
returns the valve to the low-fire position. When power to the
actuator is interrupted, the valve completely closes.
Fig. 4 shows the V4062 in a typical flame safeguard control
system.
SERVICE AND CHECKOUT
CAUTION
Equipment Damage Hazard.
Unskilled technicians can damage the equipment.
Only experienced, trained flame safeguard control
service technicians should service or replace this
control.
Service
The actuator is not field repairable, except for replacing the
auxiliary switch or valve-closed indication switch. See
Installation section for procedure. Do not disassemble the
valve actuator. If the actuator should fail to operate properly,
replace it.
Checkout
After the installation is complete, cycle the valve several times
with the manual fuel shutoff cock closed before testing the
system in actual operation.
V4062A1156 Fluid Power Gas Actuator
The V4062A1156 Fluid Power Gas Valve Actuator was
modified to provide modulation between high-and low-fire
positions when used with a Series 60 controller, such as the
W964 Aquatrol™ System and two auxiliary relays.
The V4062A1156 will not operate properly wired similarly to
other V4062 models. See Fig. 7 for suggested wiring
procedure.
Ratings:
Voltage: 120V, 60 Hz.
Nominal Opening Time: 26 seconds.
Closing Time: one second maximum.
See Specifications section for further specifications.

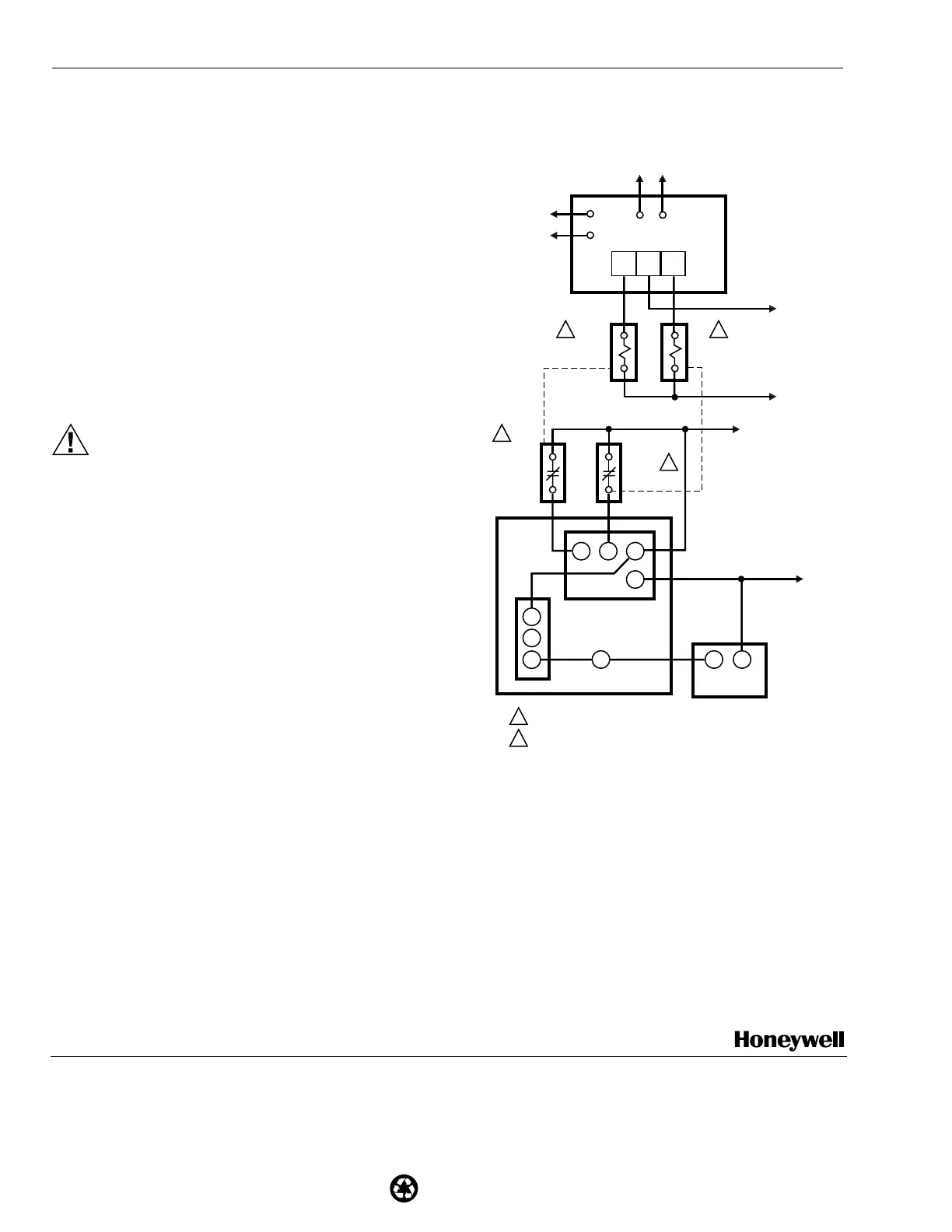

Fig. 7. Suggested wiring diagram.
2
1
1
1 2
2
L1
W964
R1 – NORMALLY CLOSED RELAY CONTACT.
R2 – NORMALLY OPEN RELAY CONTACT.
NO
NC
C
AUX.
SWITCH
R1
RELAY
CONTACT
R2
RELAY
CONTACT
TO MAIN VALV
TEMINAL ON
PROGRAMMER
V4062
5
3 4 1
2
1 2
V4055
L
L2
R2
RELAY
COIL
R1
RELAY
COIL
INDOOR
SENSOR
SENSOR
CBA
M7341
