VPI Pressure Independent Control Valves & Actuators
31-00383-01 12
ELECTRICAL INSTALLATIONS

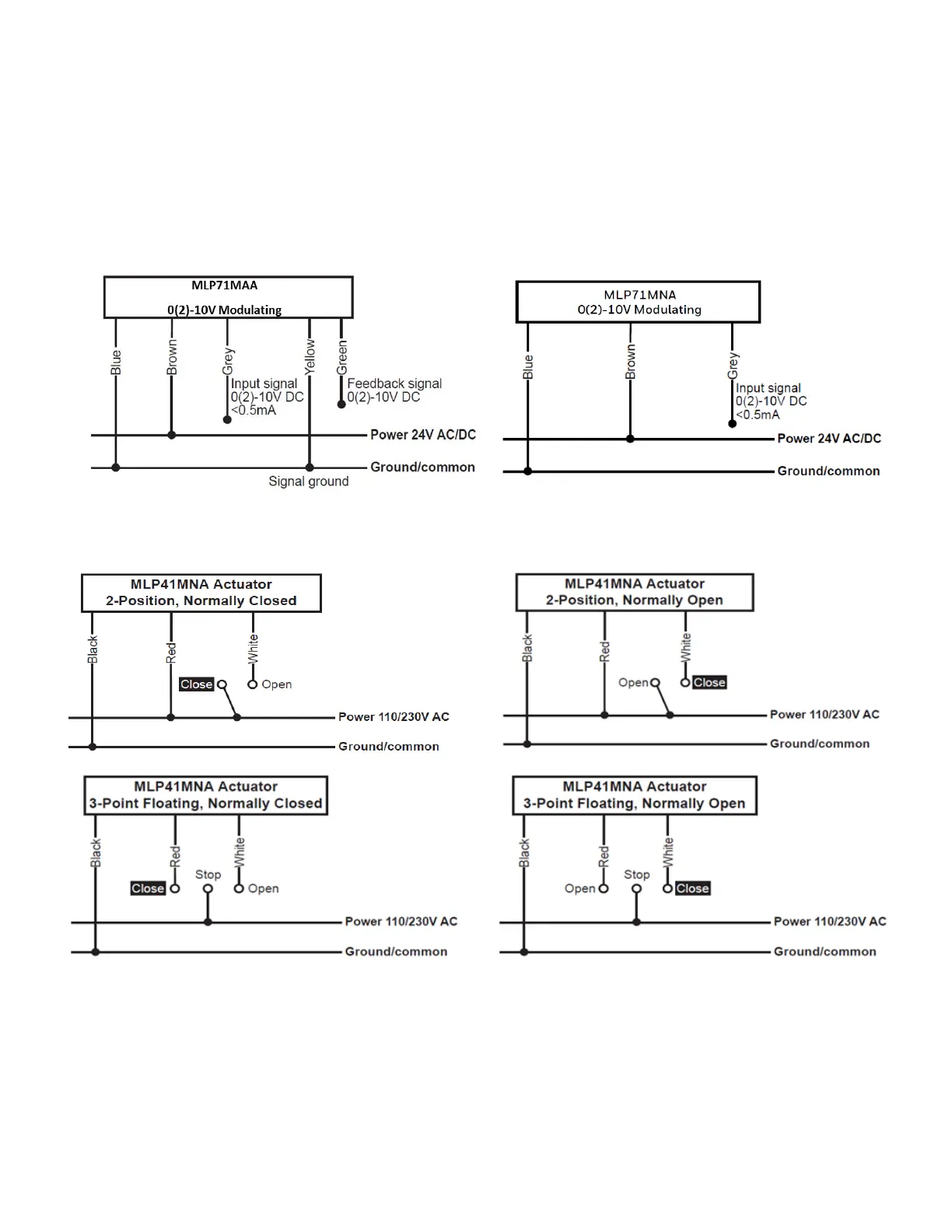

Electrical Wiring for Actuators Compatible to DN15-50
The most important part of the electrical installation is the appropriate wiring set-up as per application. Below are
examples of electrical wiring provided as per the actuator model.
MLP71MAA Actuators
MLP41MNA Actuators
