WEB/CP-202-XPR AND WEB/CP-602-XPR CONTROLLERS
95-7775—01 22
RS-485
An RS-485, optically isolated port is available on 3 pins of a 6-position connector, and operates by default as COM2. As shown in
Fig. 15 on page 20, the screw terminals are minus (–), plus (+), and shield. Wire in a continuous multidrop fashion to other
RS-485 devices, meaning “minus to minus,” “plus to plus,” and “shield to shield.” Connect the shield to earth ground at one end
only, such as at the controller. For wiring to one or more remote I/O modules (IO-16-REM-H), see Wiring to Remote I/O
Modules on page 23.
NOTE: If enabled to do so, the controller’s RS-485 port can be alternatively used as a Sedona/Jennic IPv6 wired connection. In
that case, COM2 is unavailable to NiagaraAX. However, note at the time of this document, the released
WEB/CP-202-XPR controller does not include the onboard Jennic module.
EXTERNAL 12V BACKUP BATTERY
The controller provides a 2-position connector for support of an external 12V sealed lead-acid (SLA) type rechargeable battery
(part number 712BNP). Usage is optional. For more details, see Backup Battery on page 25.

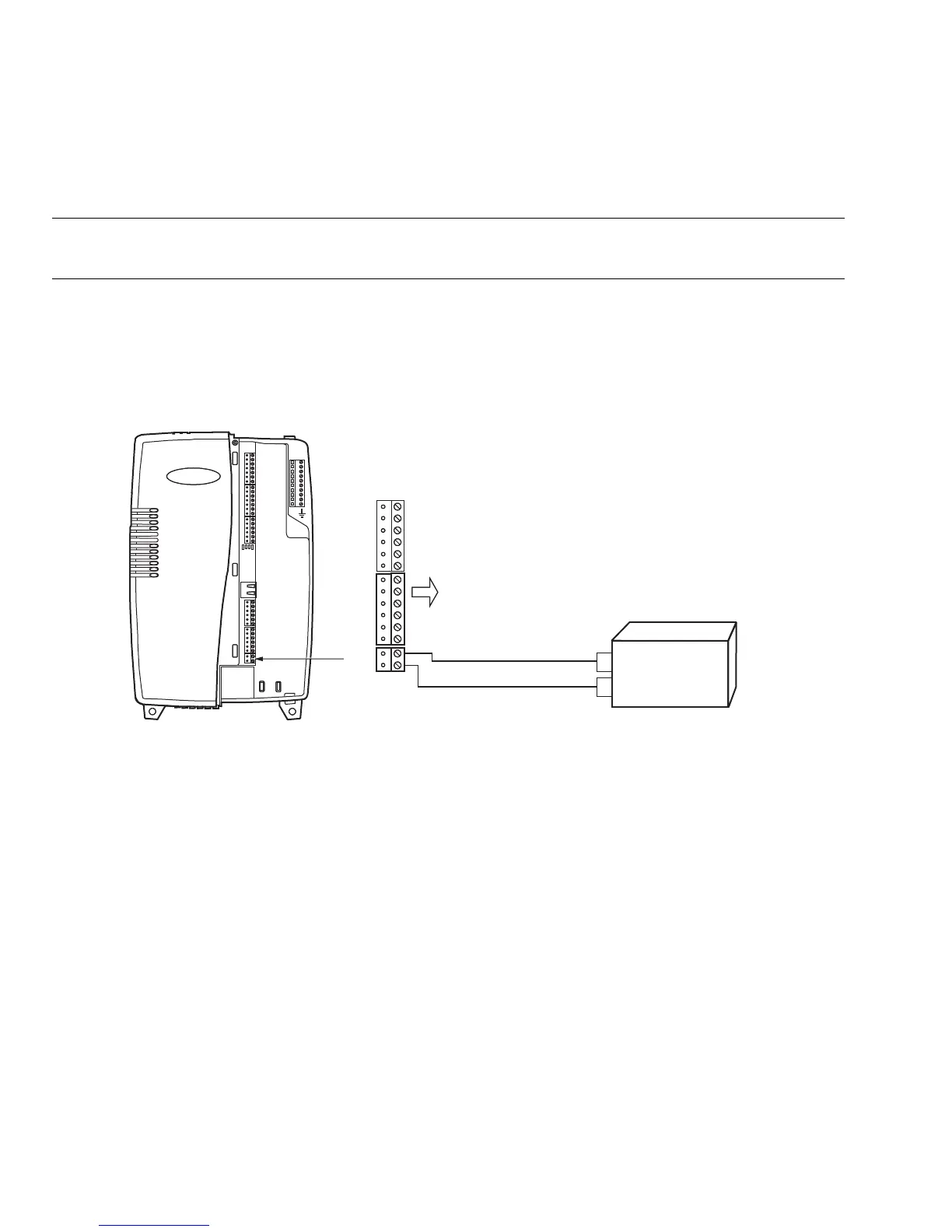

Fig. 16. Sealed lead-acid backup battery connection on the WEB/CP-202-XPR or WEB/CP-602-XPR.
–
+
RS-485 –
RS-485
+
485 GND
PS
+
PS
–
BB
BT
–
BT
+
15 VDC POWER AND BACKUP BATTERY
PASSED THR OUGH 6-POSITION CONNECTOR.
NOTE:
CONTROLLER TERMINALS BT+ AND BT- SUPPLY CHARGING VOLTAGE
AT 200mA MAXIMUM. THIS TRICKLE CHARGES THE CONNECTED SLA BATTERY BACKUP.
712BNP
1 2V SEAL ED LEA D ACID
BAC KUP BATTE RY( IE S)
WEB/CP-202-XPR, WEB/CP-602-XPR
NOTE - MINIMUM WIRE SIZE:
• 18AWG (1.0mm) for up to 4 ft . (1.22m)
• 16AWG (1.29mm) fo r u p to 12 ft. (3.66m).
M28879
