XNX Universal Transmitter
Specications
169

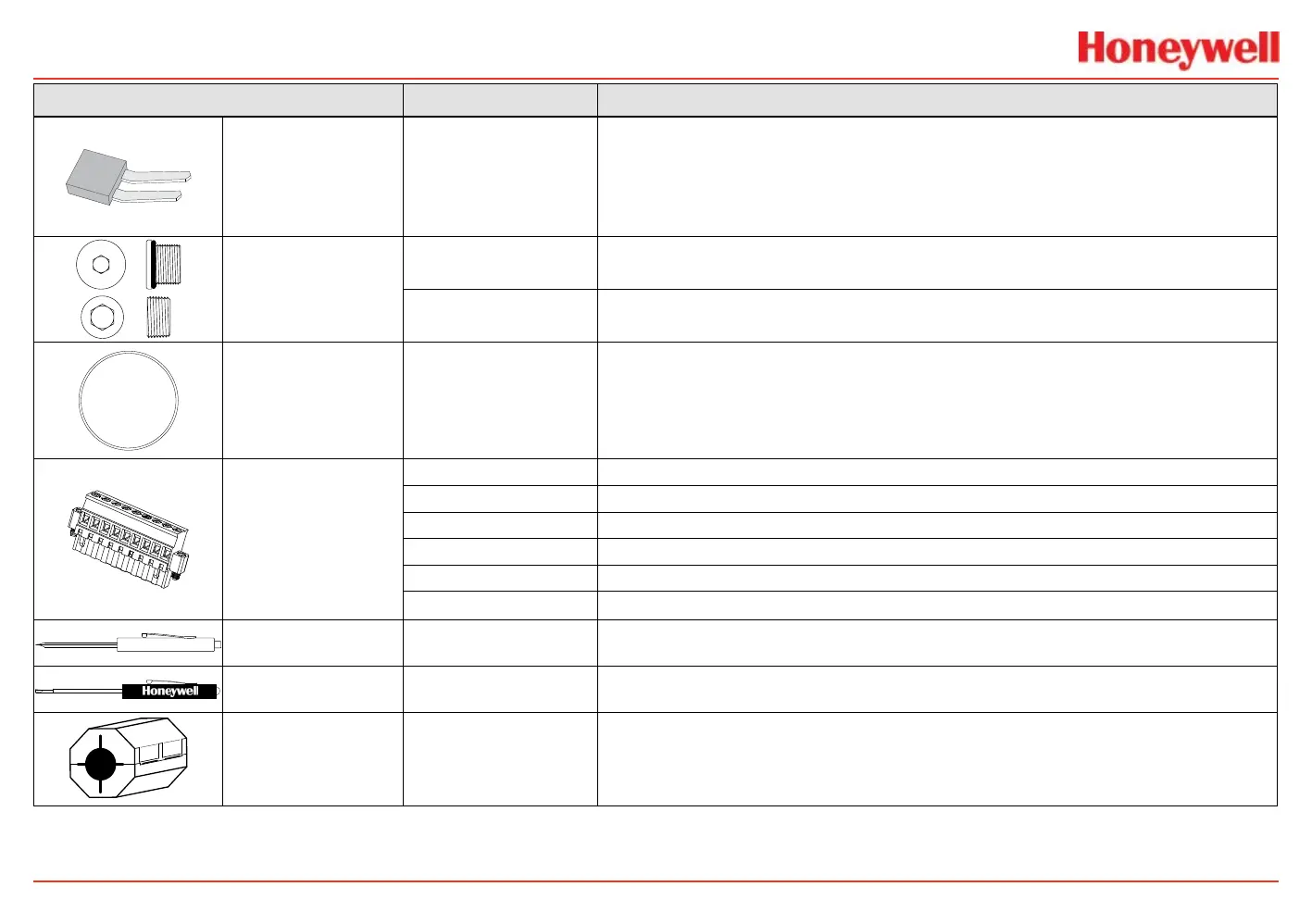

Accessory Part Number Description
Terminal Block/
Shorting Jumpers
Contact HA
Terminal block jumpers provide an electrical connection without connection to the
Personality Board. Install the jumpers between pins 1 and 2 and between pins 3 and 4
to support multi-node wiring.
Stopping Plugs
1226-0257
M25 Plug w/protective cap and O-ring. (Certied for use with XNX Universal
Transmitter only)
1226-0258 3/4 NPT w/protective cap. (Certied for use with XNX Universal Transmitter only)
Replacement Cover
O-ring
0235-1266 Replacement O-ring for the XNX front cover
1
2
3
4
5
6
7
8
9
Pluggable Terminal
Blocks
1226A0302 Terminal Block Ass’y 6-Pin XNX EC
1226A0304 Terminal Block Ass’y 9-Pin XNX mV
1226A0305 IR Terminal Block Kit Includes: 9-Pin and 2-Pin Terminal Blocks
1226A0306 Relay Terminal Block Kit Includes: 9-Pin and 2-Pin Terminal Blocks
1226A0307 Terminal Block Ass’y 10-Pin XNX Modbus
1226A0303 Terminal Block Ass’y 6-Pin FFB
Magnetic Wand/
Screwdriver
1226-0254 Replacement wand for front panel access
Small Screwdriver 1226-0408
Replacement screwdriver for use on Terminal Block TB2 and TB4 (IR Personality and
Relay Option)
Ferrite Bead 0060-1051 Bead Ferrite MV XNX
