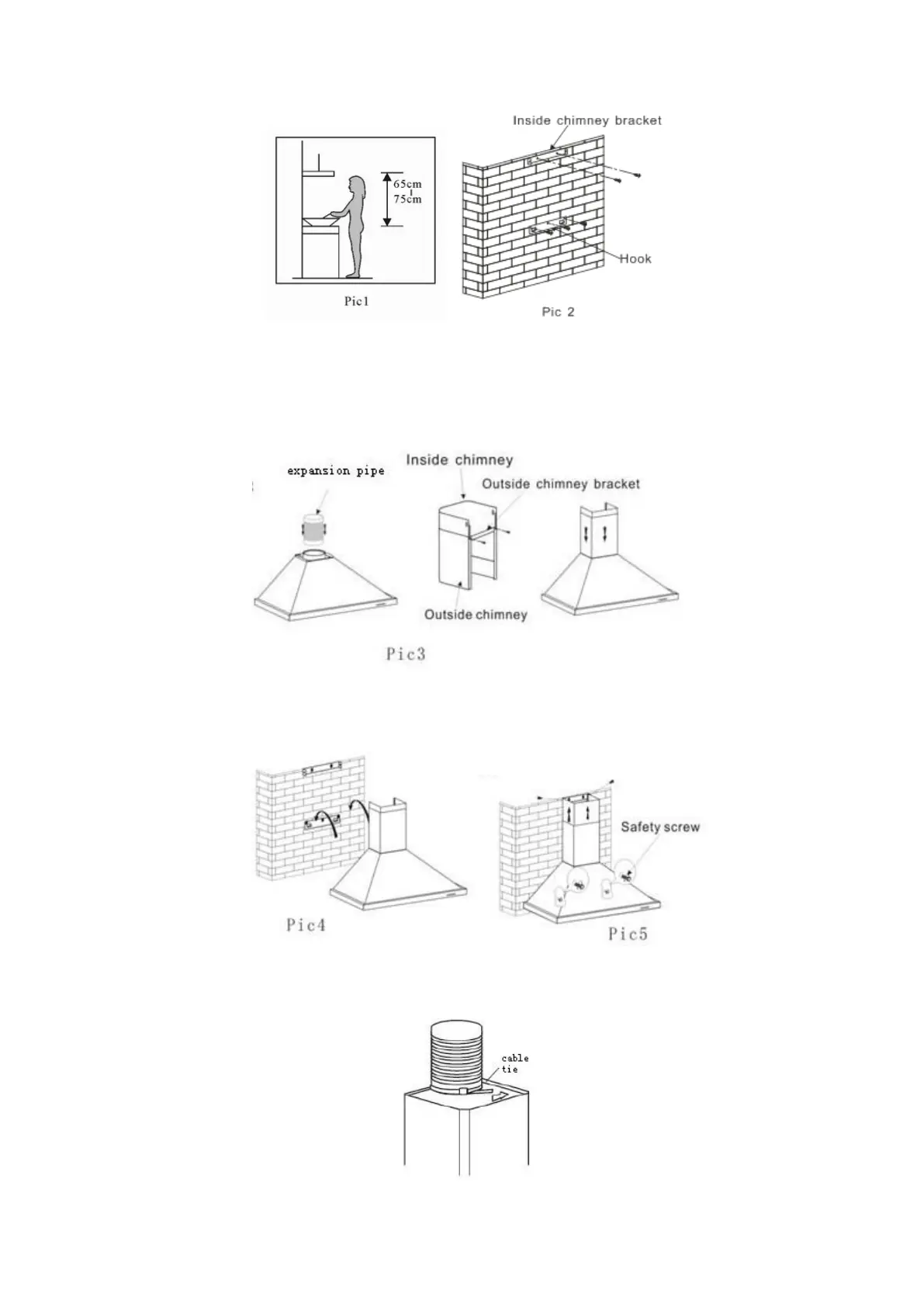

3. Install the hook on a suitable place once the installation height is fixed, and keep it
in line. The fixed position of the inside chimney bracket is the place of chimney. See
pic 2.
4. Fix the outside chimney bracket on the outside chimney, and be sure that the inside
chimney can be adjusted the height in it freely as well as fixing the expansion pipe.
Afterwards, install the expansion pipe and chimney on the cooker hood. See Pic 3.
5. Put the cooker hood on the hook. See Pic 4.
6. Adjust the height of the inside chimney to the position of the inside chimney bracket
and fix on it by screw, after adjusting the position, fix the body with safety screw. See
Pic 5.
Note: The two safety vents are positioned on the back housing, with diameter of
6mm.Lay the expansion pipe to the wall outlet. Fix the expansion pipe with the cable
tie on the wall-outlet.
