9
min 50 cm
max 85 cm
+2,6 mt max
max 100 cm
min 4 cm
EN
Fix the sheet of corrugated material on the bottom as shown
in picture.
Connect the fill hose to the cold water tap only.
The appliance must be connected to the water mains using
new hose-sets.The old hose-sets should not be reused.
IMPORTANT:
DO NOT TURN THE TAP ON AT THIS TIME.
Position the washing machine next to the wall. Hook the
outlet tube to the edge of the bath tub, paying attention
that there are no bends or contractions along the tube.
It is better to connect the discharge hose to a fixed outlet of
a diameter greater than that of the outlet tube and at a
height of min. 50 cm. If is necessary to use the plastic sleeve
supplied.
The appliance must not be installed behind a lockable door,
a sliding door or a door with a hinge on the opposite side to
that of the washer dryer.
8
EN

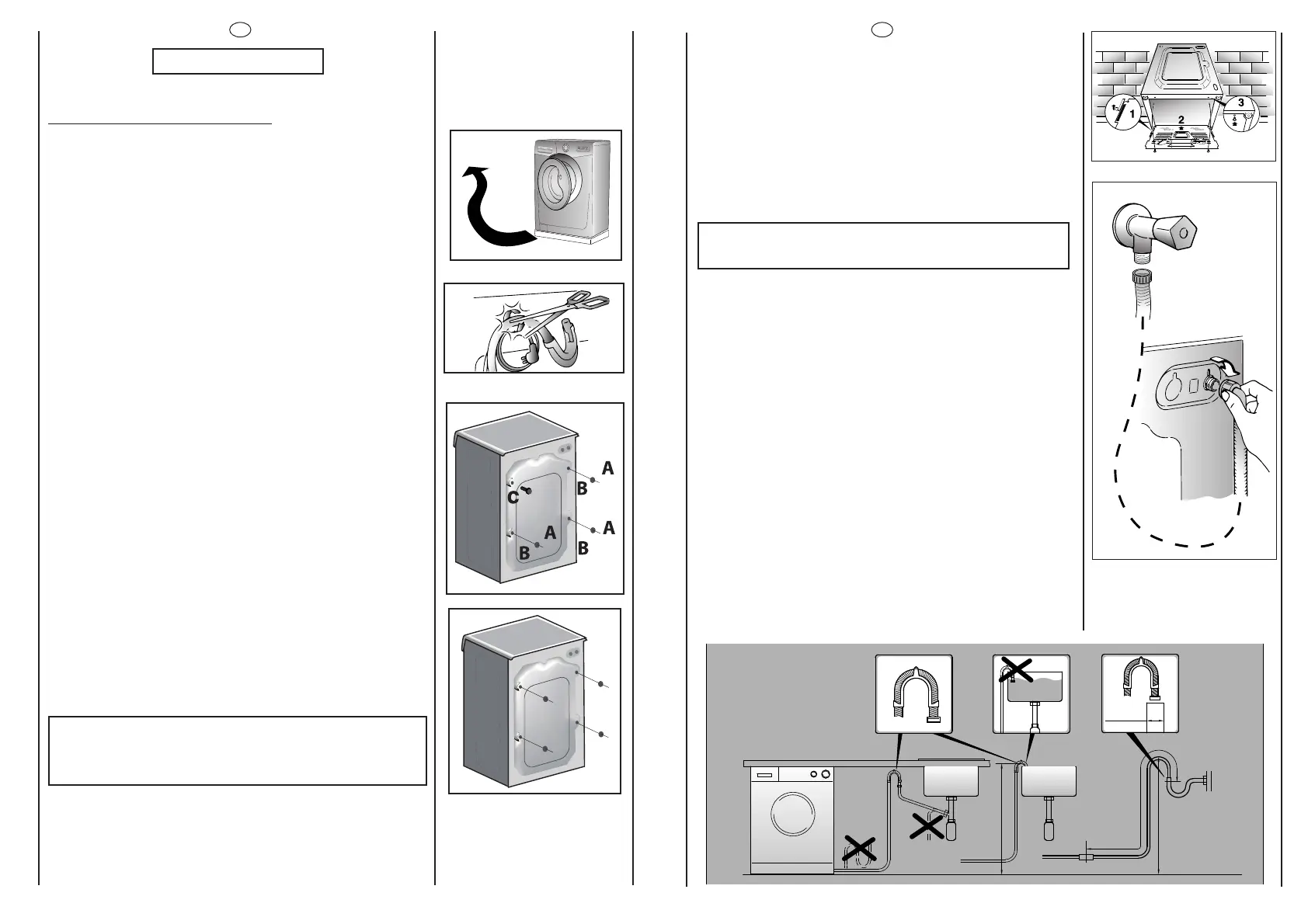

CHAPTER 5
SETTING UP INSTALLATION
Move the machine near its permanent position without the
packaging base.
Carefully cut the securing strap that holds the main cord and
the drain hose.
Remove the 3 fixing screws marked (A) and remove the 3
spacers marked (B)
Remove the screw (C). A spacer will fall inside the machine.
By tilting the machine, remove the above mentioned spacer.
Cover the 4 holes using the caps provided in the instruction
booklet pack.
WARNING:
DO NOT LEAVE THE PACKAGING IN THE REACH OF
CHILDREN AS IT IS A POTENTIAL SOURCE OF DANGER.
