33
500V / S;
Calculate Ramp T = 3000V / (500V / S) = 6S;
Ramp T is set to 6.0S
6. Hi-pot test time setting (DC Hi-pot test)
Use the "▲" or "▼" key on the measurement parameter setting interface to
select the "test time" setting content, as shown in the figure below:

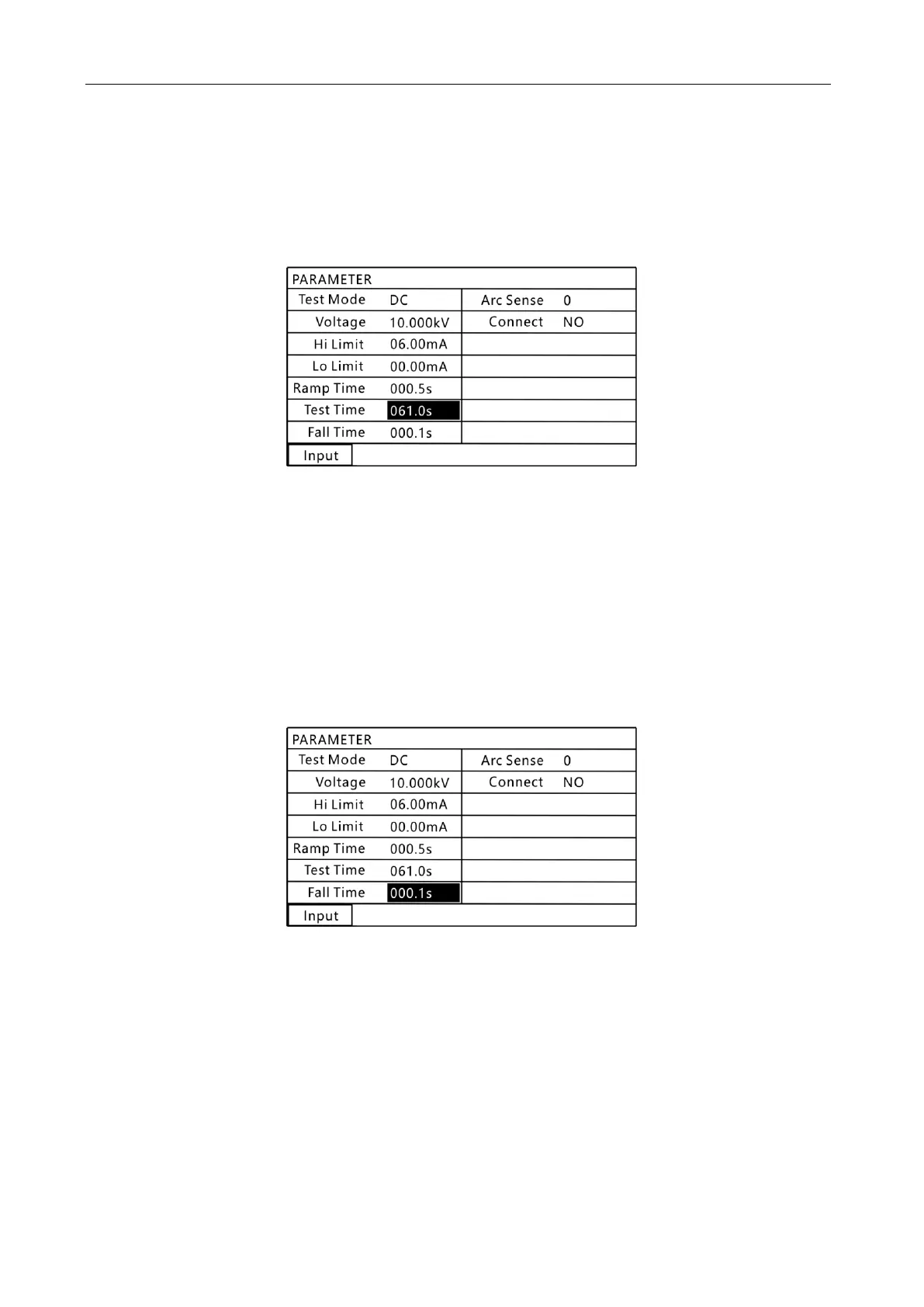

8.12 Hi-pot test "Test Time" Setting Interface
In this interface, press the "Input" key. The first digit of the voltage value will be
displayed in reverse. Use the numeric keys to set the required test time. After setting,
press “Enter” to confirm. To cancel the setting, press the "Esc" key to exit the current
setting.
7. Fall time setting (DC hi-pot test)
Use the "▲" or "▼" key on the measurement parameter setting interface to
select the "fall time" setting content, as shown in the figure below:
8.13 Hi-pot test "fall time" setting interface
In this interface, press the "Input" key. The first digit of the voltage value will be
displayed in reverse. Use the numeric keys to set the required fall time. After setting,
press “Enter” to confirm. To cancel the setting, press the "Esc" key to exit the current
setting.
8. Arc sensitivity setting (DC Hi-pot test)
Use the "▲" or "▼" key on the measurement parameter setting interface to
select the "Arc Sensitivity" setting content, as shown in the figure below:
