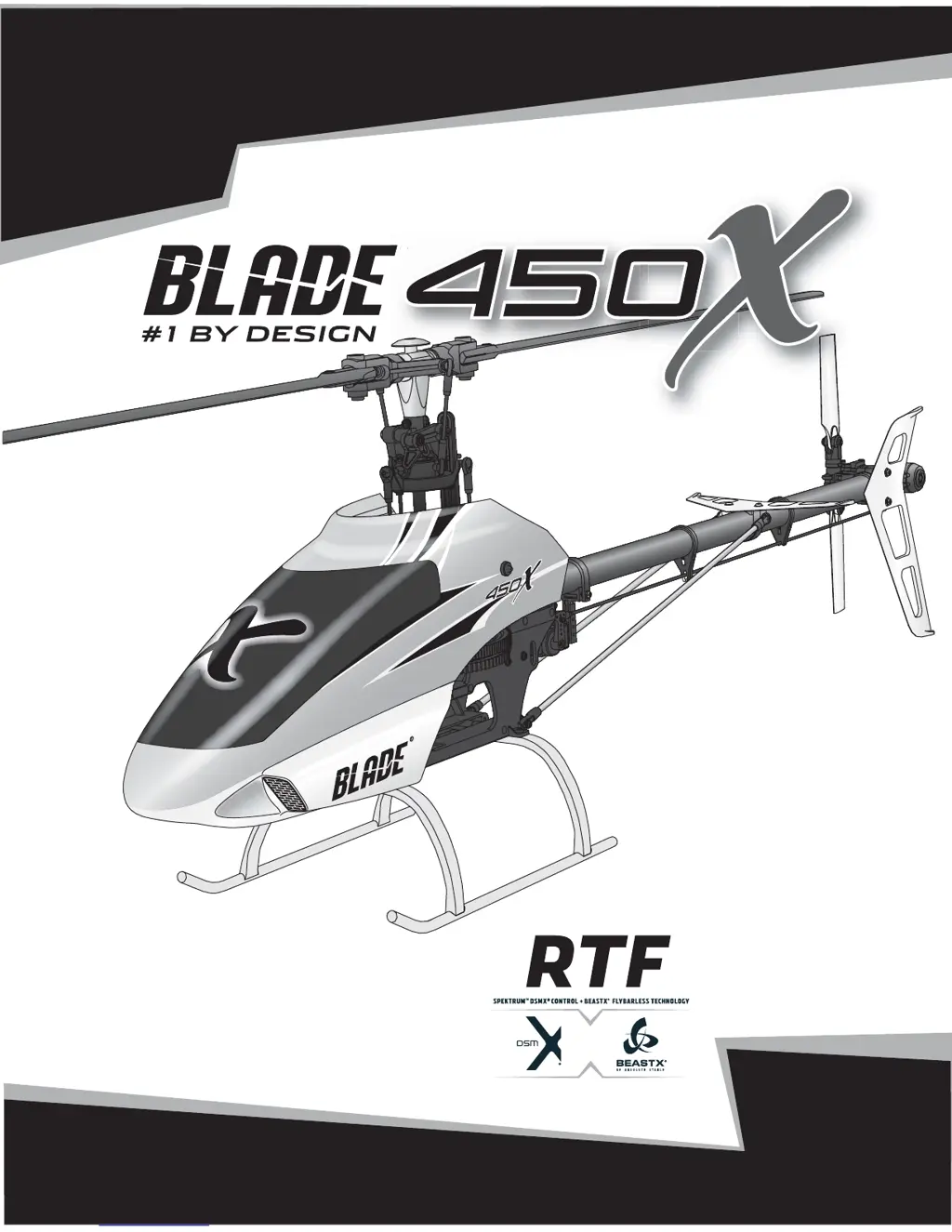

Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
®
®
®

Questions and Answers

  • V
    Veronica NguyenAug 14, 2025
    What to do if my Horizon Hobby Blade 450 X Toy helicopter won't respond to throttle?
    • R
      robbinsjeffreyAug 14, 2025
      If your Horizon Hobby Toy helicopter won't respond to the throttle but responds to other controls, there are several potential reasons. First, ensure the throttle stick is at idle and the throttle trim isn't too high. Also, verify that the transmitter is in normal mode and throttle hold is off. Check that the motor wires are correctly connected to the ESC and inspect them for any damage. A low flight battery charge could also be the cause, so try replacing or recharging it. Finally, confirm that the throttle channel is not reversed in the transmitter settings.
  • T
    Taylor RichardsonAug 17, 2025
    Why Horizon Hobby Blade 450 X Toy helicopter will not lift off?
    • D
      Danielle RyanAug 17, 2025
      If your Horizon Hobby Toy helicopter will not lift off, there are several things to check: Ensure the main rotor head is spinning clockwise. Verify that your transmitter settings for throttle and pitch curves are correct, and also check the pitch control direction. A low flight battery can also cause this issue, so ensure it is fully charged. Lastly, make sure the main rotor blades are installed correctly, with the thicker side as the leading edge.
  • O
    ovelazquezAug 21, 2025
    What to do if Horizon Hobby Toy helicopter tail spins out of control?
    • N
      nicole60Aug 22, 2025
      If the Horizon Hobby Toy helicopter tail spins out of control, ensure that the rudder control and sensor are operating in the correct direction. Inspect the rudder servo for damage and replace it if needed. Check the rudder control arm for adequate travel and adjust it if necessary. Also, verify that the tail drive belt tension is correctly adjusted.
  • A
    Amanda Mason DDSAug 26, 2025
    What to do if Horizon Hobby Toy helicopter will not link to transmitter?
    • K
      Kevin PattersonAug 26, 2025
      If your Horizon Hobby Toy helicopter won't link to the transmitter after binding, it might be bound to a different model memory. Disconnect the flight battery, select the correct model memory on the transmitter, and then reconnect the flight battery. Also, ensure that both the flight battery and transmitter batteries are adequately charged; replace or recharge them if necessary.
  • D
    Derek BautistaAug 29, 2025
    Why is my Horizon Hobby Blade 450 X Toy helicopter power lacking?
    • M
      Mr. Jason RosalesAug 29, 2025
      If your Horizon Hobby Toy helicopter is lacking power, fully charge the flight battery. If the battery is old or damaged, replace it. Ensure the flight battery cells are balanced by allowing the charger time to balance them during a full charge. Check all servos and the helicopter motor for damage, as excessive current could be drawn through the BEC.
  • P
    patrickrodriguezSep 1, 2025
    Why AR7200BX will not initialize on my Horizon Hobby Blade 450 X Toy helicopter?
    • B
      Brian VelazquezSep 1, 2025
      If the AR7200BX on your Horizon Hobby Toy helicopter will not initialize, ensure the helicopter remains still during initialization; lay it on its side if it's windy. Make sure the transmitter is powered on. Center the elevator, aileron, and rudder controls, and ensure the throttle is at idle.
  • R
    robert31Sep 5, 2025
    Why Horizon Hobby Blade 450 X Toy helicopter wobbles in flight?
    • D
      Dr. Philip RichardsSep 5, 2025
      If your Horizon Hobby Toy helicopter wobbles in flight, it could be due to several reasons. The cyclic gain might be too high, so try decreasing Dial 1 on the AR7200BX. The head speed could be too low, so increase it via your transmitter settings or use a freshly charged flight pack. Finally, worn dampers can cause wobbling, so consider replacing the main rotor head dampers.
  • R
    rebecca41Sep 9, 2025
    Why Horizon Hobby Toy flight battery will not charge?
    • A
      Amanda BuchananSep 9, 2025
      If the flight battery for your Horizon Hobby Toy will not charge, check that the input voltage to the charger is between 11.5–15V DC with a minimum 3A current. Inspect the battery balance tab for damage, ensuring the wires are fully seated in the balance plug. If any cell voltage has dropped below 3V, the battery is likely overdischarged, damaged, and needs to be replaced.

Summary

Safety Precautions and Warnings

First Flight Preparation

Charging Warnings

Battery Charging

The Battery Charging Process

LED Indications

Low Voltage Cutoff (LVC)

Installing the Transmitter Batteries

Transmitter Functions

Transmitter Mode Conversion

Mechanical Conversion

Transmitter Setup

Installing the Flight Battery

Transmitter and Receiver Binding

Binding Procedure

Steps for binding the transmitter to the receiver.

Throttle Hold

Control Tests

Rudder

Procedure for testing the rudder control direction.

Cyclic

Procedure for testing cyclic control directions.

Cyclic and Collective Control Test

Motor

Pre-Flight Checklist

Flying the Blade 450 X

Takeoff

Flying

Gyro Gain Adjustment

Blade Helicopter Belt Tension

Post-Flight Inspections and Maintenance

AR7200 BX Default Blade 450 X Setup

AR7200 BX Parameter Menu Tips

AR7200 BX Fine-tuning and Adjustment

Troubleshooting Guide

Limited Warranty

What this Warranty Covers

Details what the warranty covers for the product.

What is Not Covered

Details what is excluded from the product warranty.

Purchasers Remedy

Outlines the buyer's options for warranty claims.

Limitation of Liability

States the limits of Horizon Hobby's liability.

Law

Specifies governing law for the warranty terms.

Warranty and Service Contact Information

FCC Information

IC Information

Compliance Information for the European Union

Exploded View

Horizon Hobby Blade 450 X Specifications

General IconGeneral
BrandHorizon Hobby
ModelBlade 450 X
CategoryToy
LanguageEnglish
