EN
3

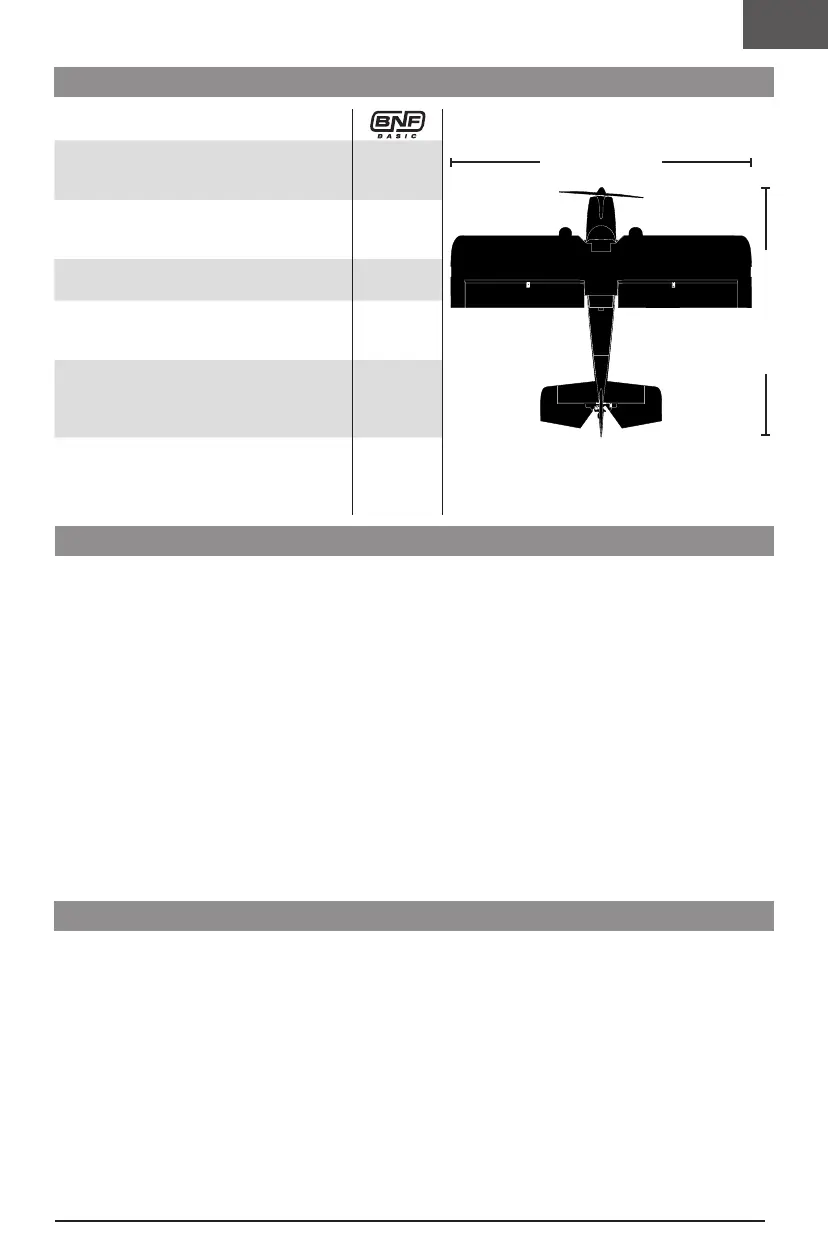

18.5 in (470mm)
27.6 in (700mm)
Safety Precautions and Warnings .....................................2
Included / Recommended Equipment ...............................3
General Binding Tips and Failsafe BNF .............................3
Low Voltage Cutoff (LVC) ..................................................4
Transmitter and Receiver Binding .....................................4
Transmitter Setup ............................................................5
Dual Rates and Expos ......................................................5
SAFE
®
Select Technology .................................................6
Advanced Setup ...............................................................6
ESC/Receiver Arming, Battery Installation and
Center of Gravity ............................................................7
Control Surface Direction .................................................8
AS3X
®
Control Response Test BNF ...................................9
Control Centering .............................................................9
Control Horn Settings .....................................................10
Flying Tips and Repairs ..................................................10
Post Flight Checklist ......................................................10
Power Components Service ...........................................11
Float Installation (Optional) ............................................. 12
AS3X System Trouble Shooting Guide ............................. 13
Troubleshooting Guide .............................................13–14
Replacement Parts .........................................................15
Recommended Parts ......................................................15
Optional Parts and Accessories ......................................15
Important Federal Aviation Administration
(FAA) Information .........................................................16
AMA National Model Aircraft Safety Code .......................16
Limited Warranty .....................................................16–17
Contact Information .......................................................17
FCC Information ............................................................. 18
IC Information ................................................................18
Compliance Information for the European Union ............. 18
Table of Contents
Included / Recommended Equipment
Motor:
Spektrum
™
Brushless Outrunner Motor, 1900Kv,
10-Pole (SPMXAM1208)
Installed
Servo:
Spektrum
™
2.9-Gram Linear Servo Long Throw
(4) (SPMSH2040L)
Installed
Receiver/ESC:
Spektrum
™
Receiver/ESC (SPMA3188)
Installed
Recommended Battery:
Spektrum
™
300mAh 3S 11.1V 30C; JST-RCY
Li-Po (SPMX3003SJ30)
Required
Recommended Battery Charger:
Spektrum
™
S150 AC/DC Smart Charger, 1x50W
(SPMXC1070) with IC3 to JST-RCY adapter
(SPMXCA310)
Required
Recommended Transmitter:
Full-Range 2.4GHz with Spektrum
™
DSM2
®
/
DSMX
®
technology with programmable
mixing and adjustable dual rates
Required
General Binding Tips and Failsafe BNF
• The included receiver has been specifically programmed
for operation of this aircraft. Refer to the receiver manual
for correct setup if the receiver is replaced.
• Keep away from large metal objects while binding.
• Do not point the transmitter’s antenna directly at the
receiver while binding.
• The orange LED on the receiver will flash rapidly when
the receiver enters bind mode.
• Once bound, the receiver will retain its bind settings for
that transmitter until you re-bind.
• If the receiver loses transmitter communication, the
failsafe will activate. Failsafe moves the throttle channel
to low throttle. Pitch and roll channels move to actively
stabilize the aircraft in a descending turn.
• If problems occur, refer to the troubleshooting guide or if
needed, contact the appropriate Horizon Product Support
office.
Without Battery: 5 oz (137g)
With 3S 300mAh Battery: 6 oz (168g)
