To prepare for manual operation
Pull on the cord of the mechanical
▶
release (Figure 4).
Determining the 3.5
end-of-travel positions
If the door cannot be easily moved into
the desired Open or Closed
end-of-travel position.
Note section
▶
3.1!

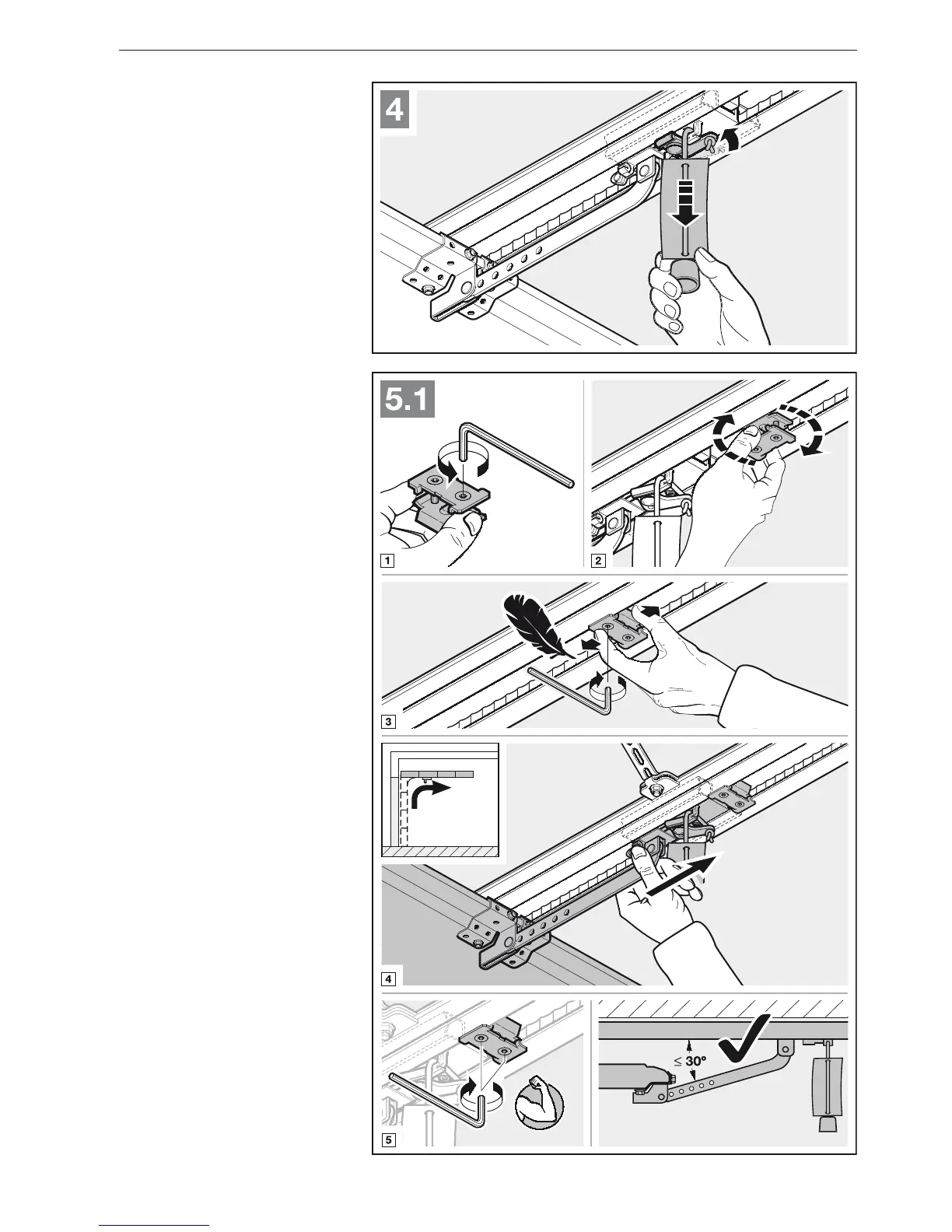

Fitting the 3.5.1 Open end stop
Loosely insert the end stop in the 1.
boom between the slide carriage
and operator.
Push the door into the 2. Open
end-of-travel position by hand.
Fix the end stop.3.
NOTE:
In case the door does not reach the
complete passage height in the
end-of-travel position, the end stop can
be removed so that the integrated end
stop (on the operator head) is used.
