22
TR10A108-B RE / 02.2013

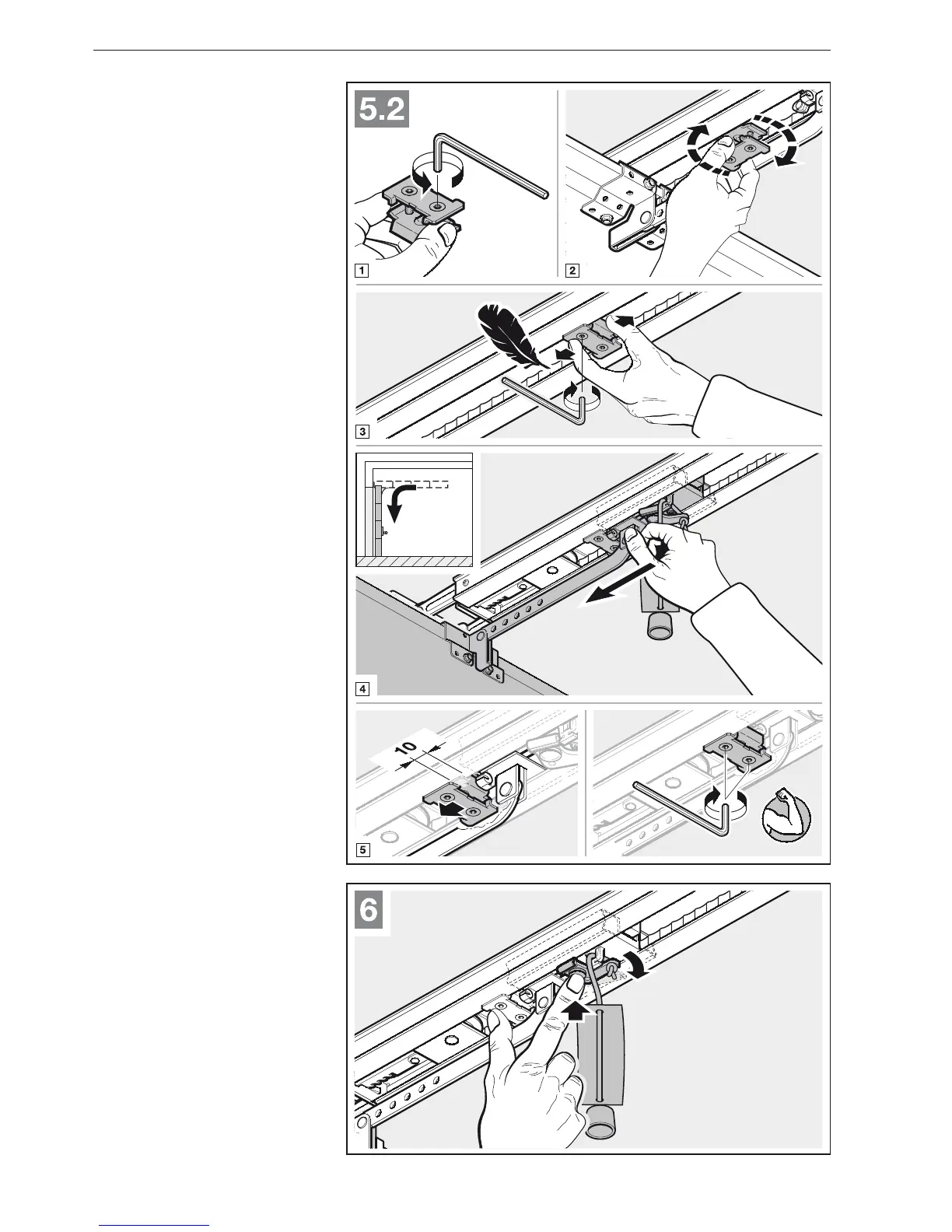

Fitting the 3.5.2 Close end stop
Loosely insert the end stop in the 1.
boom between the slide carriage
and door.
Push the door into the 2. Close end-
of-travel position by hand.
Move the end stop by approx. 3.
10 mm in the Close direction and fix
the end stop.
To prepare for automatic operation
Push the green button on the slide
▶
carriage (Figure 6).
Move the door by hand until the
▶
slide carriage snaps into the belt
lock.
Note the safety instructions in
▶
section 10
– Danger of crushing in the boom
ENGLISH
