Universal adapter print 4.2.8
UAP 1*

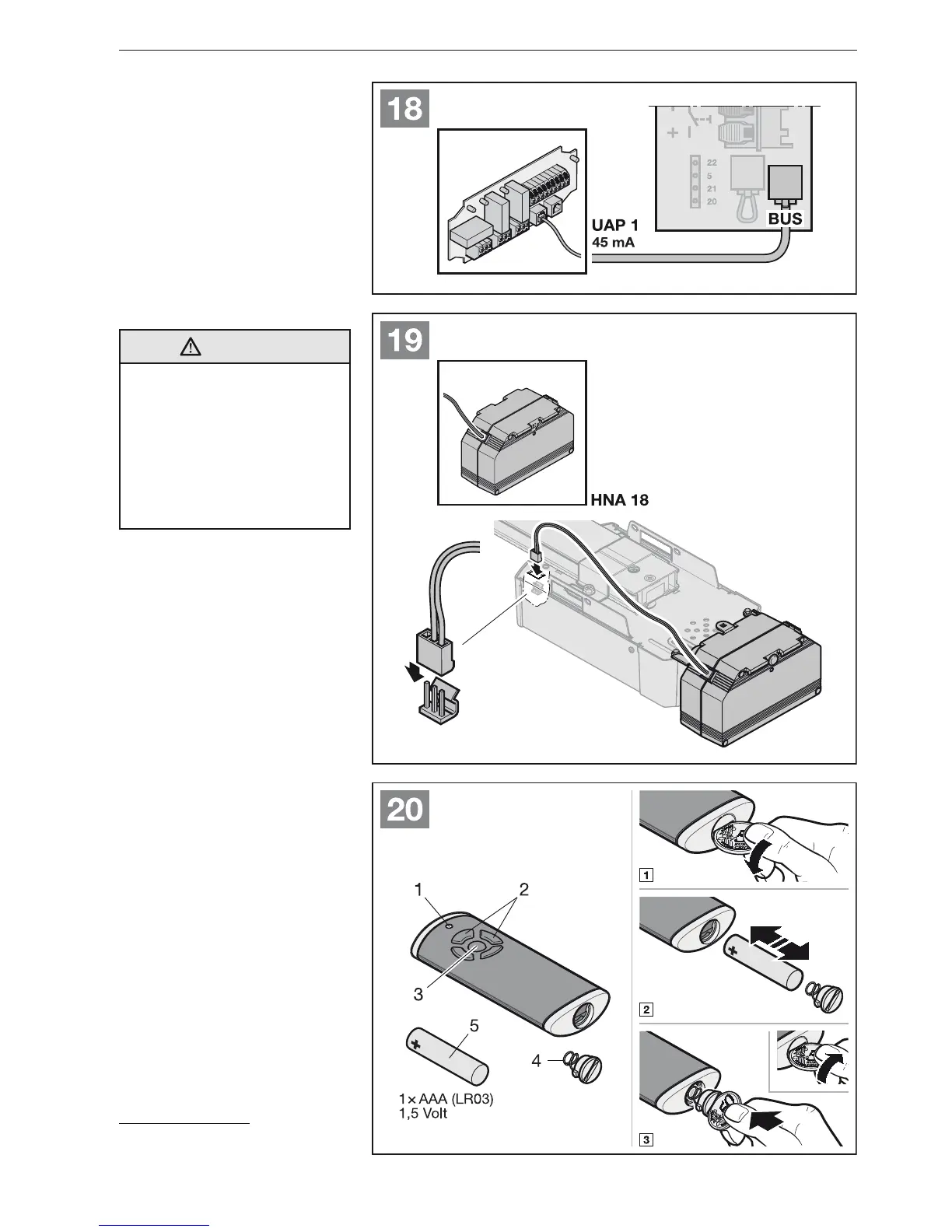

See Figure
▶
18 and section 6.1.7
The universal adapter print UAP 1 can
be used for other additional functions.
Emergency battery HNA4.2.9 18*
See Figure
▶
19
To enable door movement in the event
of a power failure, an optional
emergency battery can be connected.
The system automatically switches
to battery operation. During battery
operation, the operator light remains
switched off.
WARNING
Danger of injury due to unexpected
door travel
Unexpected door travel may occur
when the emergency battery is still
connected despite the mains plug
being pulled out.
Disconnect the mains plug
▶
and
the plug of the emergency battery
whenever performing work on the
door system.
4.2.10 Hand transmitter
See Figure
▶
20
1 LED, multicolour
2 Hand transmitter buttons
3 Status button
4 Battery lid
5 Battery
After inserting the battery, the hand
transmitter is ready for operation.
* Accessory, not included as standard
equipment!
