Hörmann SupraMatic - Safety Devices and Option Relay; Wicket Door Contact and Closing Edge Safety Device; Option Relay HOR 1 for External Lamp

26
TR10A108-B RE / 02.2013

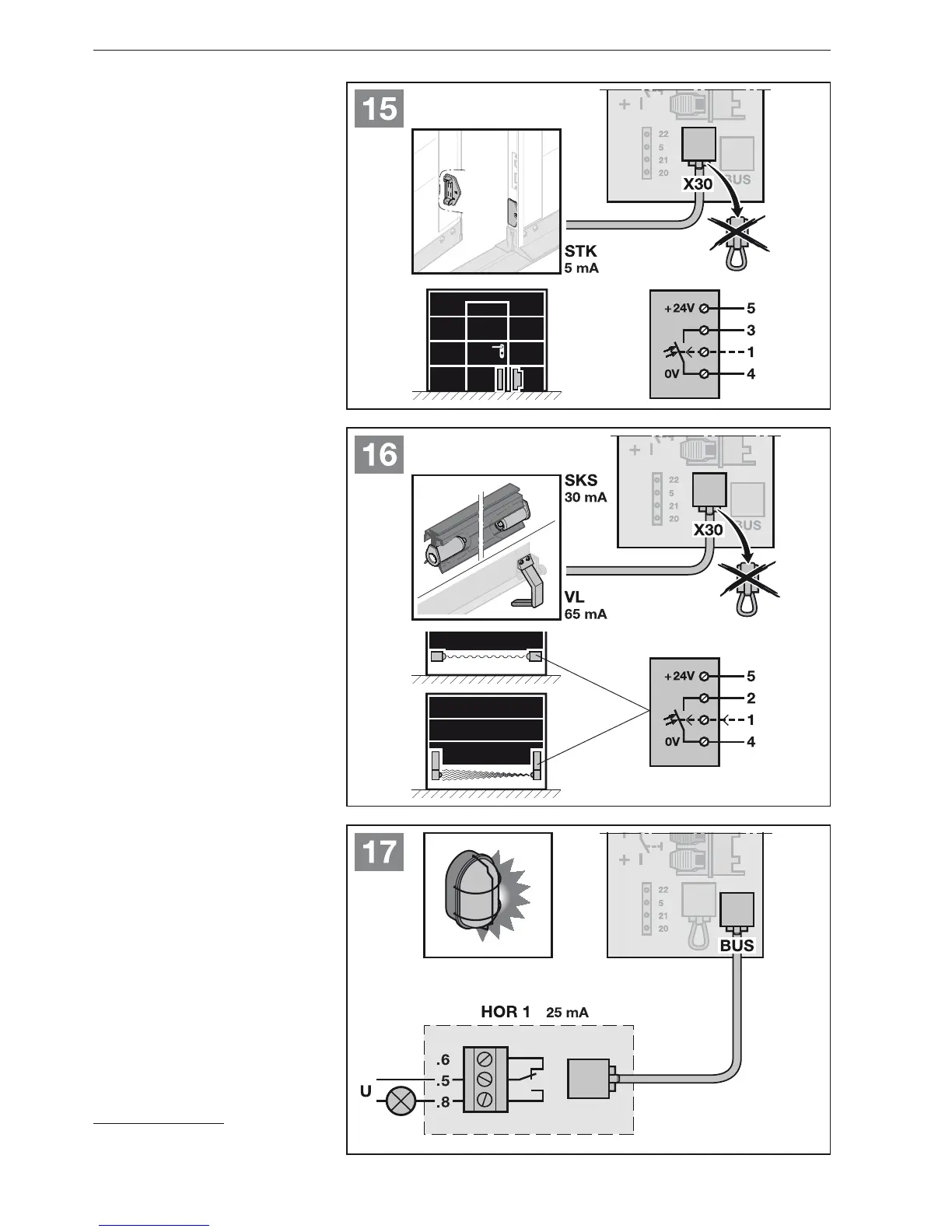

Tested wicket door contact*4.2.5
Connect wicket door contacts that
▶
switch to ground (0 V) as shown in
Figure 15.
Door cycles are immediately halted and
permanently prevented when the wicket
door contact is opened.
Closing edge safety device*4.2.6
Connect closing edge safety
▶
devices that switch to ground (0 V)
as shown in Figure 16.
After the closing edge safety device has
been triggered, the operator stops and
the door reverses in the Open direction.
Option relay HOR4.2.7 1*
See Figure
▶
17 and section 6.1.7
Option relay HOR 1 is required to
connect an external lamp or warning
light.
* Accessory, not included as standard
equipment!
ENGLISH
