TR10A108-B RE / 02.2013
Dear Customer,
We are delighted that you have chosen a quality product from
our company.
About These Instructions1
These instructions are original operating instructions as
outlined in the EC Directive 2006/42/EC. Read through all of
the instructions carefully, as they contain important
information about the product. Pay attention to and follow the
instructions provided, particularly the safety instructions and
warnings.
Please keep these instructions in a safe place and make sure
that they are available to all users at all times.
Further applicable documents1.1
The following documents for safe handling and maintenance
of the door system must be placed at the disposal of the end
user:
These instructionsō
The enclosed test manualō
The garage door operating instructionsō

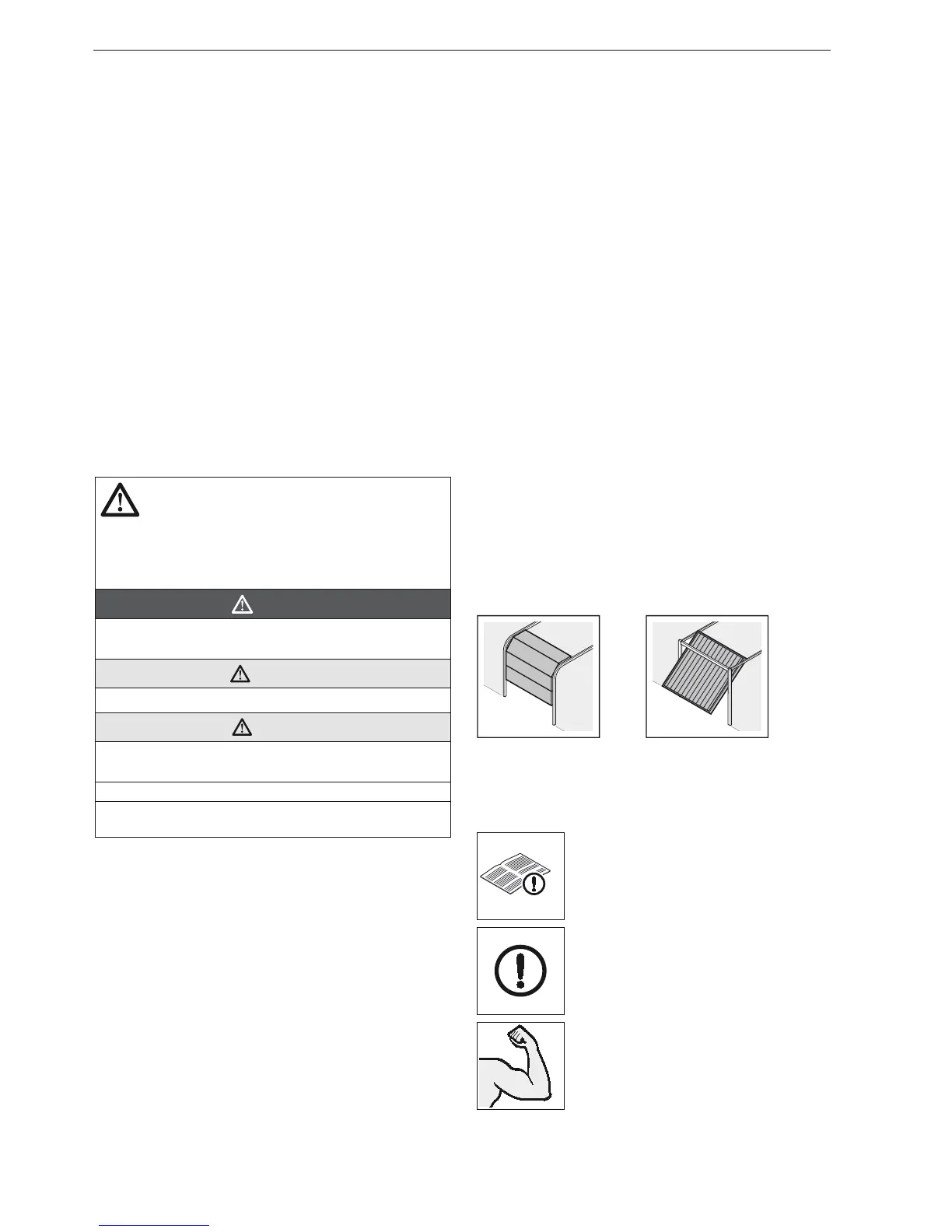

Warnings used1.2
The general warning symbol indicates a danger that
can lead to injury or death. In the text, the general warning
symbol will be used in connection with the caution levels
described below. In the illustrated section, an additional
instruction refers back to the explanation in the text section.
DANGER
Indicates a danger that can immediately lead to death or
serious injuries.
WARNING
Indicates a danger that can lead to death or serious injuries.
CAUTION
Indicates a danger that can lead to minor or moderate
injuries.
ATTENTION
Indicates a danger that can lead to damage or destruction
of the product.
Definitions used1.3
Automatic timer
Automatic closing of the door after a set time has elapsed
and after reaching the Open end-of-travel position or partial
opening.
Impulse sequence control
With each push of the button, the door is started against the
previous direction of travel or the motion of the door is
stopped.
Learning runs
Door runs in which the travel and the forces needed for
moving the door are taught in.
Normal operation
Door travel with the taught-in travel distances and forces.
Safety reversal
Door travel in the opposite direction when the safety device
or power limit is activated.
Reversal limit
If a safety device is activated, the door moves into the
opposite direction (safety reversal) up to the reversal limit
shortly before the Close end-of-travel position. If this limit is
passed, no reversal occurs to ensure that the door reaches
the end-of-travel position in one go.
Partial opening
Individually adjustable second opening height to ventilate the
garage.
Timeout
A defined period in which an action is expected to take place
(e.g. using the menu or activating a function). The operator
automatically goes into operation mode if this period elapses
without an action taking place.
Travel
The distance the door takes to move from the Open end-of-
travel position to the Close end-of-travel position.
Pre-warning time
The time between the travel command (impulse) and the
actual start of travel.
Symbols used1.4
The illustrated section shows how to fit the operator on a
sectional door. Deviations for fitting with an up-and-over door
are also shown. For this purpose, the following letters are
assigned to the figures:
a = Sectional door b = Up-and-over door
All specified dimensions in the illustrated section are in [mm].
Symbols:
2.2
See text section
In the example, 2.2 means:
See text section, section 2.2
Important advice to prevent injury to
persons and damage to property
High exertion of force
ENGLISH
