CHAPTER 11: GENERAL I/O
NOTE:
The datasheet is the first document to refer to
for model-specific information related
to XLE/XLT models such as pin-outs, jumper settings, and other key installation information
.
Visit the website, North America https://hornerautomation.com or Europe http://www.horner-
apg.com, to obtain datasheets, user documentation, and updates.
11.1 Overview
The XLE/XLT is a compact unit that contains high density and very versatile I/O. Using the I/O
properly requires wiring to the proper terminals, configuring jumpers inside the XLE/XLT unit
and configuring Cscape properly. This section will offer some tips and suggestions to configure
the I/O properly. For the register mapping of the I/O, refer to Chapter 14.
11.2 Removing the XLE/XLT Back Cover
Some I/O configurations require jumper settings to be changed inside the XLE/XLT unit.
Examples of these settings are setting positive or negative logic on digital inputs or setting
current or voltage on analog inputs.
Each XLE/XLT I/O jumper is set to a factory default. Refer to the data sheet for your XLE/XLT
model to find the default setting to determine if a jumper change is necessary for your
application.
To remove the back cover of the XLE/XLT, remove the four (4) Phillips screws from the back of
the unit. It may help to place the XLE/XLT unit face down on a clean work surface. Once the
four screws are removed the back cover can be lifted straight off.

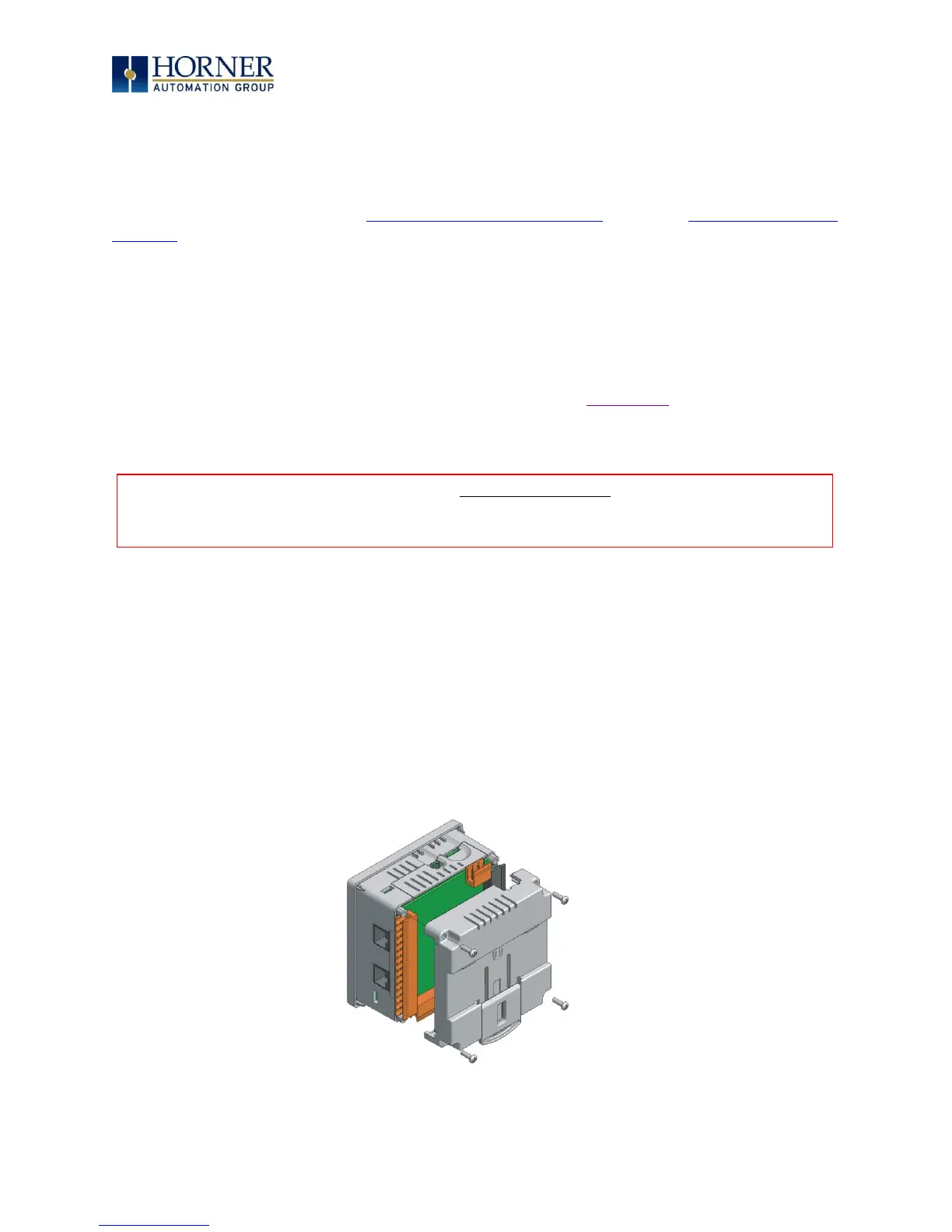

Figure 11.1 – Removing the Back Cover
To Next Page
