Horstmann ChannelPlus H37XL Series 2 User Manual

2
The ChannelPlus H37XL Series 2 Programmer
The simple instructions contained in this user guide are designed to help with the
programming and operation of the unit. Most of the following instructions require the front
ap to be lowered. Please replace the ap when normal operation is required.

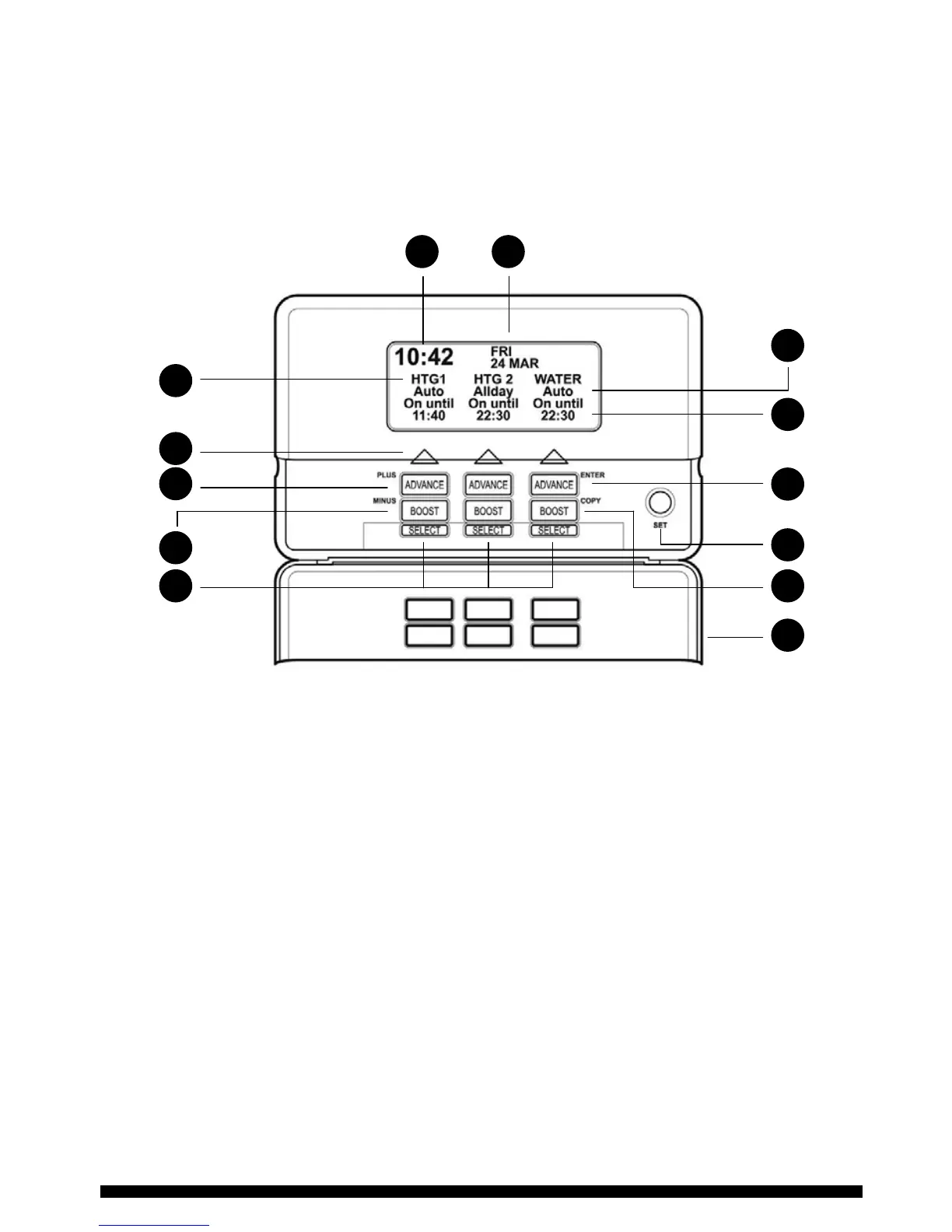

PRODUCT OVERVIEW - DETAIL SHOWN WITH THE FLAP LOWERED
1 Current time of day
2 Day of week and date
3 Channel Heading
4 Current Channel programme
5 Next On/Off time
6 Channel ON indicator
7 ADVANCE and ENTER button ILLUMINATED WHEN ACTIVE
8 ADVANCE and PLUS button ILLUMINATED WHEN ACTIVE
9 BOOST and COPY button ILLUMINATED WHEN ACTIVE
10 BOOST and MINUS button ILLUMINATED WHEN ACTIVE
11 Programme Select buttons (Coloured Blue)
12 SET button (Coloured Green)
13 Front Flap (Lowered)
1
3
6
8
10
11
4
5
7
12
9
13
2

Horstmann ChannelPlus H37XL Series 2 Specifications

General

Category	Thermostat
Display	LCD
Battery Backup	Yes
Mounting	Wall-mounted
Number of Channels	3
Override Function	Yes
Boost Function	Yes
Holiday Mode	Yes
Control Type	Digital
Temperature Range	5°C to 30°C
Model	ChannelPlus H37XL Series 2
Type	Programmable thermostat
Programming	7-day programming
Power Supply	230V AC
Compatibility	Central heating systems
