Horton 2000B Series - C2150 Initialization (Learn Cycle Cont.)

Open Cycle
-Open Speed
-Motor Braking
-Open cUshion
-Time Delay
-Close Speed
-Close Check
-Close cUshion
Close Cycle
-The display starts with:
-The display returns to:
The following cycles are carried out automatically by the C2150 control
-If the above cycle check is OK and there are no parameters to be changed or an
autolock to setup, this concludes the C2150 initialization.
-Open Check
*
*
Braking may overide open check display
The closing speed should not exceed the rate of 1 ft / sec
IF THERE IS ANY DIFFICULITY SEE APPENDIX A
-If the display switches to something besides (dA or 2d) and the door
refuses to do any thing else....
CHECK
-The green TOG SW indicator on the control should be on.
-The toggle switch should be turned on.(between 8 & 9 on CN2)
-If there are SO panels, be sure the magnetic reed switches on
the breakouts are closed.

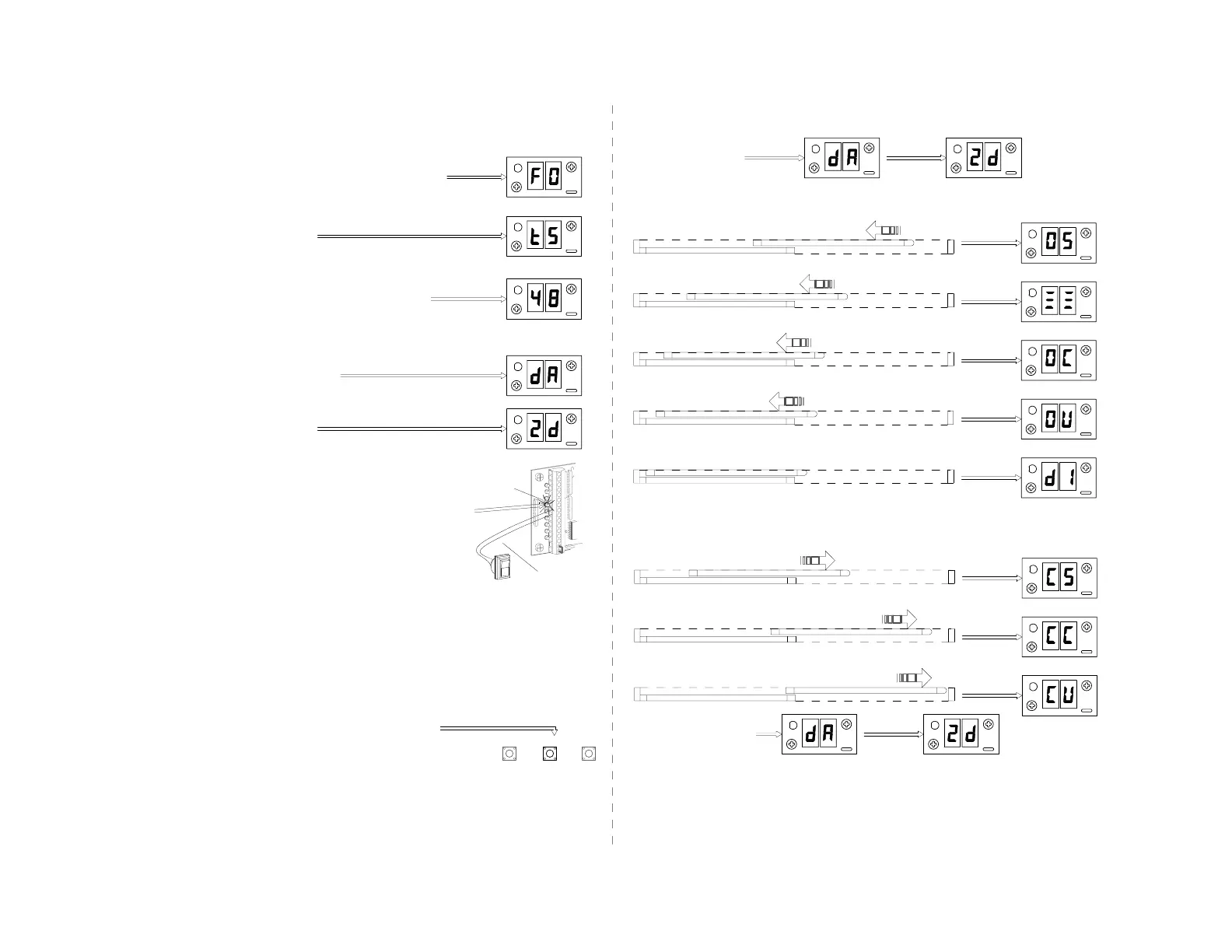

The chart at the right shows the position of the door and the display code for each
position.
Inspect the unit for smooth operation, free of binds and excessive noise.
IF ANY OF THE CODES DEVIATE FROM THOSE SHOWN SEE APPENDIX B
When the toggle switch is on, the DOWN button acts as an actuation device.
The door will move - Be sure the safety beam area is clear of obstructions.
Activation devices should not yet be installed.
Start with the door in the closed position.
Press the DOWN button to actuate the door to open at factory selected
default settings.
2.189d
8th Step -Checking door cycle
UP
SET
DOWN
Toggle
circuit
-If the stroke on the display is not the same as the actual stroke
of the door,the wrong series type may have been selected.
In versions 2.19 or later...
-The display 2d (2-way daytime mode).
In versions prior to 2.19...
-The display will switch to dA (dAytime mode).
-The display will show F0(Finding Open). The door will travel
slowly open until it reaches full stroke. The stroke will be
displayedininches.
-TS is displayed indicating Total Stroke.
2. C2150 INITIALIZATION (learn cycle cont.)
7th Step - Day mode
6th Step - Finding Open
D4
+100
R
R
+100
+100
+100
R
+100
R
R
H202.3
