III. Technical Information

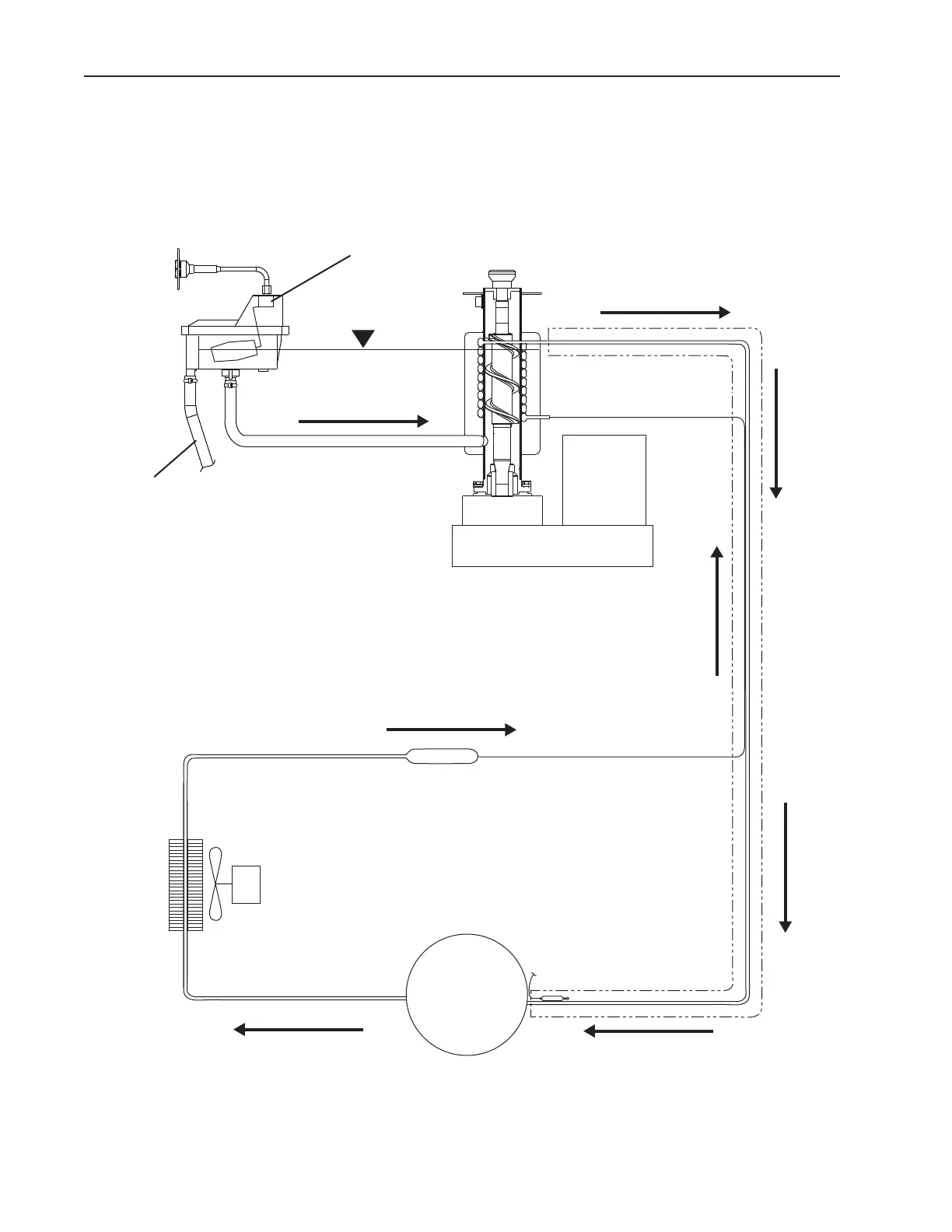

A. Water Circuit and Refrigeration Circuit
1. C-100BAF Series
Drier
Condenser
Fan Motor
Condenser
Compressor
Float-Operated
Water Valve
Water
Reservoir
Water Level
Suction
Temperature
Safety
Gear
Motor
Evaporator
Assembly
Water Inlet
Water Supply
Fig. 3
Capillary Tube
Overow Hose
Suction
Discharge
