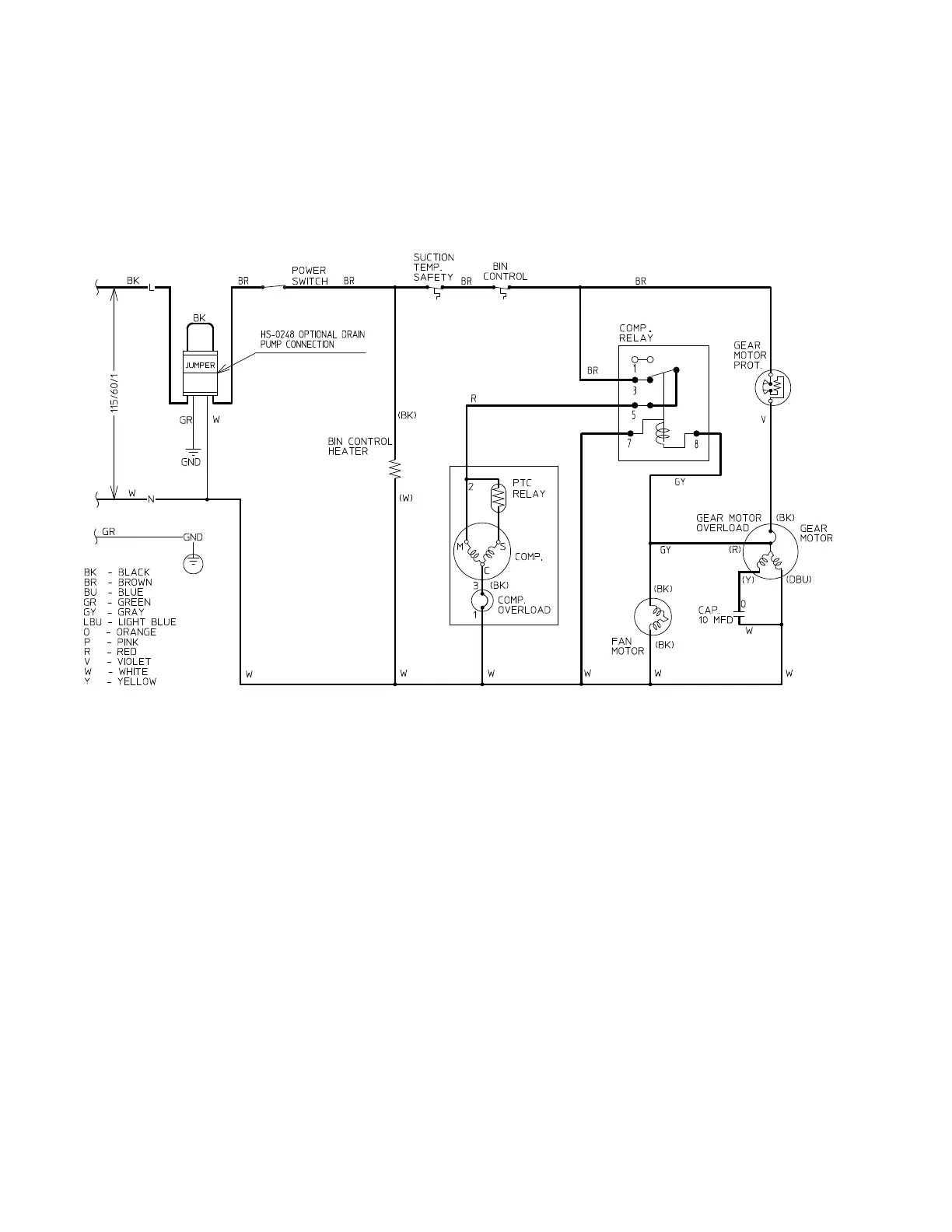

3. Sequence Wiring Diagram
a) Freeze Cycle
Power supplied. Gear motor, fan motor, compressor relay, and compressor energize. The
oat-operated water valve allows water into the reservoir as needed to continue the ice
making process.
C-100BAF Series
(3W)
(external
overload
2.4~3.0A)
(internal)
(external)
