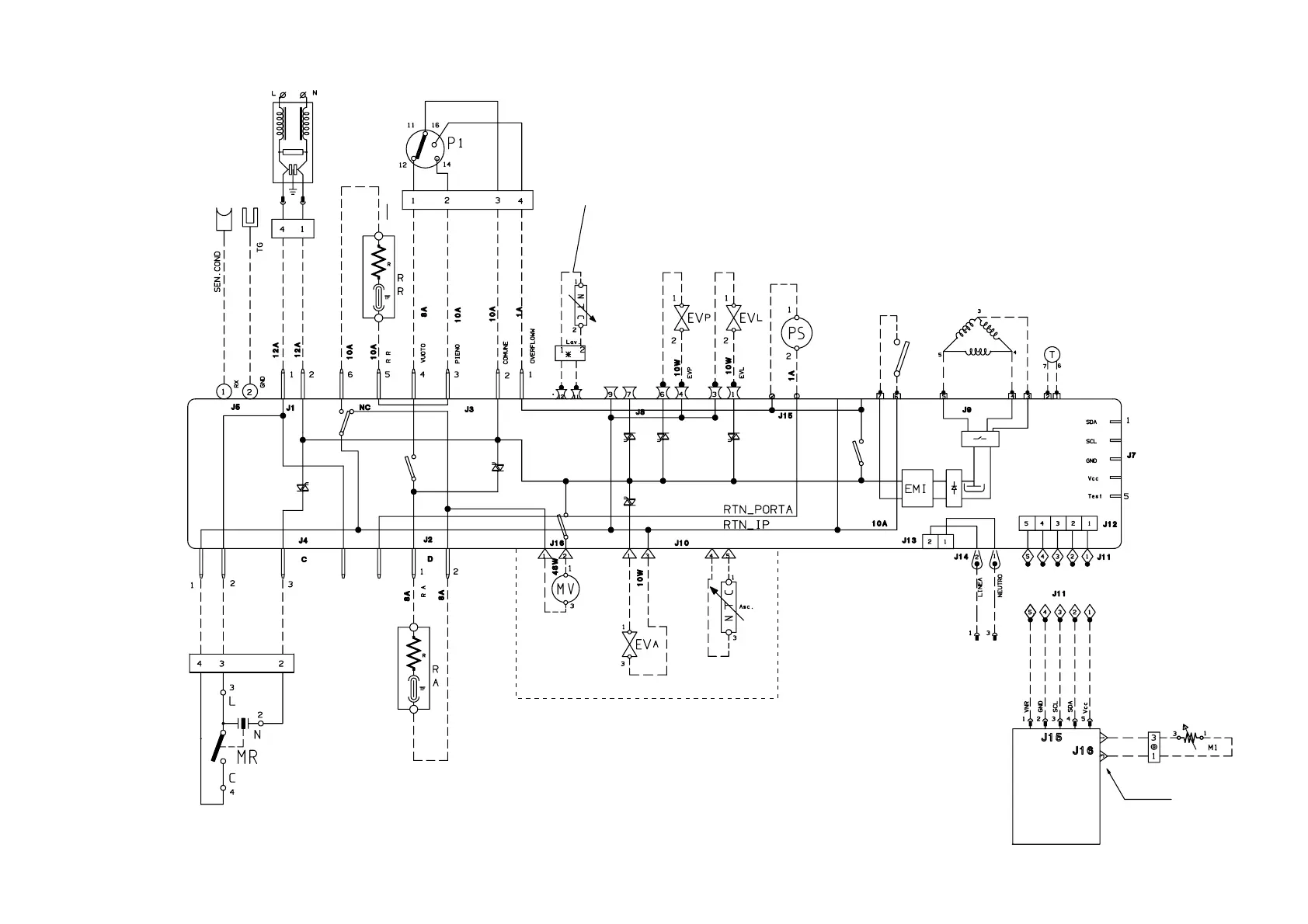

WIRING DIAGRAM - After Date Code 46
Mains Input
Filter
Pressure
Switch
Wash
Thermistor
Water Valves
Pre-Wash
Main Wash
Cold
Pump
Wash Motor
Thermal
Protector
3 Phase
Wash Motor
Tacho
LCD
Display
Module
Connector Tab
Fan
Door
Interlock
Cold Valve
Thermistor
Condenser Tumble Dryer
EMPTY
FULL
OVERFLOW
COMMON
5407171wd1_dc46on.pdf
