33
DISMANTLING INSTRUCTIONS
SAFETY NOTES
1. Ensure that the appliance is disconnected from the electrical supply before dismantling.
2. Beware of sharp edges on metal panels, plastic mouldings, and pressed parts.
3. Some fixings (especially those into plastic) must be tightened to the correct specification using a
suitable torque wrench.
4. Insulation resistance tests must be carried out with the pressure switch set to ensure that the
water heater is 'in-circuit' during the test.
This appliance is manufactured with a '3 phase' motor and uses a different type of power
module. This power board is fitted with a large aluminium heat sink which remains live
after the power is disconnected.
Under no circumstances should the board be removed under the time shown below.
Alternative 'quick methods' of discharging the board SHOULD NOT be used or attempted.
A Table Top
1. Remove the two screws at the top rear of cabinet.
2. Slide the table top backwards to disengage the location fixings at the rear and lift off.
B Lower Rear Access Panel
1. Remove three screws from the lower rear access panel.
2. Pull the top edge of the panel out and disengage it from its location fixings along the bottom.
C Dispenser Drawer
1. Open the dispenser drawer fully. Press release latch in centre of drawer and pull drawer body
and pull drawer away from console.
D Console Panel
1. Remove the table top (A) and dispenser drawer (C).
2. Remove two top screws securing console to cabinet and two screws securing console to
dispenser.
3. Unplug wiring from console PCB - taking note of position.
4. Slide dispenser back.
5. Unclip two plastic lugs securing console panel to front panel and lift clear.
6. Avoid unclipping and handling the control board unless absolutely necessary, as the control
board is susceptible to static electricity.
IMPORTANT NOTE
Risk of Electric Shock

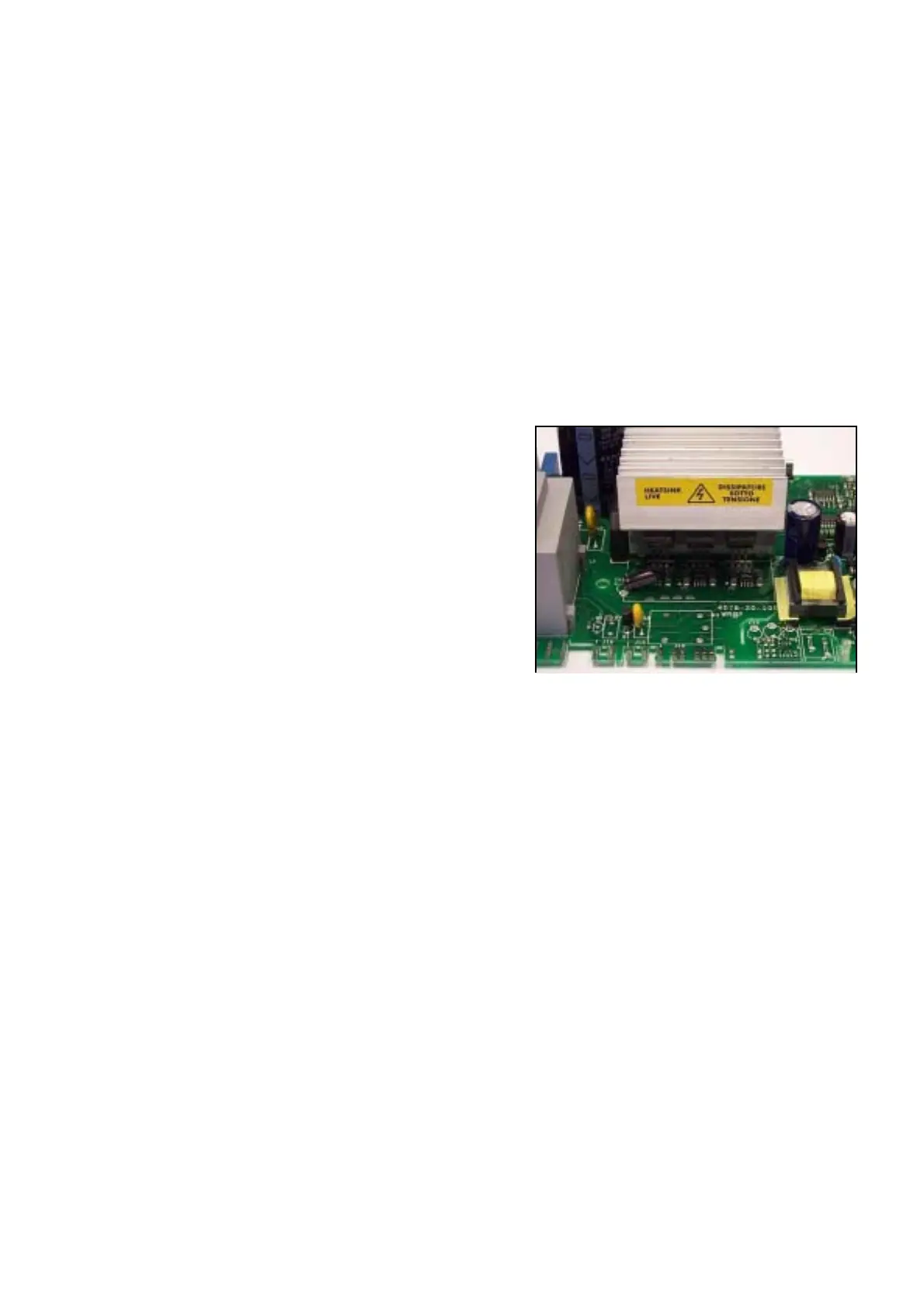

The metal heatsink fitted on the Power Module
may hold an electrical charge for a short
period after switching off the machine.
Allow 5 minutes after disconnecting the
machine from the electrical supply before
commencing ANY work.
