Note 2:
New hinges are supplied
with a Temporary
Locking Pin.
DO NOT REMOVE these
pins until after full
re-assembly.

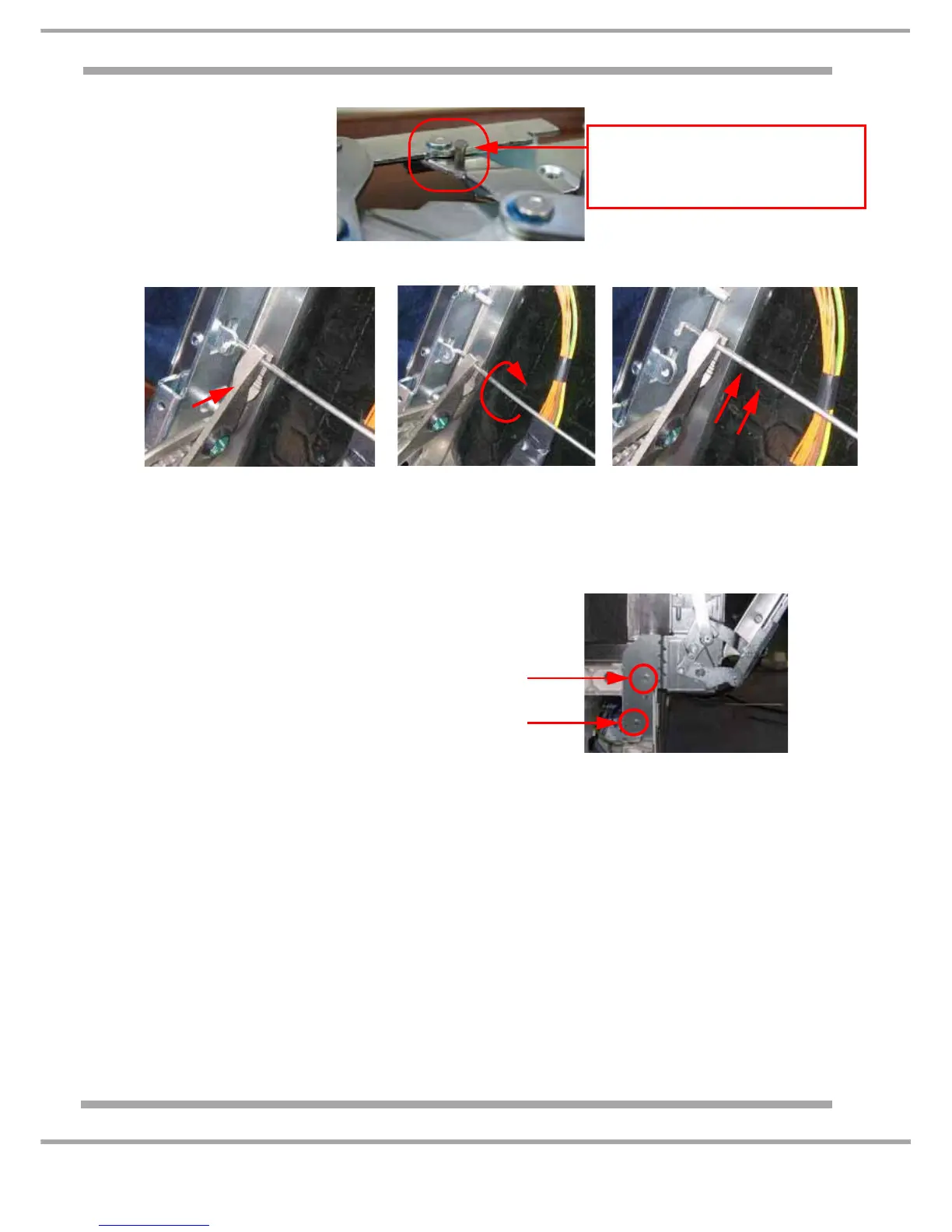

3. Using pliers take off the tie rod, turning it around its fastening.
4. Disconnect the Earth Tags (Fastons) located on the hinges.
5. Remove 4 screws (2 in each side) fixing the inner door and pull out.
6. Pull the inner door upwards.
7. Remove the screws** located on the inner part of the dishwasher, fixing the hinges to the wash tank.
**Note: One screw each side.
8. Remove 4 screws - 2 per hinge - at
the base of the dishwasher.
9. Fit the new hinges in reverse order. Also refit both Earth Tags and make sure they are secure.
The final action is to remove both Temporary Locking Pins as shown in (2) above.
Each NEW hinge is locked in position
by a temporary pin. DO NOT REMOVE
until BOTH hinges are fixed to the
Door and Dishwasher body.
Remove
2 screws
each side
To Next Page
