Service Information
DOOR PANEL REMOVAL
I)
½ Turn
II) III)
C
B
I)
II)
=
* 1
A

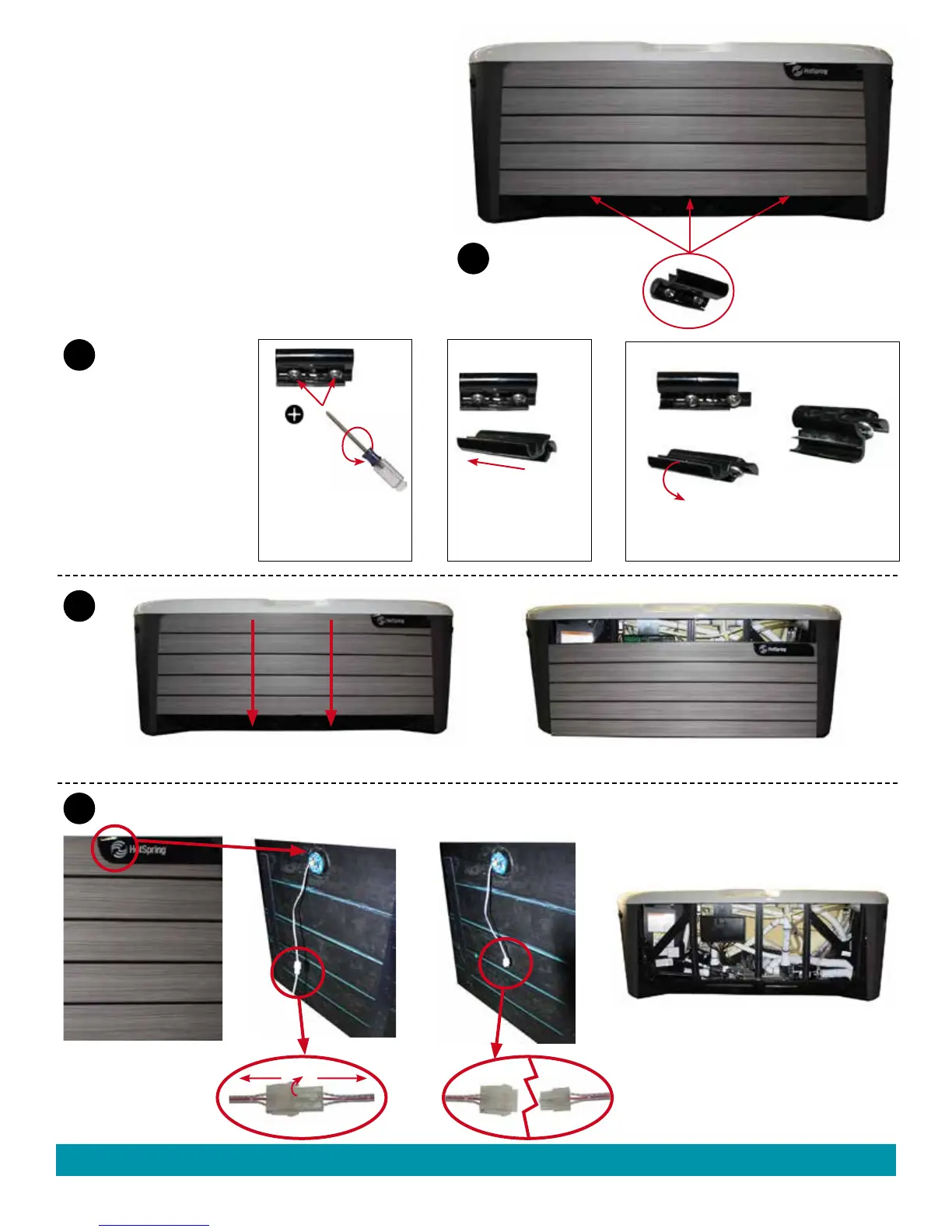

Locate the 3 clips
A,B & C
Start with clip
A and perform
the following
instructions, then
repeat in order for
steps B and C
* 2
Slide clip to left until it
stops
Loosen
screws ½
turn ONLY.
DO NOT
Remove Screws
Grab both ends of clip and rotate downward
* 3
Grab panel on bottom edge and lower Set panel on ground (go to Step 4)
* 4
Disconnect logo light
wire from back side of
door panel
Remove panel from spa and place in cool
shaded place
Use the following instruction to remove the front door panel
below the docking station.
When replacing the door, reverse the order making sure the
Logo is seated in the top right corner of the spa as illustrated
in Step 1.
