HotSpring HIGHLIFE Series Pre-Delivery Instructions

x Page x x
81" (205.7 cm)
52" (132.1 cm)
7 " (17.8 cm)
34 " (86.4 cm)
38" (96.5 cm)
46.5" (118 cm) 46.5" (118 cm)
91" (231.1 cm)
13"
(33 cm)
28 " (71 cm)
11.5"
(29.2 cm)
30" (76.2 cm)
93" (236.2 cm)
ENVOY
28" (71 cm)
28" (71 cm)
40" (101.6 cm)
49" (124.5 cm)
65" (165.1 cm)
28" (71.1 cm)
6" (15.2 cm)
15"
(38 cm)
81" (205.7 cm)
52" (132.1 cm)
7 " (17.8 cm)
34 " (86.4 cm)
38" (96.5 cm)
46.5" (118 cm) 46.5" (118 cm)
91" (231.1 cm)
13"
(33 cm)
28 " (71 cm)
11.5"
(29.2 cm)
30" (76.2 cm)
93" (236.2 cm)
ENVOY
28" (71 cm)
28" (71 cm)
40" (101.6 cm)
49" (124.5 cm)
65" (165.1 cm)
28" (71.1 cm)
6" (15.2 cm)
15"
(38 cm)
ENVOY

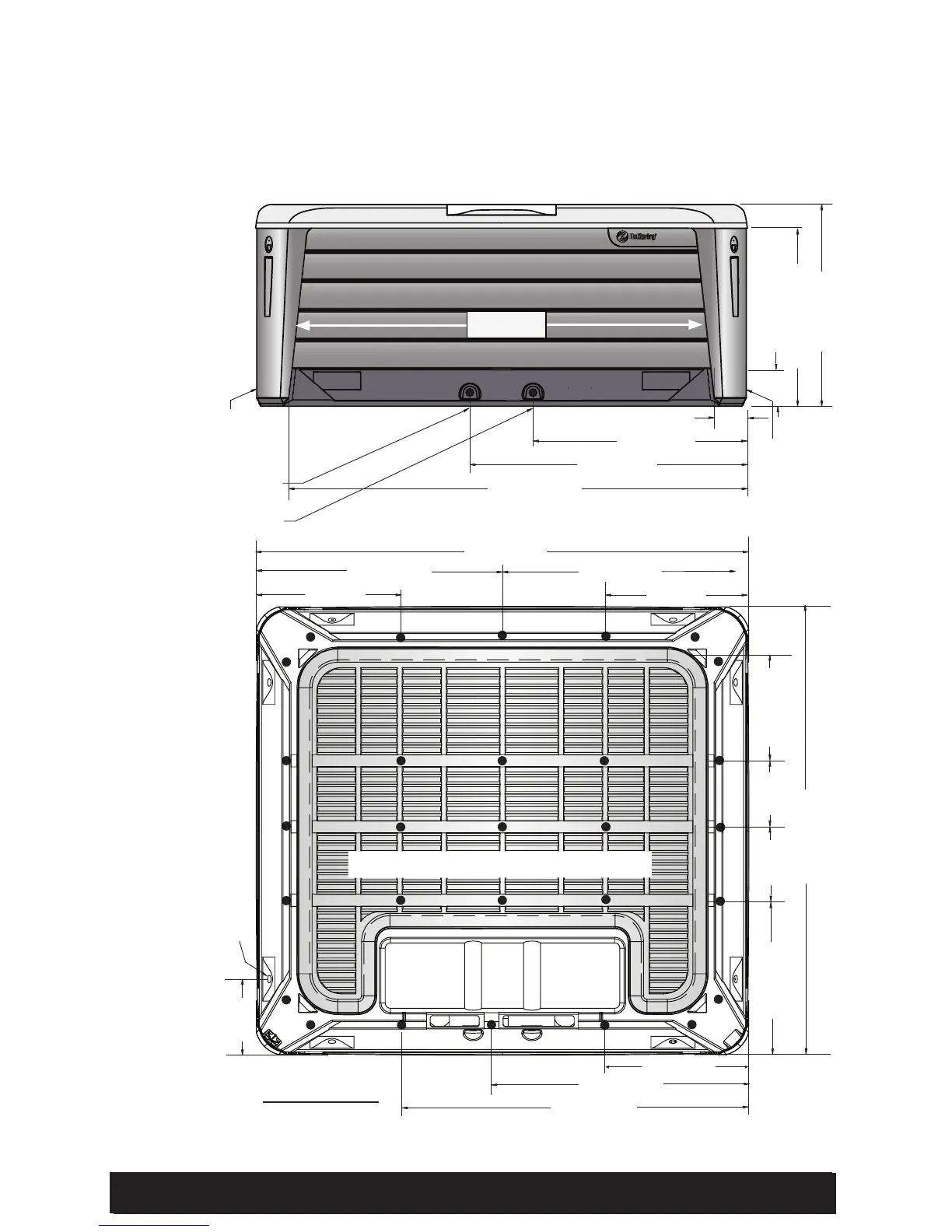

Dimensions
NOTE: All dimensions are approximate; measure your spa
before making critical design or pathway decisions.
(Front view)
(Bottom view)
•
29 leveling points (place shims at illustrated locations).
DOOR SIDE
x Page x xPre-Delivery Instructions Page 6
MAIN DRAIN
SECONDARY DRAIN
UPSIDE DOWN VIEW OF SPA
DOOR
ELECTRICAL
CONNECTION
2.5" (6.4 cm)
Height from
ground)
ELECTRICAL
CONNECTION
2.5" (6.4 cm) Height
from ground)
Electrical Connection
(Both sides)

HotSpring HIGHLIFE Series Specifications

General

Water Care System	FreshWater Salt System
Lighting	LED lighting
Pump	Varies by model
Filtration System	Tri-X filter
Warranty	Varies by model (5-7 years)
Jet Count	Varies by model (approx. 35-50 jets)
