HotSpring HIGHLIFE Series Pre-Delivery Instructions

x Page x x
74" (188.0 cm)
49" (124.5 cm)
7 " (17.8 cm)
32 " (81.3 cm)
36" (91.4 cm)
87" (220 cm)
14"
(35.6 cm)
26.75 " (67.9 cm)
11"
(27.9 cm)
Aria
37" (94.0 cm)
6" (15.2 cm)
43" (109.2 cm)
64.5" (163.8 cm)
21.5" (54.6 cm)
87.0" (220 cm)
15"
(38 cm)
MAIN DRAIN
SECONDARY DRAIN
UPSIDE DOWN VIEW OF SPA

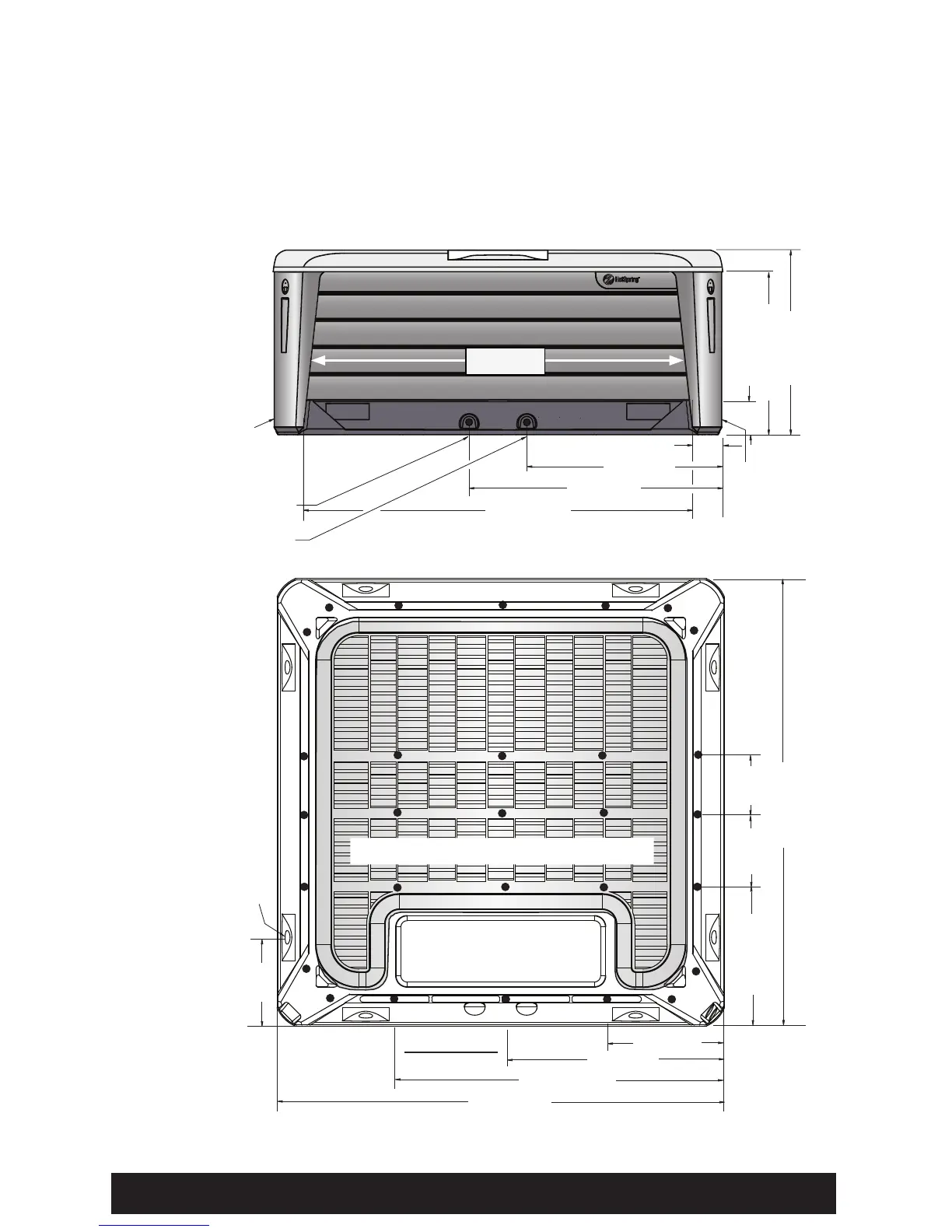

VANGUARD & ARIA
Dimensions
NOTE: All dimensions are approximate; measure your spa
before making critical design or pathway decisions.
(Bottom view)
ELECTRICAL
CONNECTION
2.5" (6.4 cm) Height
from ground)
ELECTRICAL
CONNECTION
2.5" (6.4 cm)
Height from
ground)
(Front view)
Electrical Connection
(Both sides)
•
29 leveling points (place shims at illustrated locations).
Page 7 Pre-Delivery Instructions
DOOR
DOOR SIDE

HotSpring HIGHLIFE Series Specifications

General

Water Care System	FreshWater Salt System
Lighting	LED lighting
Pump	Varies by model
Filtration System	Tri-X filter
Warranty	Varies by model (5-7 years)
Jet Count	Varies by model (approx. 35-50 jets)
