68" (172.5 cm)
45" (114.5 cm)
7 " (17.8 cm)
29 " (74 cm)
33" (84 cm)
93" (236 cm)
24.5" (62 cm)22 " (56 cm)
20" (51 cm)
Sovereign
35" (89 cm)
6" (15.2 cm)
38" (96.5 cm)
55" (140 cm)
21" (53 cm)
80" (203 cm)
15"
(38 cm)
SOVEREIGN

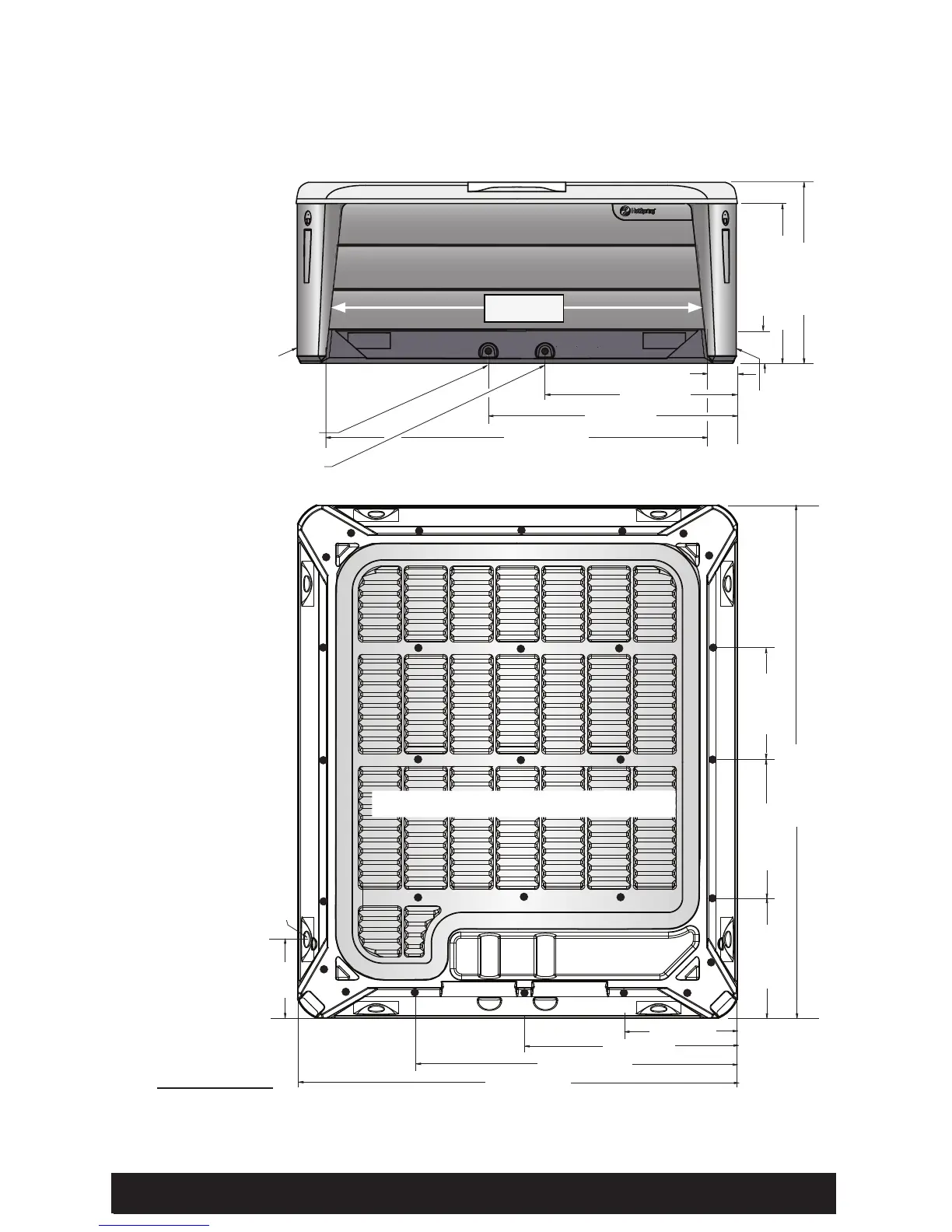

Dimensions
NOTE: All dimensions are approximate; measure your spa
before making critical design or pathway decisions.
(Front view)
(Bottom view)
DOOR SIDE
MAIN DRAIN
SECONDARY DRAIN
ELECTRICAL
CONNECTION
2.5" (6.4 cm) Height
from ground)
Electrical Connection
(Both sides)
ELECTRICAL
CONNECTION
2.5" (6.4 cm)
Height from
ground)
UPSIDE DOWN VIEW OF SPA
•
29 leveling points (place shims at illustrated locations).
DOOR
Pre-Delivery Instructions Page 8
