93" (236 cm)
23.5" (59.9 cm)21" (53.5 cm)23" (58.5 cm)
74" (188 cm)
22" (56 cm)
Triumph
14.75"
(37.5 cm)
7 " (17.8 cm)
29 " (73.6 cm)
33" (83.8 cm)
87" (221 cm)
51" (129.5 cm)
41" (104 cm)
6" (15.2 cm)
15"
(38 cm)
37" (94 cm)
19" (48 cm)

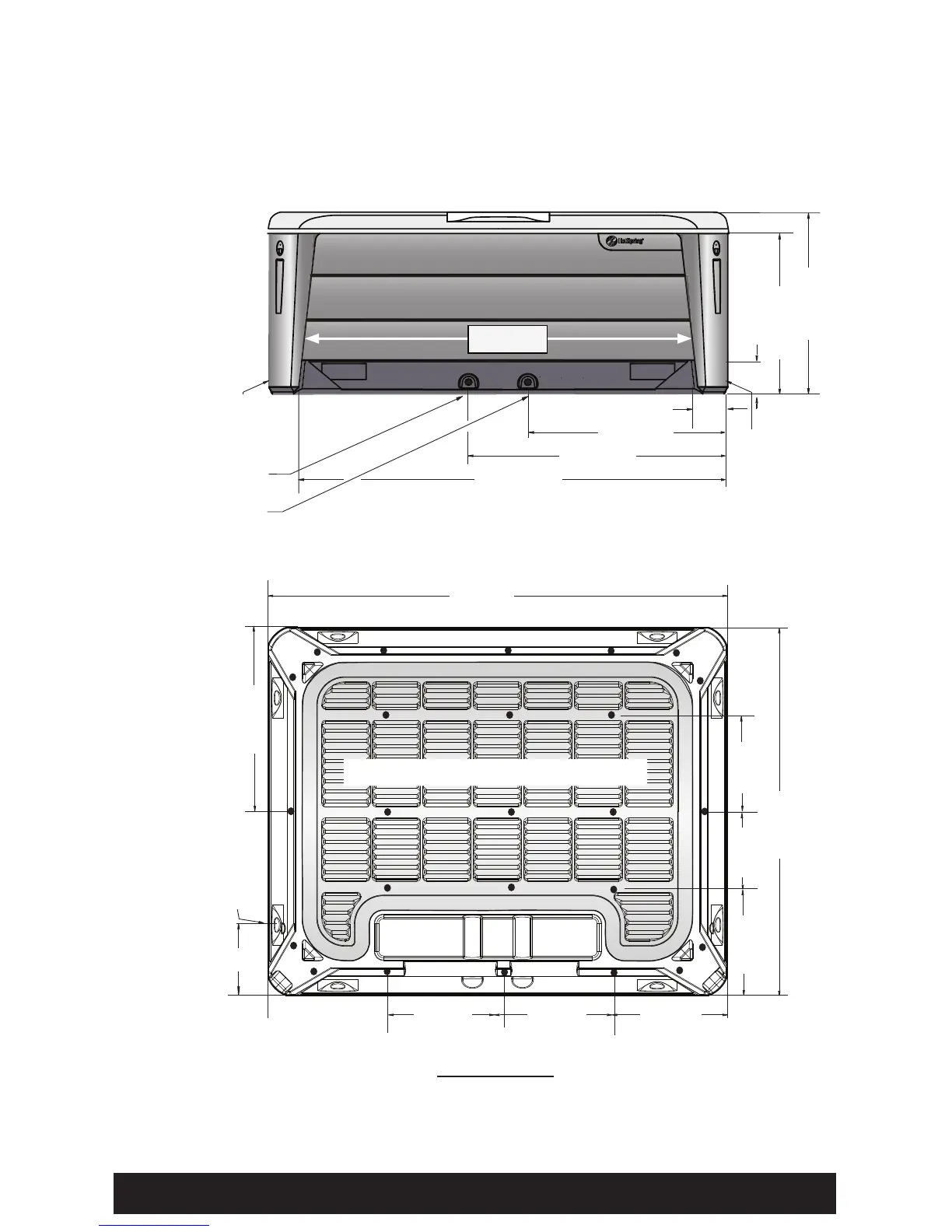

TRIUMPH
Dimensions
NOTE: All dimensions are approximate; measure your spa
before making critical design or pathway decisions.
ELECTRICAL
CONNECTION
2.5" (6.4 cm)
Height from
ground)
DOOR SIDE
(Front view)
(Bottom view)
MAIN DRAIN
SECONDARY DRAIN
ELECTRICAL
CONNECTION
2.5" (6.4 cm) Height
from ground)
Electrical Connection
(Both sides)
UPSIDE DOWN VIEW OF SPA
•
25 leveling points (place shims at illustrated locations).
DOOR
