Pre-Delivery Instructions Page 6
PACE
™
(Model PAC)

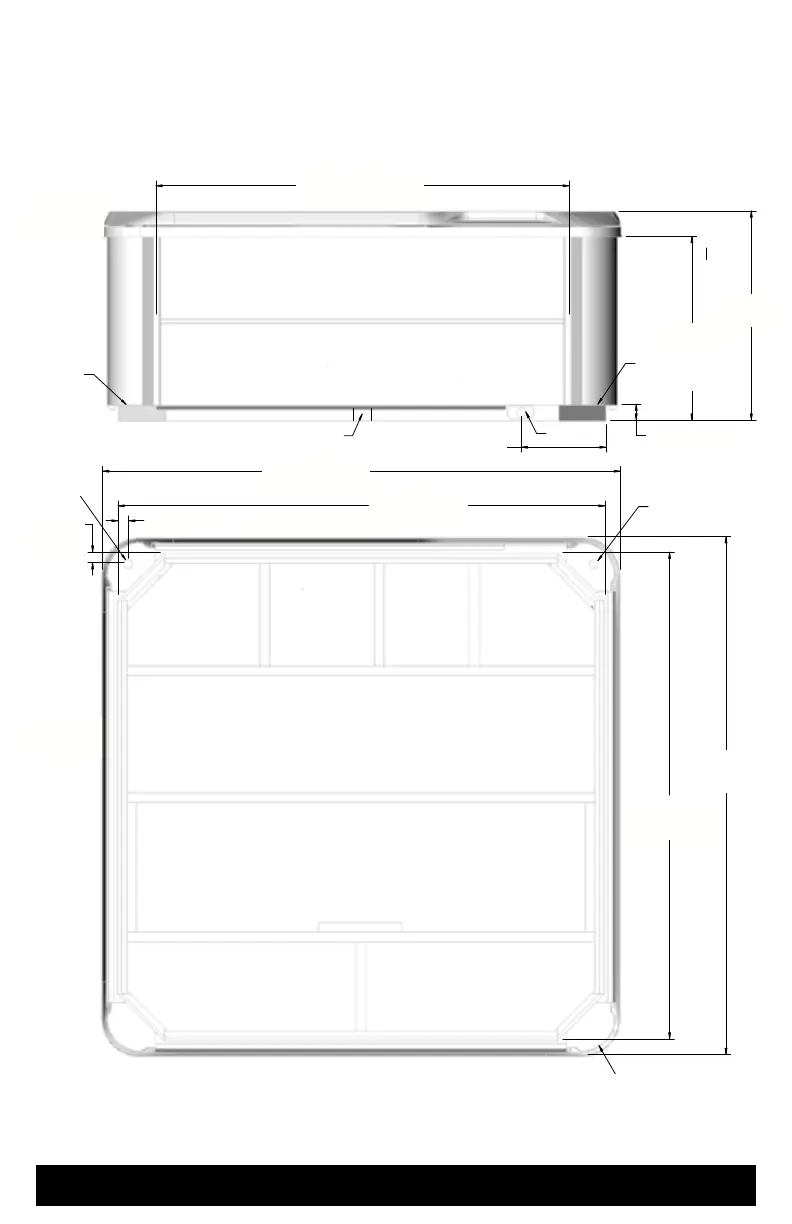

Dimensions
NOTE: All dimensions are approximate; measure your spa before making critical design or
pathway decisions. Configuration and location may change without notice.
NOTE: WATKINS WELLNESS recommends that the PACE be installed on a minimum 4” (10.2 cm) thick reinforced
concrete pad or structurally sound deck able to support the “dead weight” found in the spa specification chart.
IMPORTANT: THE PACE MUST NOT BE SHIMMED IN ANY MANNER.
ELECTRICAL
CUTOUT
ELECTRICAL
CUTOUT
DOOR PANEL
65.25" (165.7 cm)
29"
(73.7 cm)
33"
(83.8 cm)
DRAIN
2.5" (6.4 cm)
13.5" (34.1 cm)
FRONT
VIEW
AIR VENTS BELOW DOOR - DO NOT BLOCK
RADIUS
5.5" (13.8 cm)
OVERALL
82" (208 cm)
PEDESTAL
77" (195.3 cm)
DOOR SIDE
OVERALL
82" (208 cm)
PEDESTAL
77" (195.3 cm)
BOTTOM
VIEW
ELECTRICAL
CUTOUT
ELECTRICAL
CUTOUT
ELECTRICAL CUTOUT (CENTER)
1.70"
(4.3 cm)
1.70" (4.3 cm)
