Page 9 Pre-Delivery Instructions
TX
(Model TX)

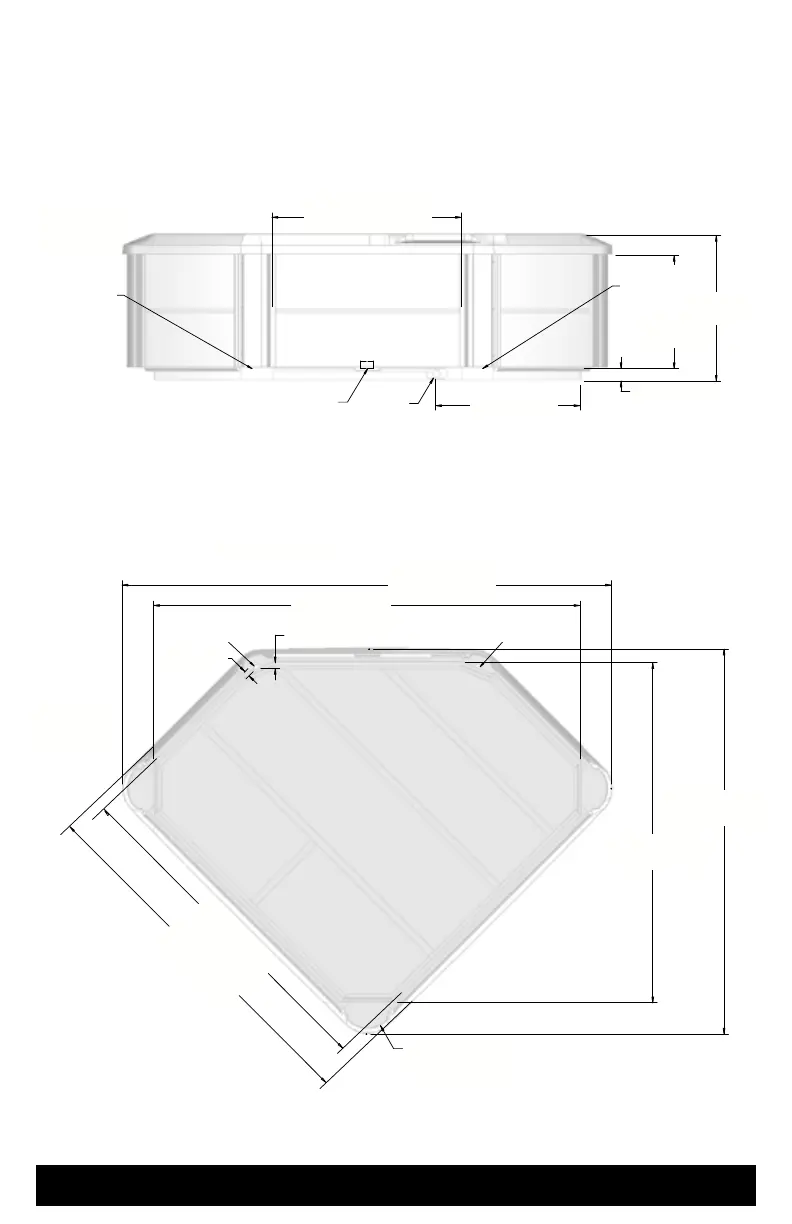

Dimensions
NOTE: All dimensions are approximate; measure your spa before making critical design or
pathway decisions. Configuration and location may change without notice.
NOTE: WATKINS WELLNESS recommends that the TX be installed on a minimum 4” (10.2 cm) thick reinforced
concrete pad or structurally sound deck able to support the “dead weight” found in the spa specification chart.
IMPORTANT: THE TX MUST NOT BE SHIMMED IN ANY MANNER.
DOOR PANEL
37.75" (95.7 cm)
ELECTRICAL
CUTOUT
ELECTRICAL
CUTOUT
ELECTRICAL
CUTOUT
DRAIN
2.5" (6.4 cm)
22.5"
(57.2 cm)
29"
(73.7 cm)
27.8" 72.9 cm)
FRONT
VIEW
AIR VENTS BELOW DOOR
DO NOT BLOCK
OVERALL
97.5" (247.3 cm)
ELECTRICAL
CUTOUT
ELECTRICAL
CUTOUT
PEDESTAL
85" (215.5 cm)
OVERALL
76.5" (194.5 cm)
PEDESTAL
67.5" (171.5 cm)
RADIUS
5.5" (13.8 cm)
1" (2.9 cm)
1" (2.9 cm)
DOOR SIDE
BOTTOM
VIEW
OVERALL
72" (183 cm)
PEDESTAL
67.5" (171.5 cm)
