Pre-Delivery Instructions Page 8
SX
(Model SX)

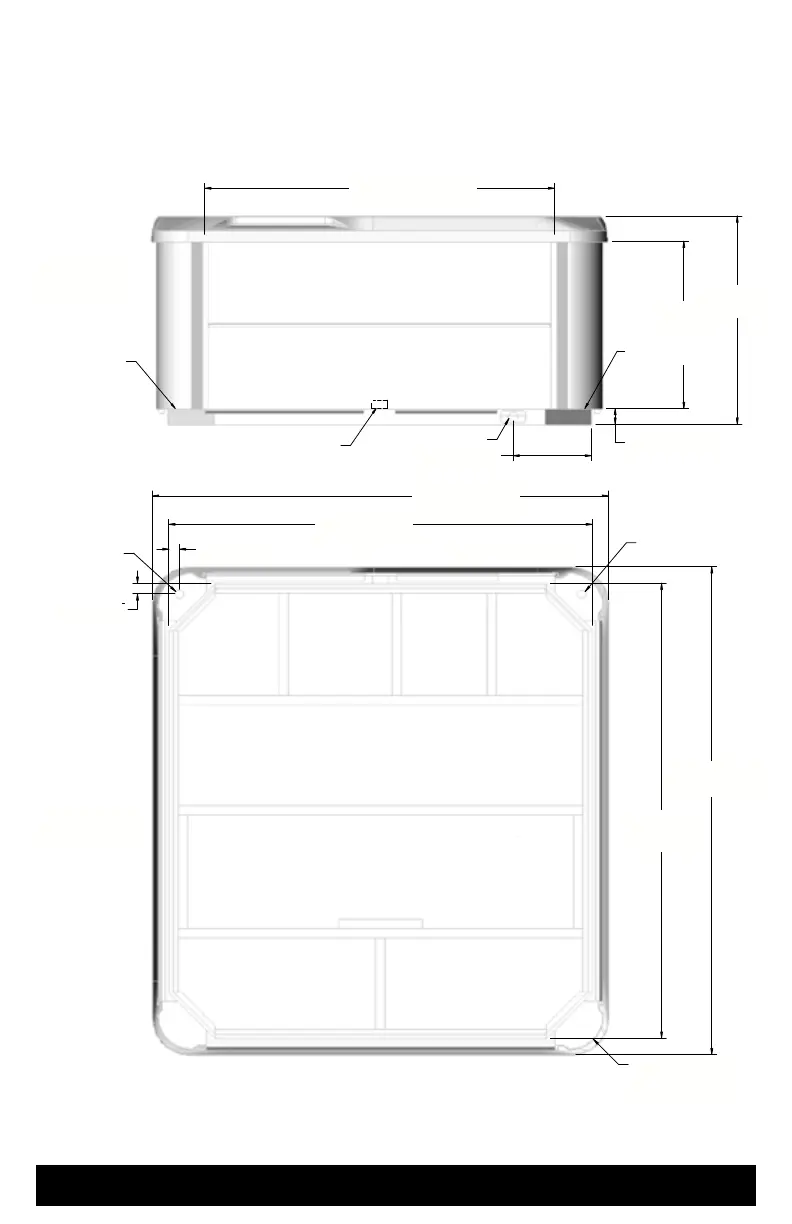

Dimensions
NOTE: All dimensions are approximate; measure your spa before making critical design or
pathway decisions. Configuration and location may change without notice.
NOTE: WATKINS WELLNESS recommends that the SX be installed on a minimum 4” (10.2 cm) thick reinforced
concrete pad or structurally sound deck able to support the “dead weight” found in the spa specification chart.
IMPORTANT: THE SX MUST NOT BE SHIMMED IN ANY MANNER.
FRONT
VIEW
BOTTOM
VIEW
ELECTRICAL
CUTOUT
ELECTRICAL
CUTOUT
ELECTRICAL
CUTOUT
ELECTRICAL
CUTOUT
ELECTRICAL
CUTOUT
DRAIN
12.5" (31.6 cm)
DOOR PANEL
55.5" (141 cm)
26.5"
(67.3 cm)
33"
(83.8 cm)
2.5" (6.4 cm)
DOOR SIDE
RADIUS
5.5" (13.8 cm)
1.70" (4.3 cm)
1.70" (4.3 cm)
OVERALL
72" (183.7 cm)
PEDESTAL
67" (170 cm)
OVERALL
77" (196 cm)
PEDESTAL
72" (183 cm)
AIR VENTS BELOW DOOR
DO NOT BLOCK
