Spa Specifications & Illustration Page 11
RELAY (MODEL REL)
HORIZONTAL DIMENSIONS: ............. 84” (213 cm.) square
HEIGHT (without cover): .................. 36.75” (93 cm.)
EFFECTIVE FILTER AREA: ................65 sq. ft. (6.0 m²)
HEATER: .............................. 4000 watts (4.0 kW)
WATER (capacity): ...................... 360 gallons (1363 liters)
WEIGHT: .............................. 836 lbs. dry (379 kg.), 4888 lbs. filled (2217 kg.)
(Includes weight of water and 6 adults @ 175 lbs./79kg. each)
DEAD WEIGHT (filled): ...................120 lbs. per sq. ft., 586 kg. per m²
ELECTRICAL REQUIREMENTS: .......... 230 volt 50 amp single phase G.F.C.I. circuit
NOTE: ................................ All wiring must be performed by a licensed electrician
CERTIFICATIONS: ...................... ETL Listed

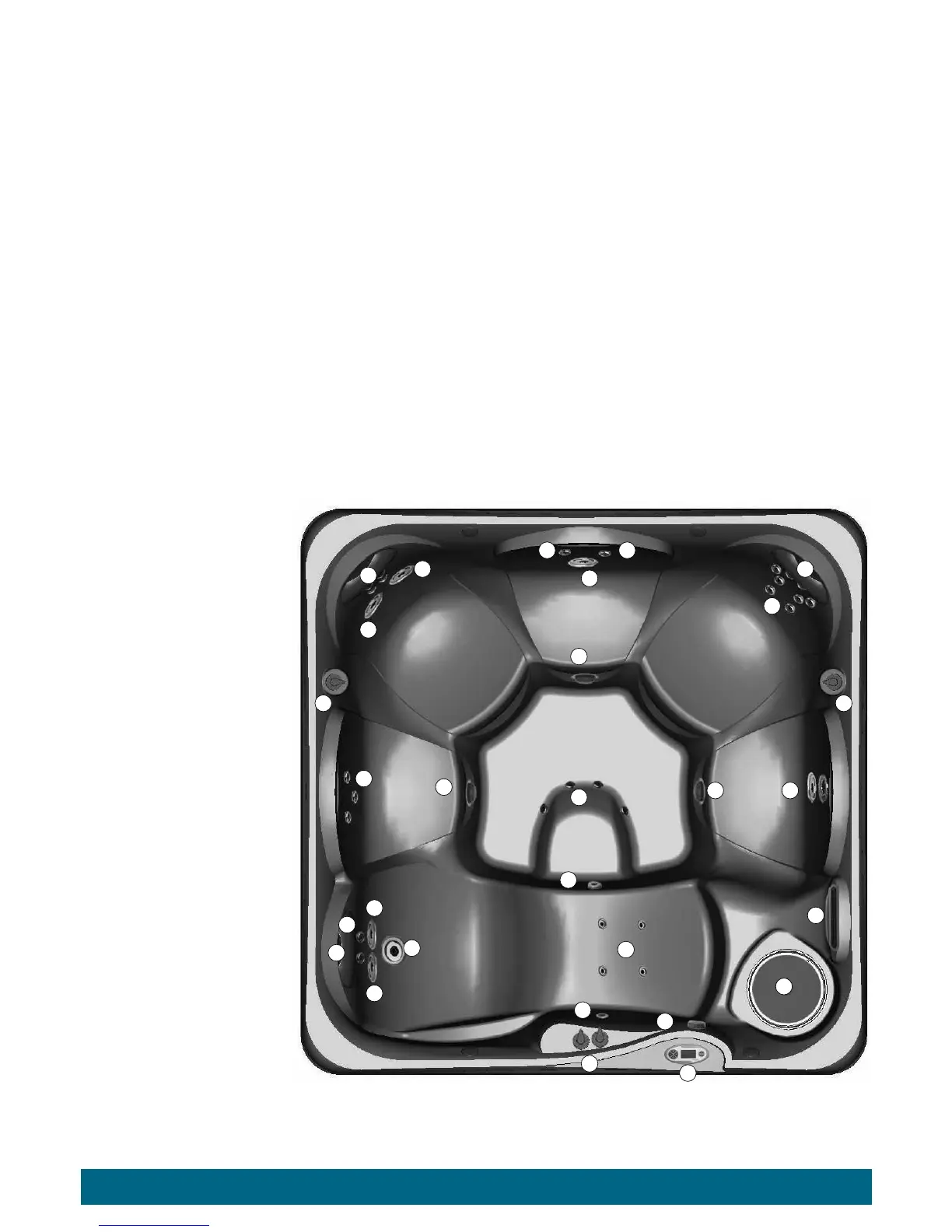

OVERHEAD VIEW
A. Air Control Lever
B. Control Panel
C. Filter Compartment Cover*
D. Temperature Sensor
E. Directional PRECISION
Jets
F. Directional Hydromassage Jet
G Rotary Hydromassage Jet
H. Outlet for Optional Ozone
I. Drain/Suction
J. Pillow
K. Waterfall
L. Waterfall On/Off Valve
* WARNING: DO NOT SIT IN THE
FILTER COMPARTMENT AREA
"THIS IS NOT A SEAT"!!!
Sitting in this area can cause:
● Restriction of filter pump
suction/vacuum.
● Damage to components.
Both can result in bodily harm.
Should damage occur to components
in this area, replace immediately!
AA
A
B
C
D
E
F
H
G
I
J
F
F
E
E
E
EE
E
F
I
I
K
G
G
J
J
L
