Controls and Equipment
LIMELIGHT
™
GLOW
™
MODEL (GLW)

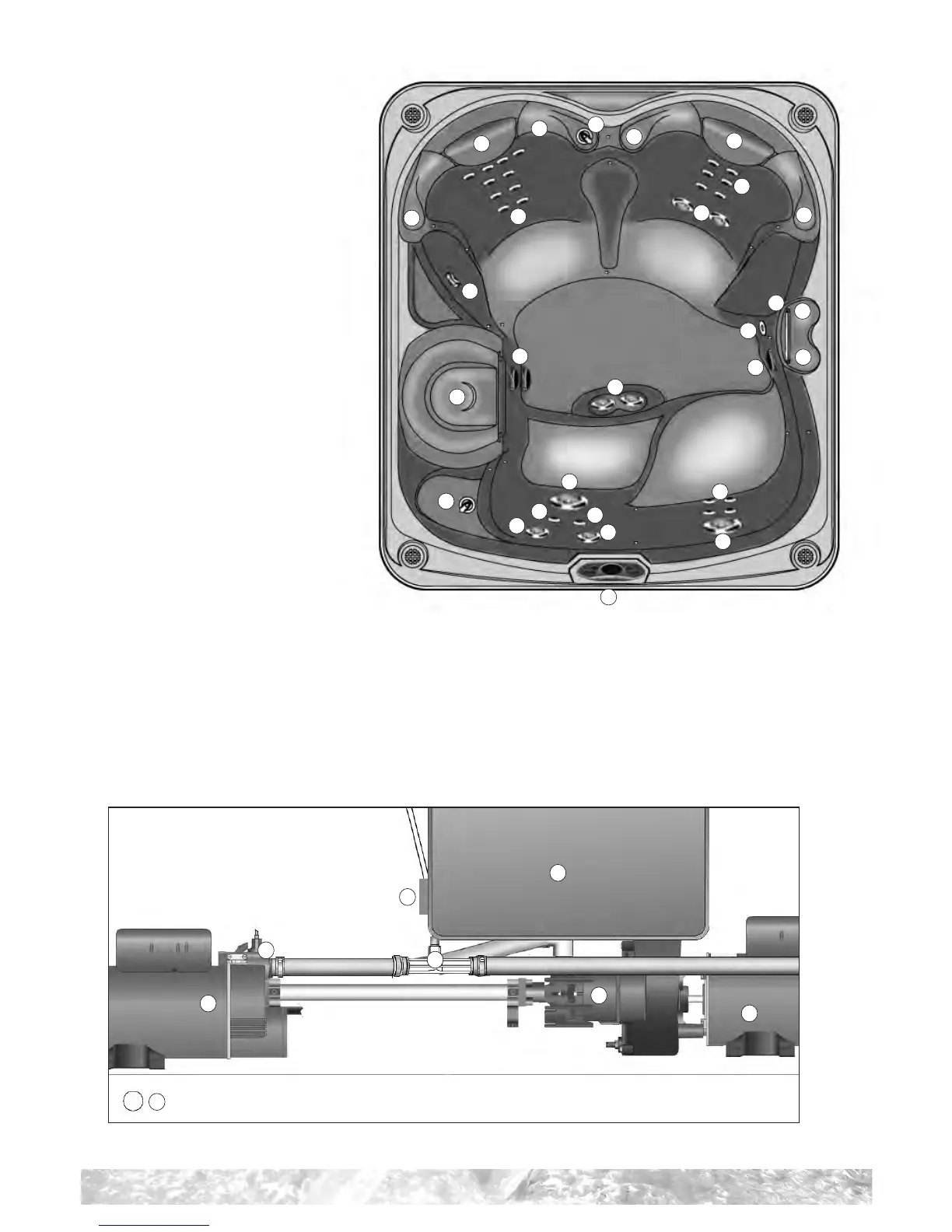

OVERHEAD VIEWS
A. Combination XL Hydromassage
jets
B. Combination Hydromassage jets
C. Direct Hydromassage jets
D. Secondary suction
E. Hot tub pillow
F. Filter compartment
G. Control panel
H. Air Lever for Direct
Hydromassage jets
I. Cup holder
J. Water Feature lever
K. Water Feature
L. Heater jet / Ozone (optional
accessory)
B
A
A
E
F
G
K
I
H
D
C
C
E
B
D
H
L
C
C
C
J
J
B
B
I
I
I
I
EQUIPMENT COMPARTMENT
1. Silent Flo 5000
®
Circulation pump
2. Wavemaster
®
jet pump
3. No-Fault
®
heater
4. IQ 2020
®
hot tub control box
5. Drain valve
6. Ozone injector (optional accessory)
7. Bonding terminal
2
3
4
7
6
5
1
2
