HotSpring Sovereign Pre-Delivery Instructions

x Page x x
84" (213 cm)
23.5" (59.9 cm)16" (40.6 cm)21" (53.3 cm)
65" (165 cm)
26" (66.0 cm)
JTNE
11"
(27.9 cm)
6 " (15.2 cm)
LX=29 " (73.6 cm)
LX=33" (83.8 cm)
78" (198.1 cm)
48" (121.9 cm)
36" (91.4 cm)
6" (15.2 cm)
15"
(38 cm)
32.5" (82.5 cm)
25 " (63.5 cm)
29" (73.5 cm)
84" (213 cm)
23.5" (59.9 cm)16" (40.6 cm)21" (53.3 cm)
65" (165 cm)
26" (66.0 cm)
JTNE
11"
(27.9 cm)
6 " (15.2 cm)
LX=29 " (73.6 cm)
LX=33" (83.8 cm)
78" (198.1 cm)
48" (121.9 cm)
36" (91.4 cm)
6" (15.2 cm)
15"
(38 cm)
32.5" (82.5 cm)
25 " (63.5 cm)
29" (73.5 cm)
ELECTRICAL
CONNECTION
2.5" (6.4 cm) Height
from ground)

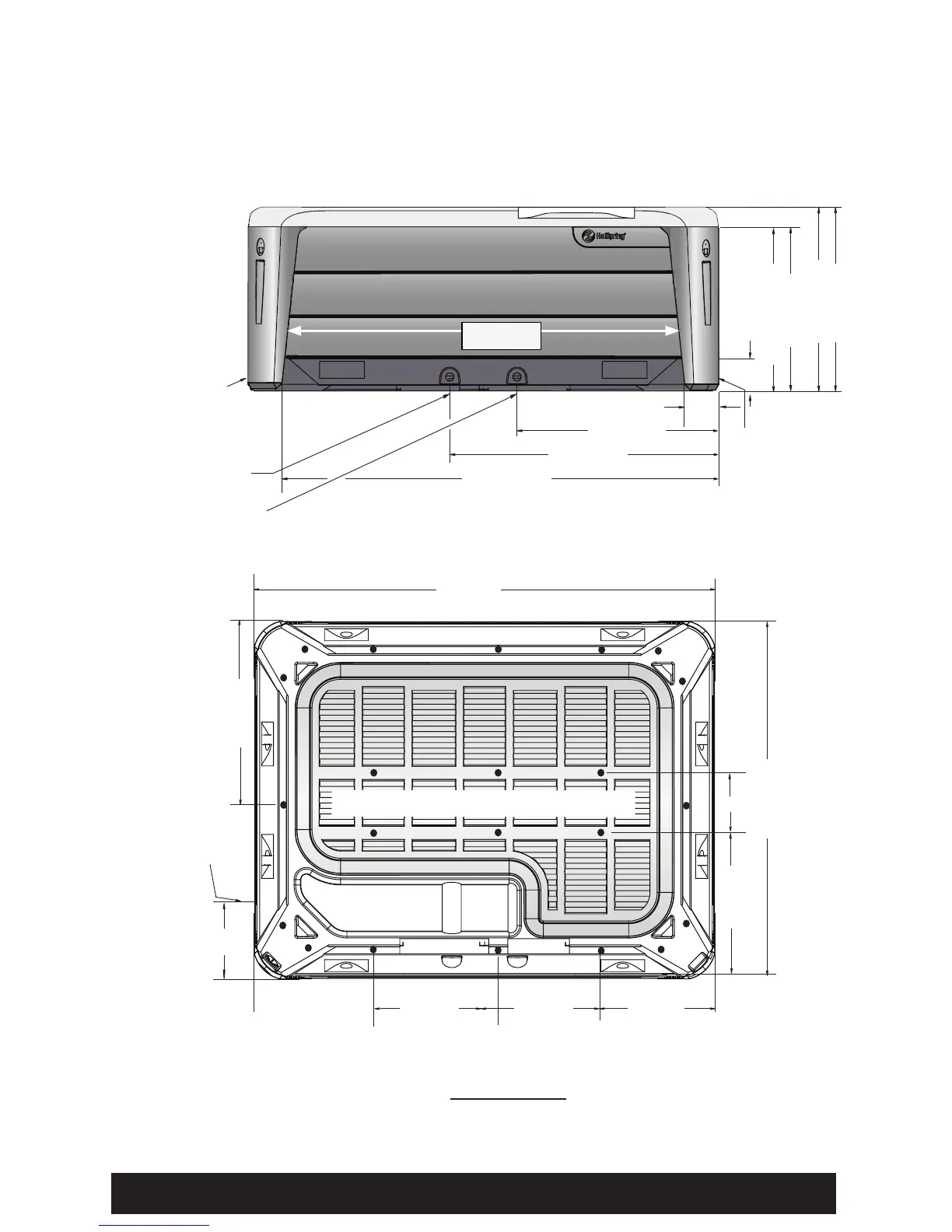

JETSETTER LX & JETSETTER
Dimensions
NOTE: All dimensions are approximate; measure your spa
before making critical design or pathway decisions.
(Front view)
(Bottom view)
DOOR SIDE
•
22 leveling points (place shims at illustrated locations ).
DOOR
MAIN DRAIN
SECONDARY DRAIN
UPSIDE DOWN VIEW OF SPA
ELECTRICAL
CONNECTION
2.5" (6.4 cm)
Height from
ground)
Electrical Connection
(Both sides)
Page 11 Pre-Delivery Instructions

HotSpring Sovereign Specifications

General

Seating Capacity	6 adults
Voltage	230V
Amperage	50A
Control System	IQ 2020
Filtration System	Tri-X
Insulation	Full Foam
Pump Motors	Wavemaster® 9000
Water Care System	FreshWater® Salt System
