HotSpring Sovereign Pre-Delivery Instructions

x Page x x
74" (188.0 cm)
49" (124.5 cm)
7 " (17.8 cm)
32 " (81.3 cm)
36" (91.4 cm)
87" (220 cm)
14"
(35.6 cm)
26.75 " (67.9 cm)
11"
(27.9 cm)
Aria
37" (94.0 cm)
6" (15.2 cm)
43" (109.2 cm)
64.5" (163.8 cm)
21.5" (54.6 cm)
87.0" (220 cm)
15"
(38 cm)
MAIN DRAIN
SECONDARY DRAIN
UPSIDE DOWN VIEW OF SPA

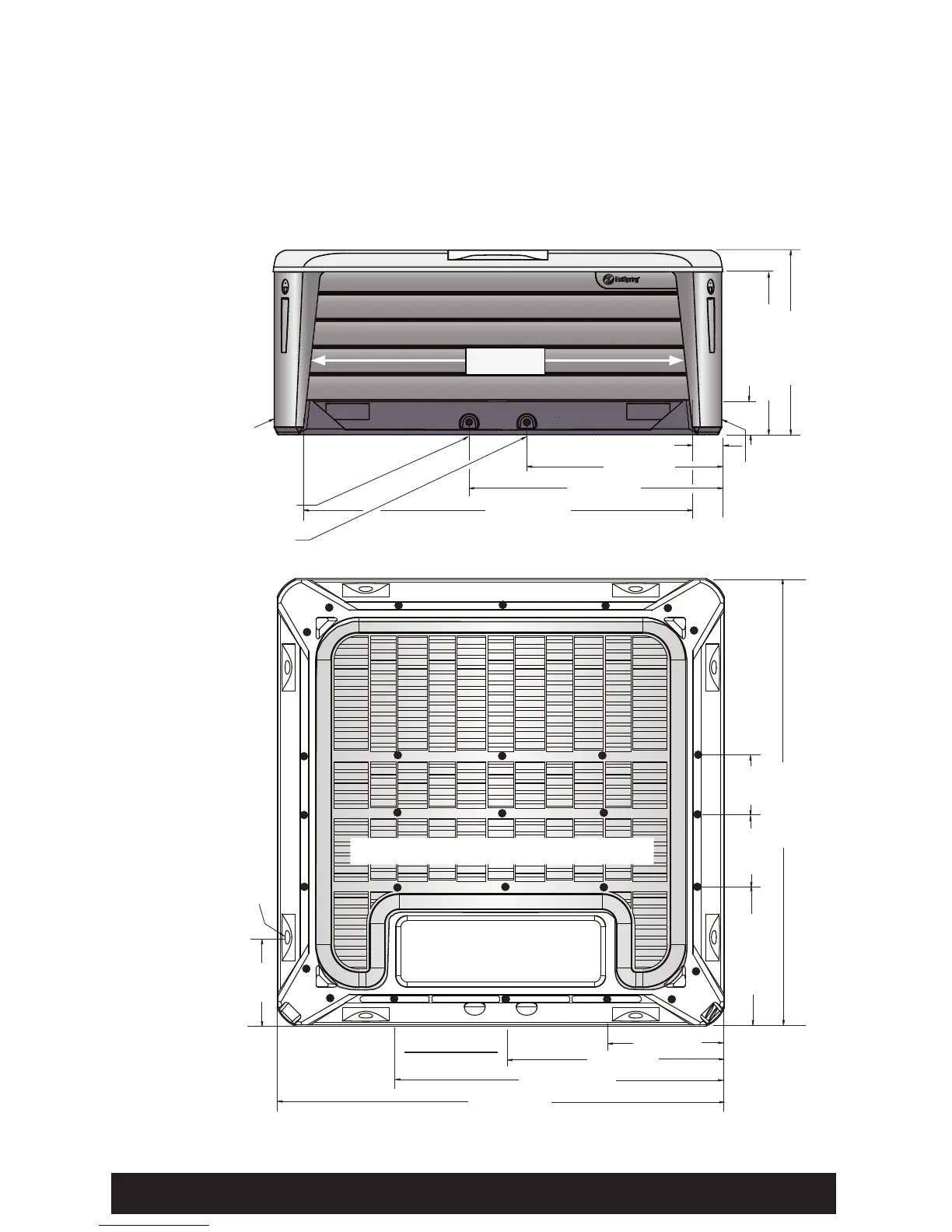

VANGUARD & ARIA
Dimensions
NOTE: All dimensions are approximate; measure your spa
before making critical design or pathway decisions.
(Bottom view)
ELECTRICAL
CONNECTION
2.5" (6.4 cm) Height
from ground)
ELECTRICAL
CONNECTION
2.5" (6.4 cm)
Height from
ground)
(Front view)
Electrical Connection
(Both sides)
•
29 leveling points (place shims at illustrated locations).
Page 7 Pre-Delivery Instructions
DOOR
DOOR SIDE

HotSpring Sovereign Specifications

General

Seating Capacity	6 adults
Voltage	230V
Amperage	50A
Control System	IQ 2020
Filtration System	Tri-X
Insulation	Full Foam
Pump Motors	Wavemaster® 9000
Water Care System	FreshWater® Salt System
