HotSpring Vanguard User Manual

Page 18
Controls and Equipment
ACCOLADE
™
(MODEL AC)

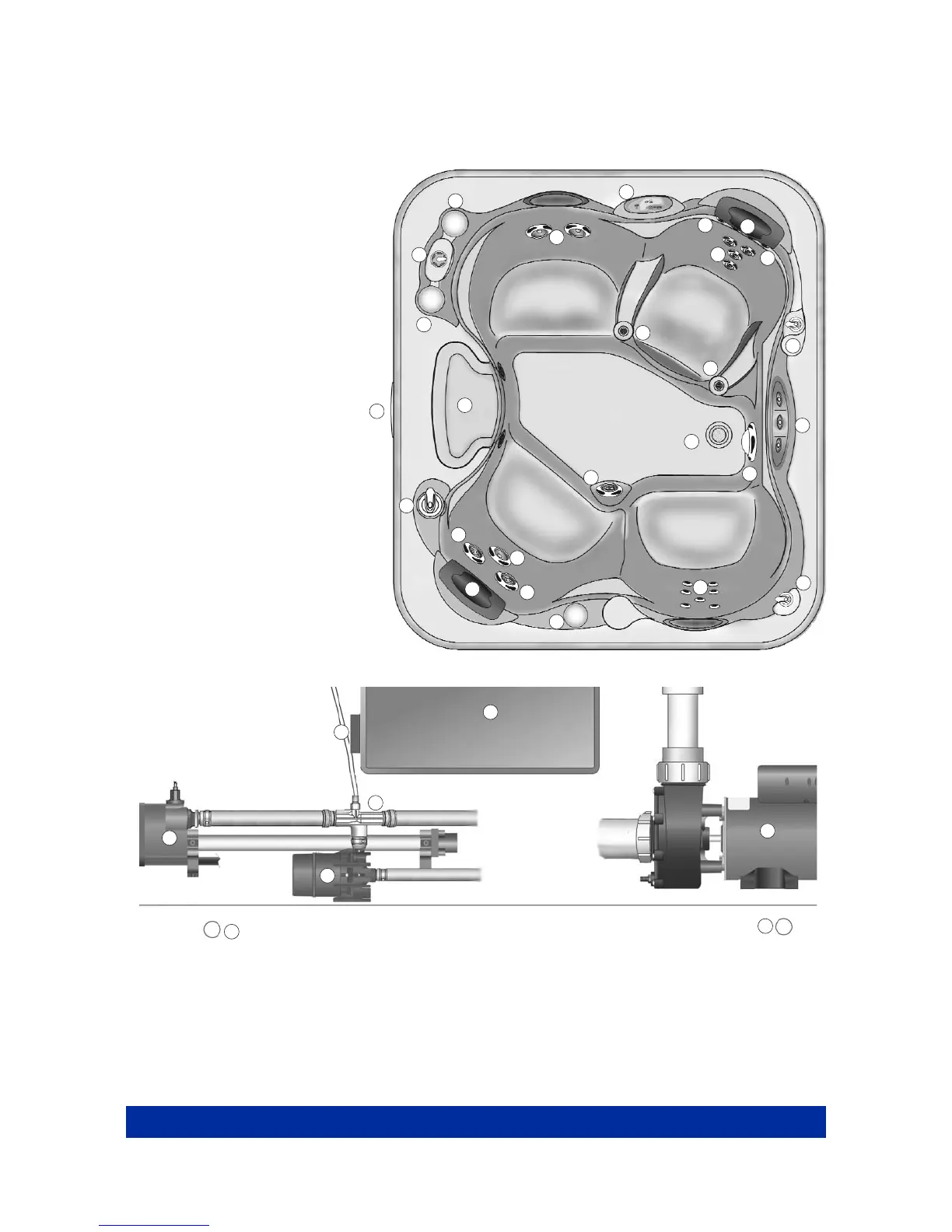

OVERHEAD VIEW
A. SmartJet
®
system lever
B. Precision
®
jets Comfort
Control system lever
C. Pillow
D. Hydromassage jet with
directional nozzle
E. Hydromassage jet with rotary
nozzle
F. Precision jets
G. HydroStream
™
jet
H. Soothing Seven
®
jets
I. JetStream
®
jet
J. Heater return and spa drain
K. Light lens
L. Filter compartment
M. Main control panel
N. Auxiliary control panel
O. Cup holder
P. Water feature
Q. Water feature lever
1. Wavemaster
®
jet pump
2. No-Fault
®
heater
3. Silent Flo 5000
®
circulation pump
4. IQ 2020
™
control box
5. Ozone injector (optional accessory)
6. Main drain valve
7. Secondary drain
8. Bonding terminal
EQUIPMENT COMPARTMENT
A
B
B
C
C
D
E
E
F
G
H
I
J
K
L
M
N
O
O
O
P
Q
F
F
F
F
1
2
3
4
5
6
7
8
