PRESSURE WASHER
OPERATOR’S MANUAL
COMPONENT IDENTIFICATION
O
F
F
F
°
1
0
-
0
2
0
3
3
2
0
0
1
6
5
1
3
0
9
5
2
3
5
2
7
0
3
0
0
T
E
M
P
E
R
A
T
U
R
E
B
U
R
N
E
R
R
E
S
E
T
P
U
M
P
O
N
O
F
F
Pump — Delivers a specific gpm to the high pressure
nozzle which develops pressure.
Spray Gun — Controls the application of water and
detergent onto cleaning surface with trigger device.
Includes safety latch.
Detergent Valve — Allows you to siphon and mix
detergents.
Wand — Must be connected to the spray gun.
High Pressure Hose — Connect one end to water
pump high pressure discharge nipple and the other
end to spray gun.
Rupture Disk — Secondary pressure release in the
unlikely event the unloader valve fails.
Unloader Valve — Safety device which, when the
spray gun closes, prevents over pressurization.
Garden Hose
(Not Included)

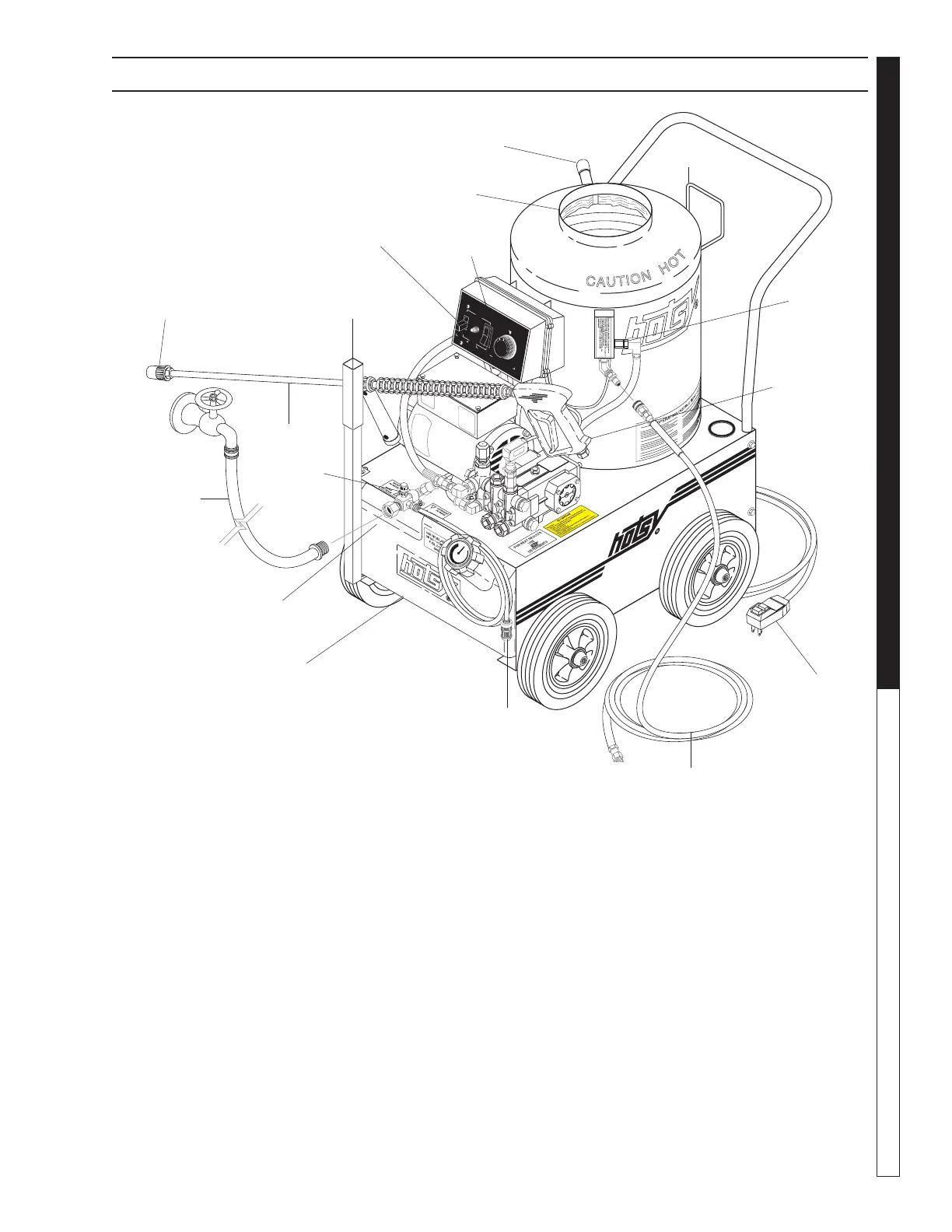

Adjustable High
Pressure Nozzle
Wand
Burner Switch
Backflow
Preventer
Fuel Tank
Detergent
Inlet Line
High
Pressure
Hose
Power Cord
w/GFCI
Trigger Gun
Hose Hanger
Rupture
Disk
Pump Switch
Hose Reel
Mount
Burner
Exhaust
Power Cord
Hanger
Detergent
Valve
