Hougen HMD900 - Page 7

7
English
HMD900 Breakdown
Item Part # Description Qty
1 09381 Motor Slide Assembly - 3 speed 1
2 09400 Brass Gib - Right Hand 1
3 09399 Brass Gib - Left Hand 1
4 09403 Steel Gib 1
5 09392 Spring-Comp 1
6 09366 Spring Seat 1
7 40256 SCR-SOC Set 5/16-18 x 3/8 Oval 1
8 40222 SCR-SOC Set 7/16-14 x .305 2
9 09365 Arbor 1
14 05988 SCR-FHSC #1-32 x 1/2 2
15 09402 Stop Plate 1
16 09391 Face Plate/Control Asm 1
19 09393 Feed Hub 1
20 40058 Washer-Flat 3/8 Nom 1
21 01960 SCR-SHC 3/8-16 x 1-3/4 1
22 40237 SCR-SS 1/4-28 x 1/2 5
24 40077 SCR-SHC 1/4-20 x 1 1
25 90028 Washer- Helical Lock 1/4” 3
33 10553 SCR-SHC 1/4-20 x 7/8 2
34 41044 SCR-BHC 10-32 x 3/8 4
Accessories Included
17 04532 Feed Handle Knobs 3
18 04558 Feed Handles 3
10730 Safety Chain 3/16 GR 30 1
09405 Hex Key Short Wrench 7/32 1
09384 Housing Assembly
Item Part # Description Qty
23 09384 Drill Housing 1
10 02385 SCR-BHC 6-32 x 1/4 3
11 09144 Guard 1
09383 Feed Gear (not shown) 1
40231 Bushing Bronze (not shown) 2
09401 Label - Housing (not shown) 1
09404 Label - Warning (not shown) 1
12 51042 SCR-SHC 1/4-20 x 3/8 1
13 90065 Washer-1/4 Ext. Tooth Lock 1
1212
09370 Magnet Assembly
Item
Part # Description Qty
26 10971 SCR-SHC 1/4-20 x 1/2 2
27 04909 Bracket - Safety Switch 1
28 09385 Magnet Switch Assembly 1
29 17271 Spring-Comp 1
30 10972 SCR-BHC 6-32 x 7/8 2
31 04910 Plunger Assembly 1
32 09369 Magnet Assembly 1
09193 Motor Slide Assembly
Item Part # Description Qty
1 09374 Motor Complete Assembly 1
2 40038 SCR-SHC 10-32 x 5/8 2
3 10560 Washer #10 Ext. Tooth Lock 2
4 09379 Dovetail Slide 1
5 09378 Rack Gear 1
6 90028 Washer-Helical Lock 1/4 4
7 10624 SCR-SHC 1/4-20 x 3/4 4
8 90052 Washer-Lock #6 External Tooth 1
9 02385 SCR-BHC 6-32 x 1/4 1
10 41044 SCR-BHC 10-32 x 3/8 5
11 09143 Cover 1
12 09380 Slide Plate 1
13 09398 Spring 1
14 51033 Strain Relief 1
15 09395 SCR-SHSLD 1/4 x 1/8 #10-32 2
16 09397 SCR-SHSLD 5/32 x 3/16 #6-32 1
17 09396 SCR-SHSLD 5/32 x 5/16 #6-32 1
18 09150 Motor Cord Assy - Coil 1

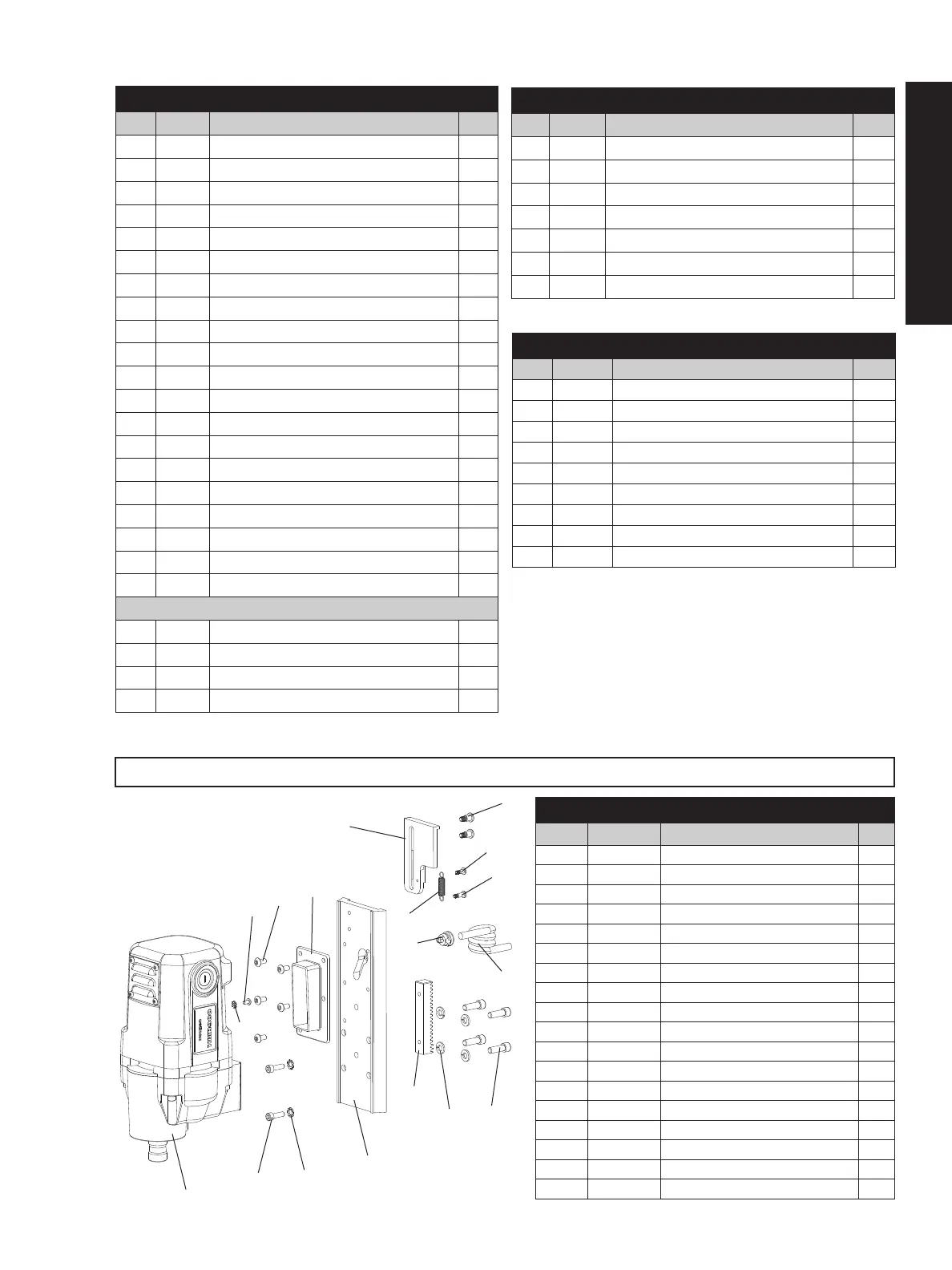

MOTOR SLIDE ASSEMBLY BREAKDOWN
1
2
3
4
5
6
7
8
9
10
11
12
15
13
16
14
18
17
