Hougen HMD900 - Safety Switch

09391 Panel Assembly
Item Part # Description Qty
1 09386 Faceplate 1
2 09394 ON/OFF Switch 1
3 04614 Rocker Switch, Double Pole 1
4 90571 Power Cord Assembly 1
5 17032 SCR-BHC 6-32 x 1/2 1
6 01835 Nut- Hex Nylon 1
7 09388 Capacitor Assembly 1
8 09387 Rectier Assembly 1
9 09389 Jumper 1
10 09390 Jumper 1
8

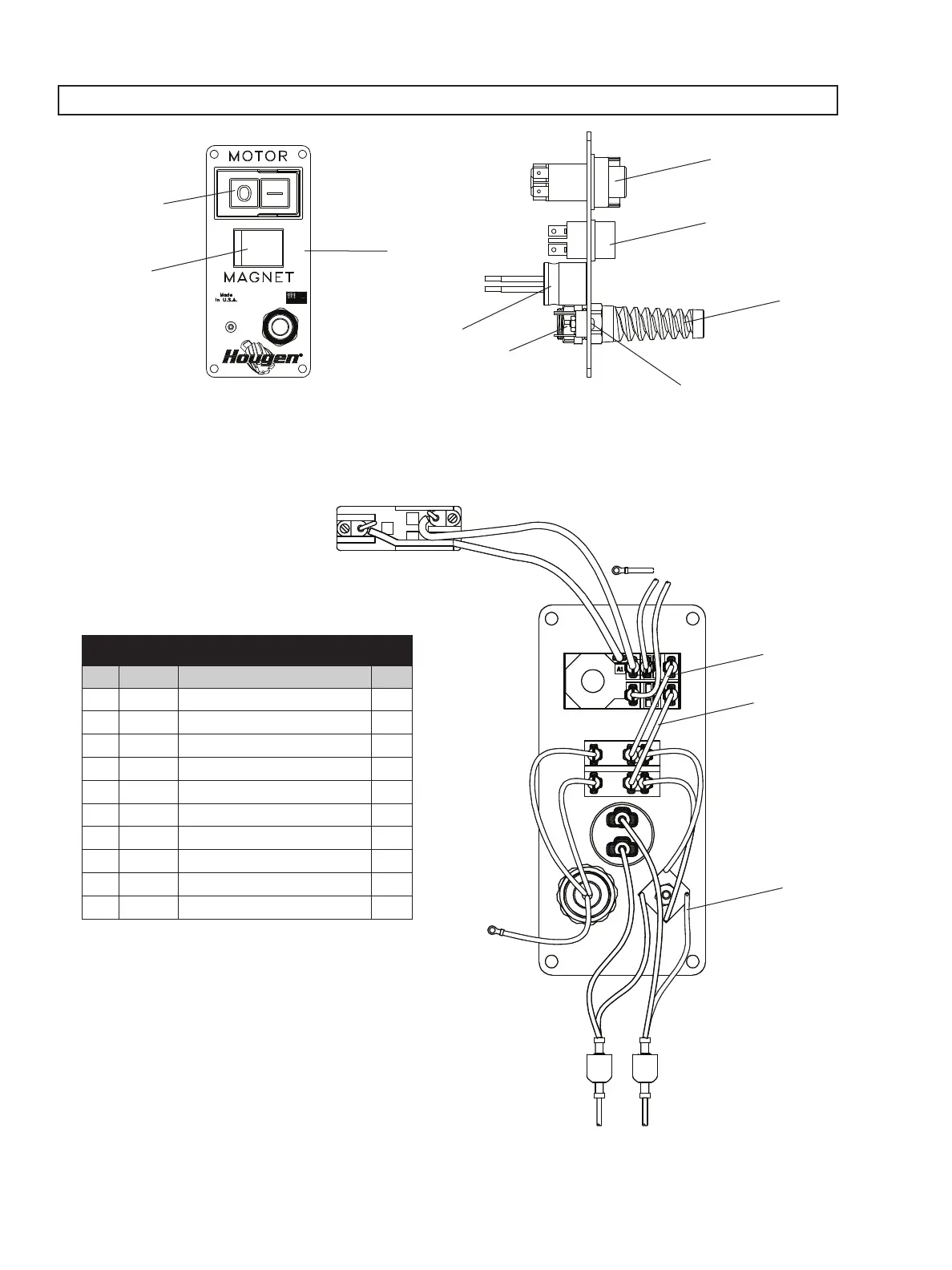

CONTROL PANEL BREAKDOWN & WIRING
2
3
4
5
6
7
1
2
3
Safety Switch
to Motor
to Magnet
9
10
8
