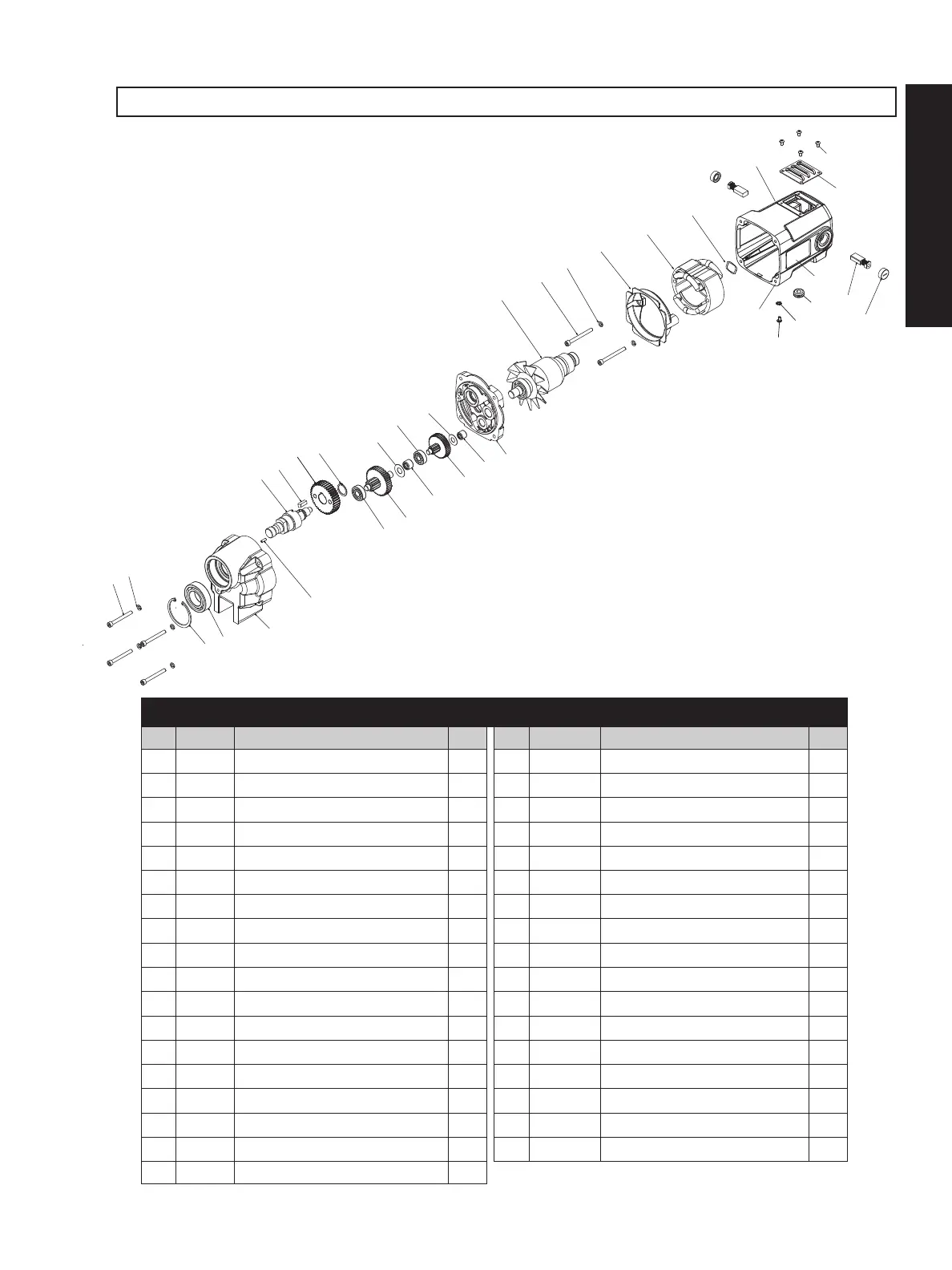

MOTOR PARTS DIAGRAM
09134 Motor Assembly
Item Part # Description Qty Item Part # Description Qty
1 08234 SCR SHC #10-32 X 1-5/8 LG 4 19 07857 Gear Box Cover 1
2 50038 Washer - Lock Helical #10 4 20 17630 Armature 1
3 07860 Retaining Ring 1 21 07849 SCR SHC #10-32 x 2 LG 2
4 40274 Bearing 25mm x 47mm x 12mm 1 22 50038 Washer - Lock Helical #10 2
5 08004 Gear Box Housing 1 23 07846 Bafe 1
6 01169 Pin - Dowel 1/8 x 3/8 1 24
17628 Field 1
7 09371 Spindle - Motor Drive 1 25 08000 Washer - Spring 1
8 17611 Key 1 26 09136 Motor / Brush Holder 1
9 17609 Spur Gear #6 1 27 17621 Carbon Brush 2
10 17626 Retainer Ring 1 28 17622 Cap Brush Holder 2
11 17603 Bearing 24mm x 9mm x 7mm 1 30 07848 Cover - Brush Access 1
12 17608 Gear Assy - Second Intermediate 1 31 02385 SCR BHC #6-32 x 1/4 4
13 17613 Washer, Flat 10mm 1 32 09375 Motor Label 1
14 17660 Needle Bearing 1 33 07841 Specs Label 1
15 17602 Bearing 22mm x 8mm x 7mm 2 34 09151 Grommet 1
16 17607 Gear Assy - First Intermediate 1 35 90052 Washer-Lock #6 1
17 17610 Washer - Flat 8mm 1 36 02385 SCR BHC 6-32 x 1/4 1
18 17659 Needle Bearing 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
34
30
31
32
33
35
36
