E-series Axial Flow Cooling Fans
Receiving and unloading
Upon unloading this equipment, inspect it for
damage. If damage occurred, file a claim im-
mediately against the carrier and mark the bill
of lading accordingly.
Superficial transport damages like scratches
or small holes may be repaired with touch-up
material (PU filler, e.g. Sikaflex 252).
All consignments are accompanied by a
packing list with the following data:
Order number of the Customer and of
Howden.
Impeller type (fan identification code)
Parts supplied by Howden.
The delivered goods shall be checked upon
arrival for full compliance with the order
and/or the parts count and description stated
on the packing list.
Shortages should be reported to your How-
den Contract Engineer within 2 weeks from
receipt of shipment at destination.
Handling
Fan blades of E-series impellers larger than
26 ft. are packed in so-called “bunk beds” or
specially developed transport frames.

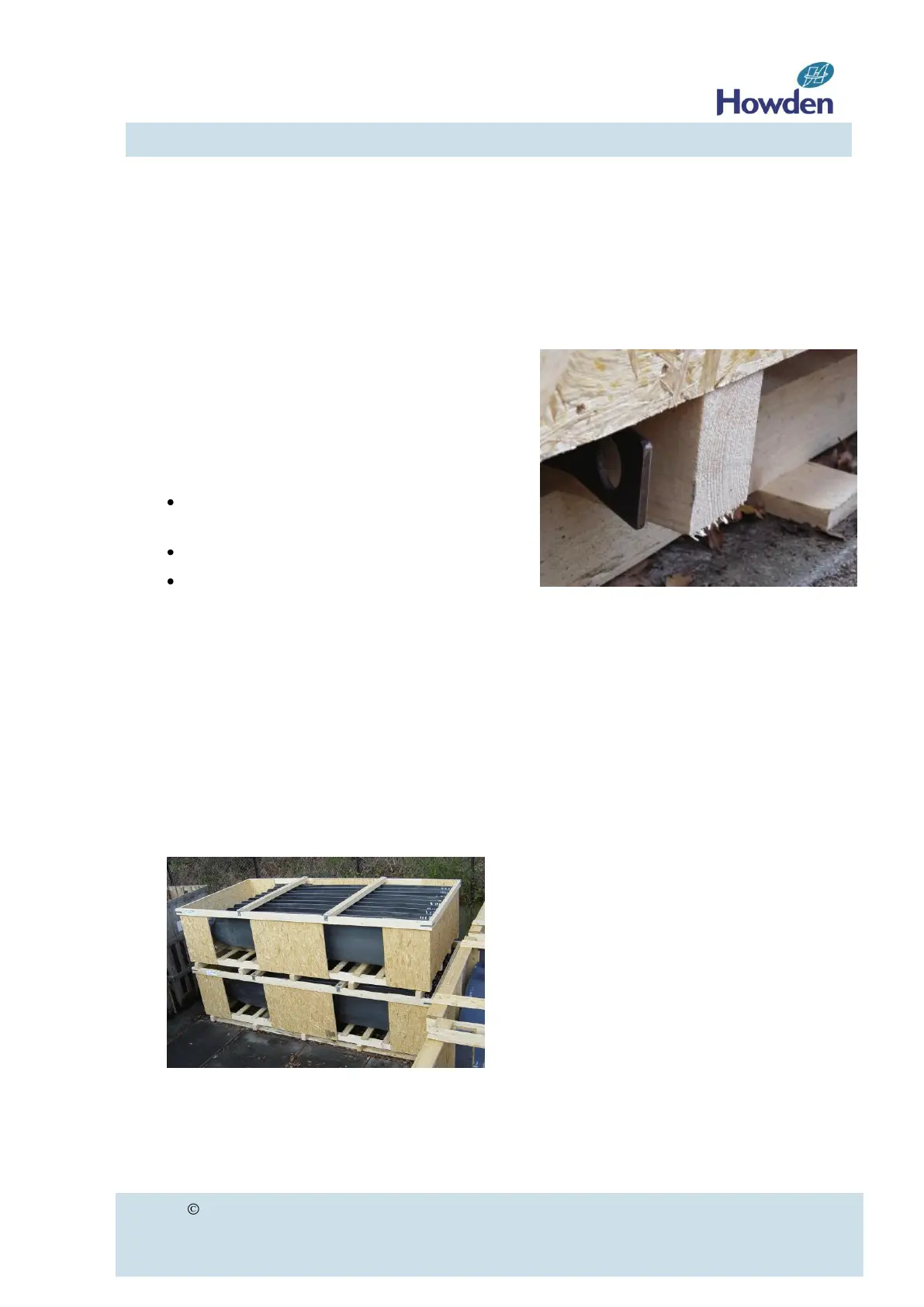

Figure 1
The width of these crates suits standard con-
tainer dimensions. Fan blades that will be
transported by container sea-freight, are
equipped with and hoist eyes (see figure 2),
to allow easy container loading / unloading.
Through these hoist eyes, one can pull the
bunk beds from the container without dam-
aging the fan blades or the crates.
Figure 2
The fan blades can be lifted from the packing
by placing a single sling around the blade.
Position the sling as such that the blade tip is
somewhat hanging down which makes it
easier to move the blades around.
Fan blades of impellers smaller than 26 ft.,
are packed in strong wooden cases or crates.
Storage
If not installed immediately, it is recom-
mended to store the impeller in a dry and
shaded area.
For long-term storage (in excess of 6 months)
it is necessary to check the condition of the
corrosion protection agent on all machined
surfaces.
Reapply or repair where necessary, using an
acid-free corrosion protection agent (e.g.
Esso Rust ban 397 or equivalent).
You may stack the “bunk beds” to a maximum
of 3 high. Do not allow any heavy materials of
any kind to be stored on top of the blades.
