HP
10400A
OPERATING
NOTE
9.
Adjust
pulse
generator
output
for
oscilloscope
display
of
approximately
6
divisions.
10.
Slide
off
probe
chassis
assembly
cover
to
expose
adjustments.
Refer
to
figure
7
for
adjustment
locations.
11.
Set
high-frequency
compensation
resistor
R1
to
minimum
resistance
(completely
counterclockwise).
12.
Set
high-frequency
compensation
resistor
R2
to
minimum
resistance
(completely
clockwise).

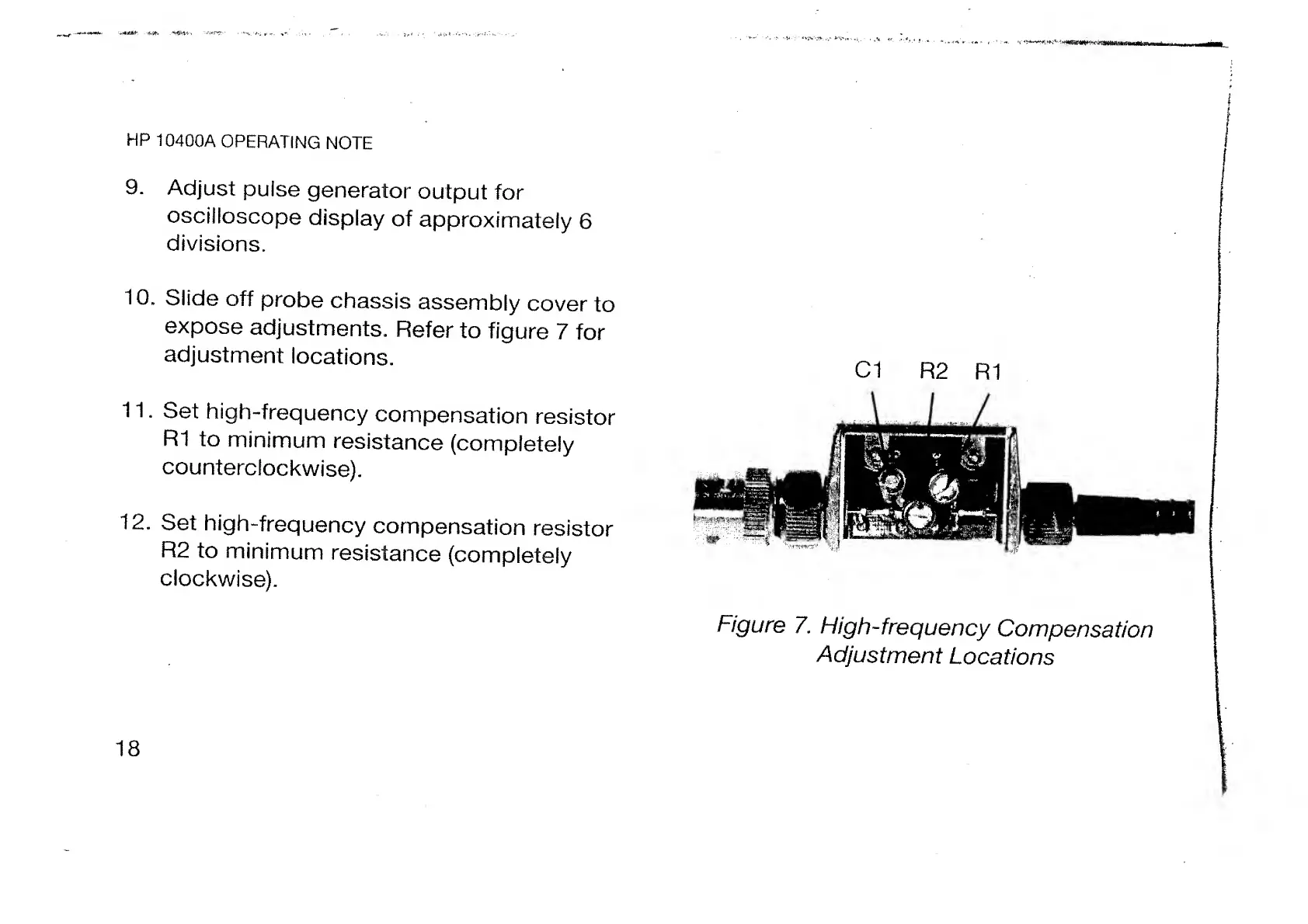

Figure
7.
High-frequency
Compensation
Adjustment
Locations
18
